Toyota Corolla Cross: Removal

Toyota Corolla Cross (2022-2025) Service Manual / Vehicle Interior / Interior Panels / Trim / Front Console Box / Removal

REMOVAL

CAUTION / NOTICE / HINT

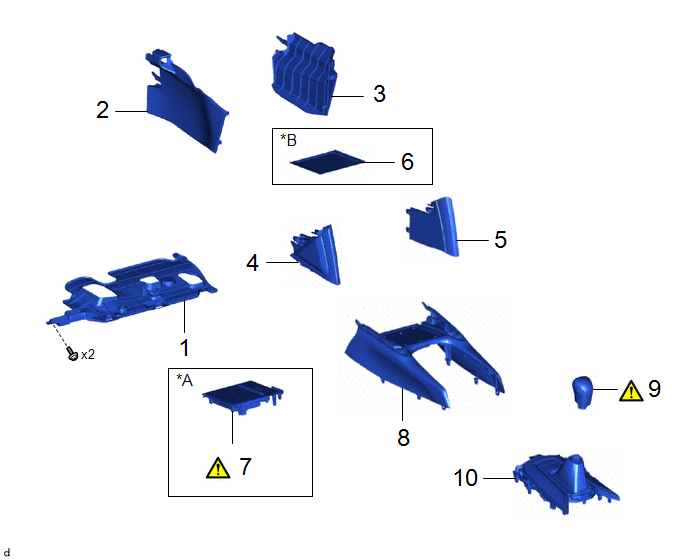

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

55606

-

-

-

2

FRONT NO. 1 CONSOLE BOX INSERT

58816D

-

-

-

3

FRONT NO. 2 CONSOLE BOX INSERT

58817A

-

-

-

4

NO. 2 CONSOLE UPPER PANEL GARNISH

58834B

-

-

-

5

NO. 1 CONSOLE UPPER PANEL GARNISH

58833B

-

-

-

6

NO. 2 BOX BOTTOM MAT

58917

-

-

-

7

MOBILE WIRELESS CHARGER CRADLE ASSEMBLY

-

-

-

8

FRONT CONSOLE UPPER PANEL GARNISH

58831A

-

-

-

9

SHIFT LEVER KNOB SUB-ASSEMBLY

33504F

-

-

10

POSITION INDICATOR HOUSING ASSEMBLY

35970F

-

-

-

*A

w/ Wireless Charger

*B

w/o Wireless Charger

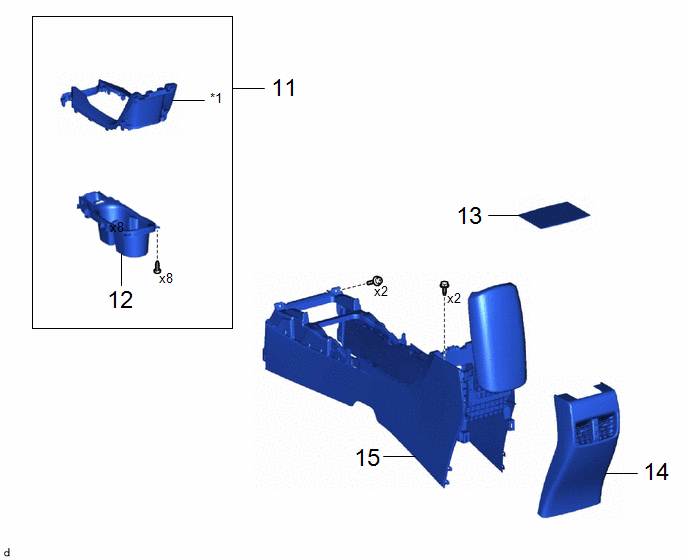

Procedure

Part Name Code

11

CONSOLE CUP HOLDER BOX SUB-ASSEMBLY

-

-

-

-

12

CONSOLE BOX CUP HOLDER ASSEMBLY

55620F

-

-

-

13

CONSOLE BOX CARPET

58815C

-

-

-

14

CONSOLE REAR END PANEL SUB-ASSEMBLY

-

-

-

-

15

CONSOLE BOX ASSEMBLY

58810J

-

-

-

*1

UPPER REAR CONSOLE PANEL

-

-

PROCEDURE

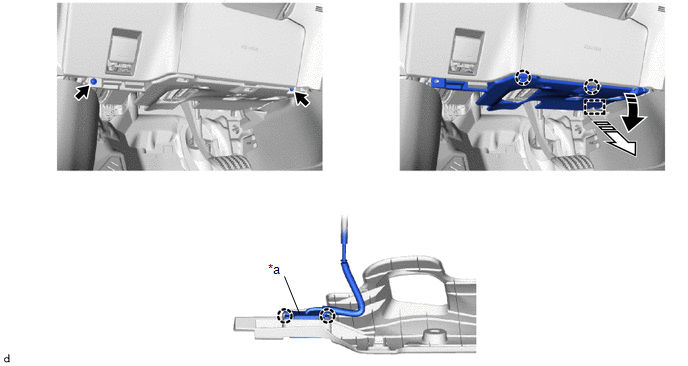

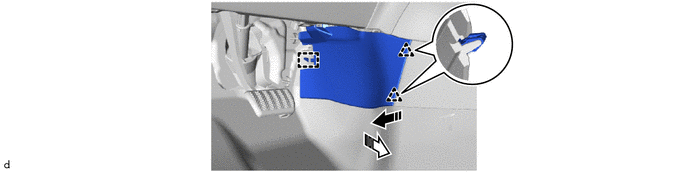

1. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

*a

DLC3

-

-

Remove in this Direction (1)

Remove in this Direction (2)

2. REMOVE FRONT NO. 1 CONSOLE BOX INSERT

Remove in this Direction (1)

Remove in this Direction (2)

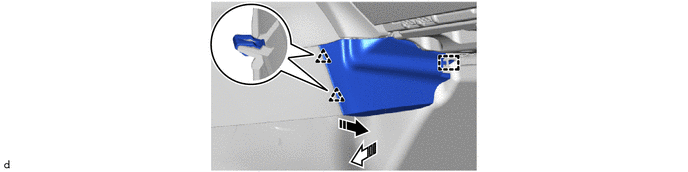

3. REMOVE FRONT NO. 2 CONSOLE BOX INSERT

Remove in this Direction (1)

Remove in this Direction (2)

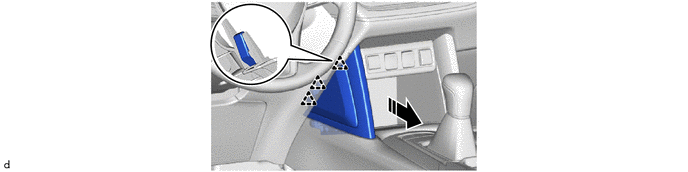

4. REMOVE NO. 2 CONSOLE UPPER PANEL GARNISH

Remove in this Direction

-

-

5. REMOVE NO. 1 CONSOLE UPPER PANEL GARNISH

(a) Use the same procedure as for the No. 2 console upper panel garnish.

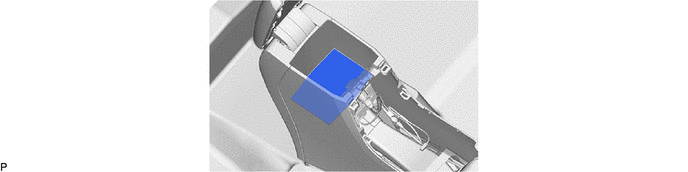

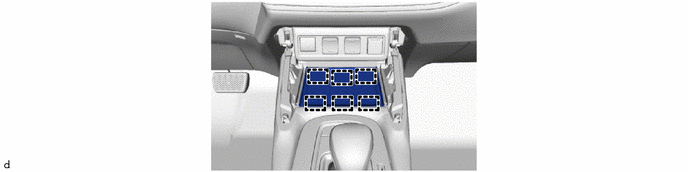

6. REMOVE NO. 2 BOX BOTTOM MAT (w/o Wireless Charger)

7. REMOVE MOBILE WIRELESS CHARGER CRADLE ASSEMBLY (w/ Wireless Charger)

Click here

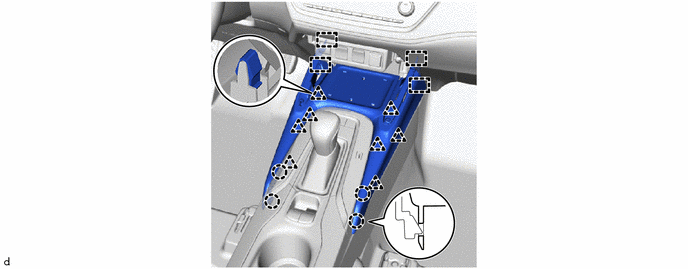

8. REMOVE FRONT CONSOLE UPPER PANEL GARNISH

9. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

  • for CVT:

    Click here

  • for HEV Model:

    Click here

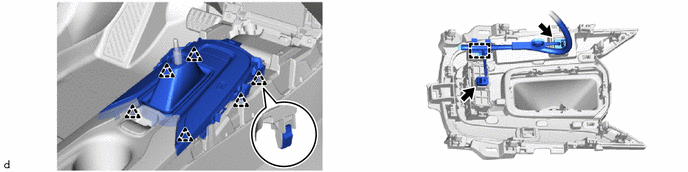

10. REMOVE POSITION INDICATOR HOUSING ASSEMBLY

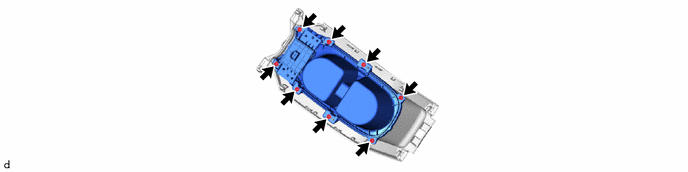

11. REMOVE CONSOLE CUP HOLDER BOX SUB-ASSEMBLY

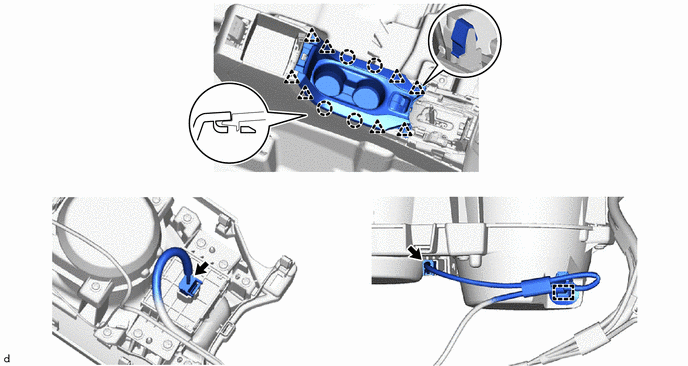

12. REMOVE CONSOLE BOX CUP HOLDER ASSEMBLY

13. REMOVE CONSOLE BOX CARPET

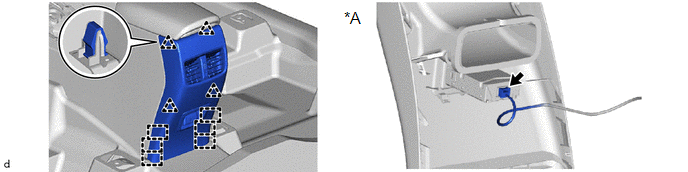

14. REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY

*A

w/ USB Double Charger Socket

-

-

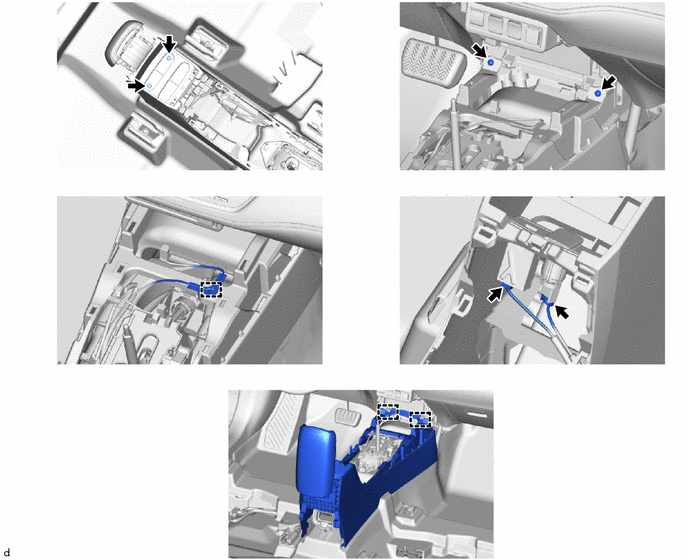

15. REMOVE CONSOLE BOX ASSEMBLY
