Toyota Corolla Cross: Installation
INSTALLATION
CAUTION / NOTICE / HINT
COMPONENTS (INSTALLATION)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|

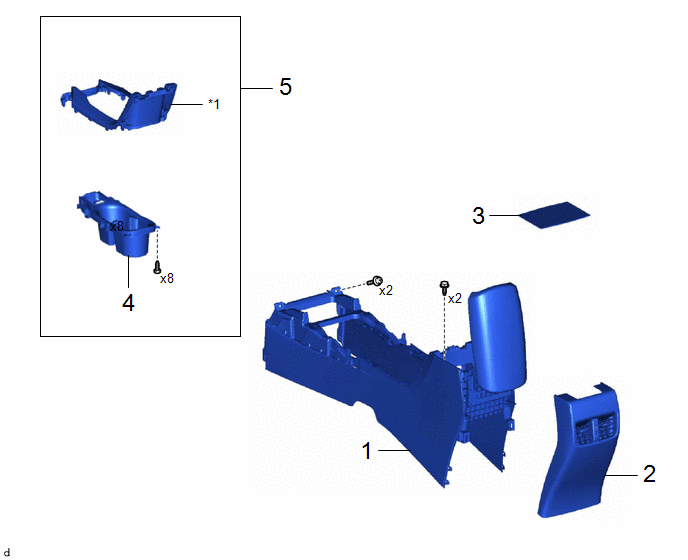

1 | CONSOLE BOX ASSEMBLY |
58810J | - |
- | - |
|
2 | CONSOLE REAR END PANEL SUB-ASSEMBLY |
- | - |
- | - |
|
3 | CONSOLE BOX CARPET |
58815C | - |
- | - |
|
4 | CONSOLE BOX CUP HOLDER ASSEMBLY |
55620F | - |
- | - |
|
5 | CONSOLE CUP HOLDER BOX SUB-ASSEMBLY |
- | - |
- | - |
|
*1 | UPPER REAR CONSOLE PANEL |
- | - |
|
Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
|

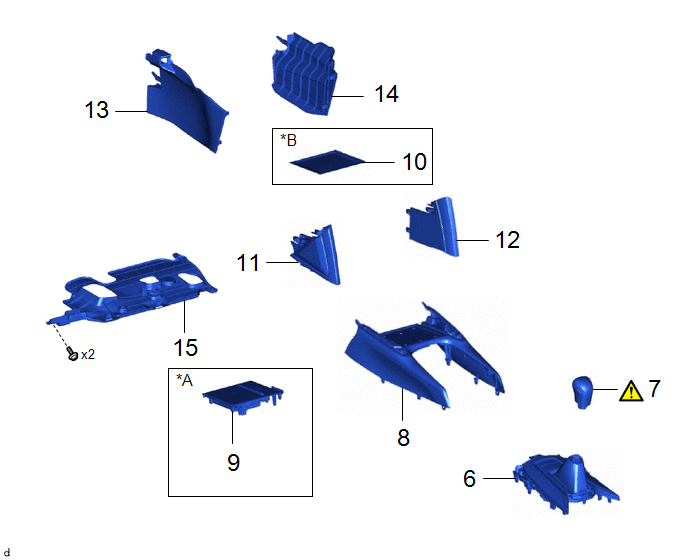

6 | POSITION INDICATOR HOUSING ASSEMBLY |
35970F | - |
- | - |
|
7 | SHIFT LEVER KNOB SUB-ASSEMBLY |
33504F |
|
- | - |
|
8 | FRONT CONSOLE UPPER PANEL GARNISH |
58831A | - |
- | - |
|
9 | MOBILE WIRELESS CHARGER CRADLE ASSEMBLY |
- | - |
- | - |
|
10 | NO. 2 BOX BOTTOM MAT |
58917 | - |
- | - |
|
11 | NO. 2 CONSOLE UPPER PANEL GARNISH |
58834B | - |
- | - |
|
12 | NO. 1 CONSOLE UPPER PANEL GARNISH |
58833B | - |
- | - |
|
13 | FRONT NO. 1 CONSOLE BOX INSERT |
58816D | - |
- | - |
|
14 | FRONT NO. 2 CONSOLE BOX INSERT |
58817A | - |
- | - |
|
15 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
55606 | - |
- | - |
.gif)
|
*A | w/ Wireless Charger |
*B | w/o Wireless Charger |
PROCEDURE
1. INSTALL CONSOLE BOX ASSEMBLY
2. INSTALL CONSOLE REAR END PANEL SUB-ASSEMBLY
3. INSTALL CONSOLE BOX CARPET
4. INSTALL CONSOLE BOX CUP HOLDER ASSEMBLY
5. INSTALL CONSOLE CUP HOLDER BOX SUB-ASSEMBLY
6. INSTALL POSITION INDICATOR HOUSING ASSEMBLY
7. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
|
|
|
8. INSTALL FRONT CONSOLE UPPER PANEL GARNISH
9. INSTALL MOBILE WIRELESS CHARGER CRADLE ASSEMBLY (w/ Wireless Charger)
10. INSTALL NO. 2 BOX BOTTOM MAT (w/o Wireless Charger)
11. INSTALL NO. 2 UPPER CONSOLE PANEL GARNISH
12. INSTALL NO. 1 UPPER CONSOLE PANEL GARNISH
13. INSTALL FRONT NO. 1 CONSOLE BOX INSERT
14. INSTALL FRONT NO. 2 CONSOLE BOX INSERT
15. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
