DATA LIST / ACTIVE TEST

DATA LIST

CAUTION:

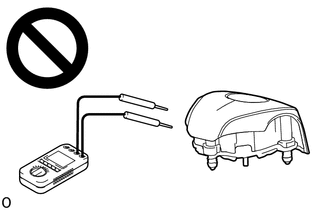

Never measure the resistance of the SRS parts because current from the tester may cause the SRS parts to deploy.

NOTICE:

In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

HINT:

Using the GTS to read the Data List allows the values or states of switches, sensors, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may be discovered before parts or wiring is disturbed. Reading the Data List information early in troubleshooting is one way to save diagnostic time.

(a) Read the Data List according to the display on the GTS.

Body Electrical > SRS Airbag > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

Total Distance Traveled

-

-

-

Not applicable

Total Distance Traveled - Unit

-

-

-

Not applicable

Occupant Detection Status

Front passenger classification

Unknown, Nothing, Child, Female, Male or Malfunction

Nothing, Child, Female or Male

-

Passenger Seat Buckle Switch Status

Front passenger seat belt fastening status

Unknown, Unbuckle, Buckle or Malfunction

Unbuckle or Buckle

-

Driver Seat Airbag Squib Resistance Value

Squib resistance value

0.00 to 655.35 OHM

2.10 to 4.20 OHM

-

Driver Seat Airbag Squib Resistance Value Diagnosis Result

Diagnostic result of squib resistance value

Normal or Abnormal

Normal

-

Passenger Seat Airbag Squib Resistance Value

Squib resistance value

0.00 to 655.35 OHM

1.80 to 3.00 OHM

-

Passenger Seat Airbag Squib Resistance Value Diagnosis Result

Diagnostic result of squib resistance value

Normal or Abnormal

Normal

-

Driver Seat 2nd Airbag Squib Resistance Value

Squib resistance value

0.00 to 655.35 OHM

2.10 to 4.20 OHM

-

Driver Seat 2nd Airbag Squib Resistance Value Diagnosis Result

Diagnostic result of squib resistance value

Normal or Abnormal

Normal

-

Passenger Seat 2nd Airbag Squib Resistance Value

Squib resistance value

0.00 to 655.35 OHM

1.80 to 3.00 OHM

-

Passenger Seat 2nd Airbag Squib Resistance Value Diagnosis Result

Diagnostic result of squib resistance value

Normal or Abnormal

Normal

-

Driver Seat Knee Airbag Squib Resistance Value

Squib resistance value

0 to 655.35 OHM

2.10 to 4.20 OHM

-

Driver Seat Knee Airbag Squib Resistance Value Diagnosis Result

Diagnostic result of squib resistance value

Normal or Abnormal

Normal

-

Right Side 1st Seat Side-airbag Squib Resistance Value

Squib resistance value

0.00 to 655.35 OHM

1.80 to 3.00 OHM

-

Right Side 1st Seat Side-airbag Squib Resistance Value Diagnosis Result

Diagnostic result of squib resistance value

Normal or Abnormal

Normal

-

Left Side 1st Seat Side-airbag Squib Resistance Value

Squib resistance value

0.00 to 655.35 OHM

1.80 to 3.00 OHM

-

Left Side 1st Seat Side-airbag Squib Resistance Value Diagnosis Result

Diagnostic result of squib resistance value

Normal or Abnormal

Normal

-

Driver Seat Pretensioner Squib Resistance Value

Squib resistance value

0.00 to 655.35 OHM

1.80 to 3.00 OHM

-

Driver Seat Pretensioner Squib Resistance Value Diagnosis Result

Diagnostic result of squib resistance value

Normal or Abnormal

Normal

-

Passenger Seat Pretensioner Squib Resistance Value

Squib resistance value

0.00 to 655.35 OHM

1.80 to 3.00 OHM

-

Passenger Seat Pretensioner Squib Resistance Value Diagnosis Result

Diagnostic result of squib resistance value

Normal or Abnormal

Normal

-

Right Side Curtain Shield Airbag Squib Resistance Value

Squib resistance value

0.00 to 655.35 OHM

1.80 to 3.00 OHM

-

Right Side Curtain Shield Airbag Squib Resistance Value Diagnosis Result

Diagnostic result of squib resistance value

Normal or Abnormal

Normal

-

Left Side Curtain Shield Airbag Squib Resistance Value

Squib resistance value

0.00 to 655.35 OHM

1.80 to 3.00 OHM

-

Left Side Curtain Shield Airbag Squib Resistance Value Diagnosis Result

Diagnostic result of squib resistance value

Normal or Abnormal

Normal

-

Right Side 2nd Seat Side-airbag Squib Resistance Value

Squib resistance value

0.00 to 655.35 OHM

1.80 to 3.00 OHM

-

Right Side 2nd Seat Side-airbag Squib Resistance Value Diagnosis Result

Diagnostic result of squib resistance value

Normal or Abnormal

Normal

-

Left Side 2nd Seat Side-airbag Squib Resistance Value

Squib resistance value

0.00 to 655.35 OHM

1.80 to 3.00 OHM

-

Left Side 2nd Seat Side-airbag Squib Resistance Value Diagnosis Result

Diagnostic result of squib resistance value

Normal or Abnormal

Normal

-

Right Side 2nd Seat Pretensioner Squib Resistance Value

Squib resistance value

0 to 655.35 OHM

1.80 to 3.00 OHM

-

Right Side 2nd Seat Pretensioner Squib Resistance Value Diagnosis Result

Diagnostic result of squib resistance value

Normal or Abnormal

Normal

-

Left Side 2nd Seat Pretensioner Squib Resistance Value

Squib resistance value

0 to 655.35 OHM

1.80 to 3.00 OHM

-

Left Side 2nd Seat Pretensioner Squib Resistance Value Diagnosis Result

Diagnostic result of squib resistance value

Normal or Abnormal

Normal

-
