Toyota Corolla Cross: Disassembly

DISASSEMBLY

CAUTION / NOTICE / HINT

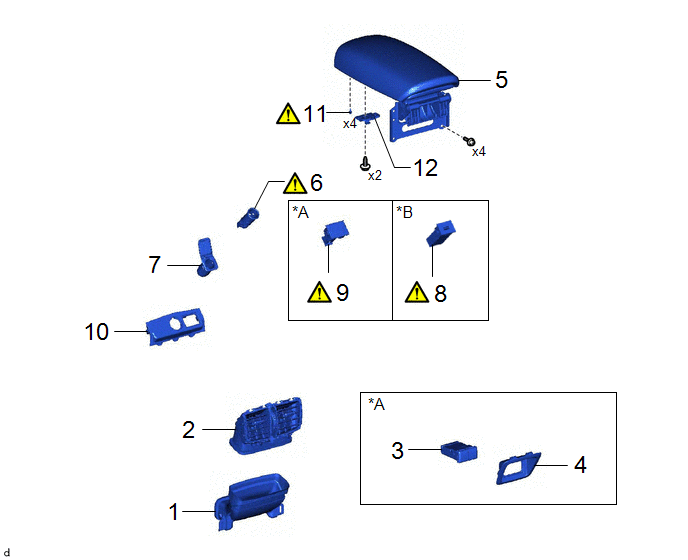

COMPONENTS (DISASSEMBLY)

Procedure

Part Name Code

1

NO. 3 CONSOLE BOX DUCT

58863C

-

-

-

2

CONSOLE BOX REGISTER ASSEMBLY

58860A

-

-

-

3

USB CHARGER SOCKET

85532

-

-

-

4

NO. 2 CONSOLE REAR END PANEL

58924A

-

-

-

5

CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY

58905

-

-

-

6

NO. 1 POWER OUTLET SOCKET ASSEMBLY

85530

-

-

7

NO. 1 POWER OUTLET SOCKET COVER

85535B

-

-

-

8

USB CHARGER SOCKET

85532

-

-

9

SPARE SWITCH HOLE COVER

55539A

-

-

10

REAR CONSOLE BOX

58911H

-

-

-

11

CONSOLE COMPARTMENT DOOR CUSHION

58959B

-

-

12

CONSOLE COMPARTMENT DOOR LOCK SUB-ASSEMBLY

58908A

-

-

-

*A

for USB Double Charger Socket

*B

for USB Single Charger Socket

PROCEDURE

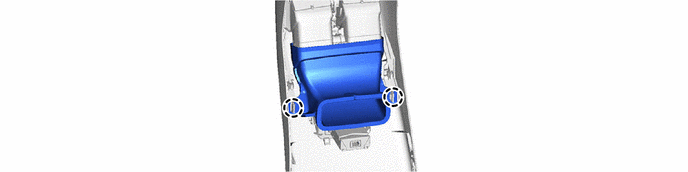

1. REMOVE NO. 3 CONSOLE BOX DUCT

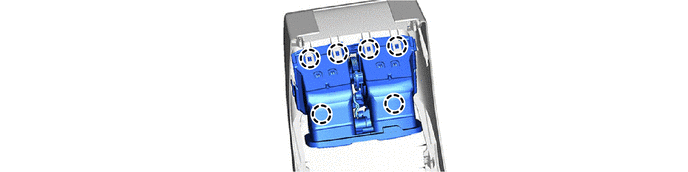

2. REMOVE CONSOLE BOX REGISTER ASSEMBLY

3. REMOVE USB CHARGER SOCKET (for USB Double Charger Socket)

Click here

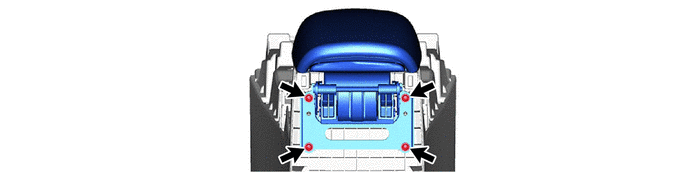

4. REMOVE NO. 2 CONSOLE REAR END PANEL (for USB Double Charger Socket)

5. REMOVE CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY

6. REMOVE NO. 1 POWER OUTLET SOCKET ASSEMBLY

Click here

7. REMOVE NO. 1 POWER OUTLET SOCKET COVER

Click here

8. REMOVE USB CHARGER SOCKET (for USB Single Charger Socket)

Click here

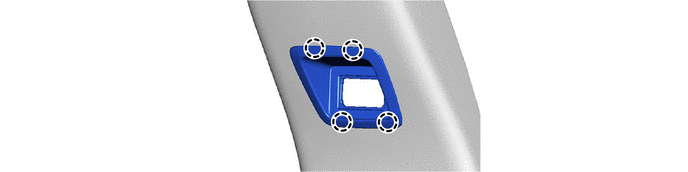

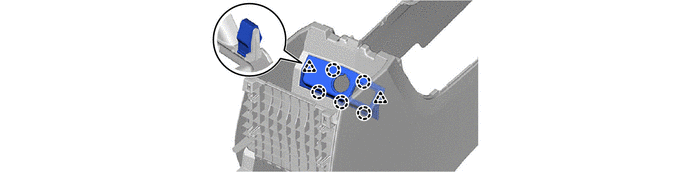

9. REMOVE SPARE SWITCH HOLE COVER (for USB Double Charger Socket)

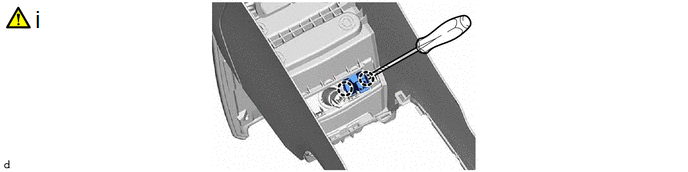

(1) Using a screwdriver with its tip wrapped with protective tape, disengage the claws to remove the spare switch hole cover.

10. REMOVE REAR CONSOLE BOX

11. REMOVE CONSOLE COMPARTMENT DOOR CUSHION

Remove in this Direction

-

-

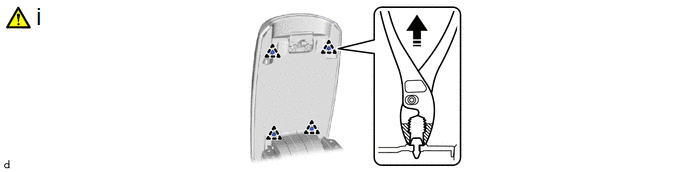

(1) Using pliers with its tip wrapped with protective tape, disengage the clips to remove the 4 console compartment door cushions.

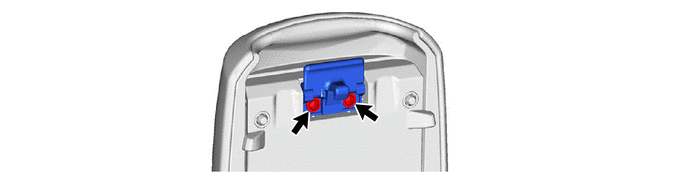

12. REMOVE CONSOLE COMPARTMENT DOOR LOCK SUB-ASSEMBLY
