Toyota Corolla Cross: Reassembly
REASSEMBLY
CAUTION / NOTICE / HINT

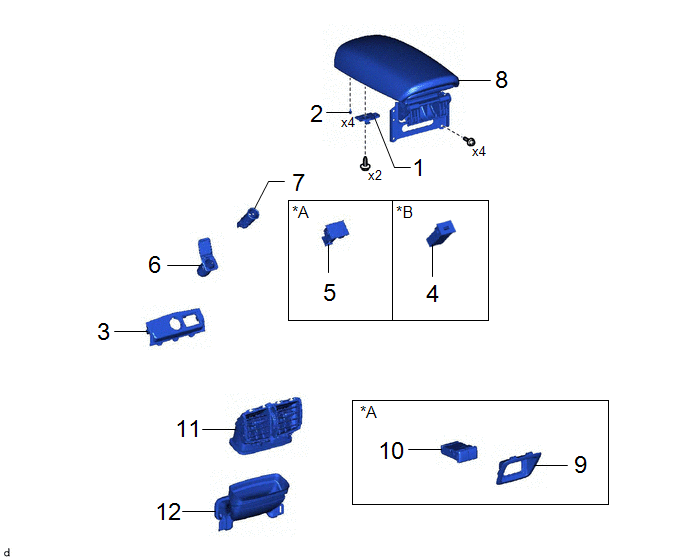

COMPONENTS (REASSEMBLY)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | CONSOLE COMPARTMENT DOOR LOCK SUB-ASSEMBLY |
58908A | - |
- | - |
|
2 | CONSOLE COMPARTMENT DOOR CUSHION |
58959B | - |
- | - |
|
3 | REAR CONSOLE BOX |
58911H | - |
- | - |
|
4 | USB CHARGER SOCKET |
85532 | - |
- | - |
|
5 | SPARE SWITCH HOLE COVER |
55539A | - |
- | - |
|
6 | NO. 1 POWER OUTLET SOCKET COVER |
85535B | - |
- | - |
|
7 | NO. 1 POWER OUTLET SOCKET ASSEMBLY |
85530 | - |
- | - |
|
8 | CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY |
58905 | - |
- | - |
|
9 | NO. 2 CONSOLE REAR END PANEL |
58924A | - |
- | - |
|
10 | USB CHARGER SOCKET |
85532 | - |
- | - |
|
11 | CONSOLE BOX REGISTER ASSEMBLY |
58860A | - |
- | - |
|
12 | NO. 3 CONSOLE BOX DUCT |
58863C | - |
- | - |
|
*A | for USB Double Charger Socket |
*B | for USB Single Charger Socket |
PROCEDURE
1. INSTALL CONSOLE COMPARTMENT DOOR LOCK SUB-ASSEMBLY
2. INSTALL CONSOLE COMPARTMENT DOOR CUSHION
3. INSTALL REAR CONSOLE BOX
4. INSTALL USB CHARGER SOCKET (for USB Single Charger Socket)
5. INSTALL SPARE SWITCH HOLE COVER (for USB Double Charger Socket)
6. INSTALL NO. 1 POWER OUTLET SOCKET COVER
7. INSTALL NO. 1 POWER OUTLET SOCKET ASSEMBLY
8. INSTALL CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY
9. INSTALL NO. 2 CONSOLE REAR END PANEL (for USB Double Charger Socket)
10. INSTALL USB CHARGER SOCKET (for USB Double Charger Socket)
11. INSTALL CONSOLE BOX REGISTER ASSEMBLY
12. INSTALL NO. 3 CONSOLE BOX DUCT
