Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

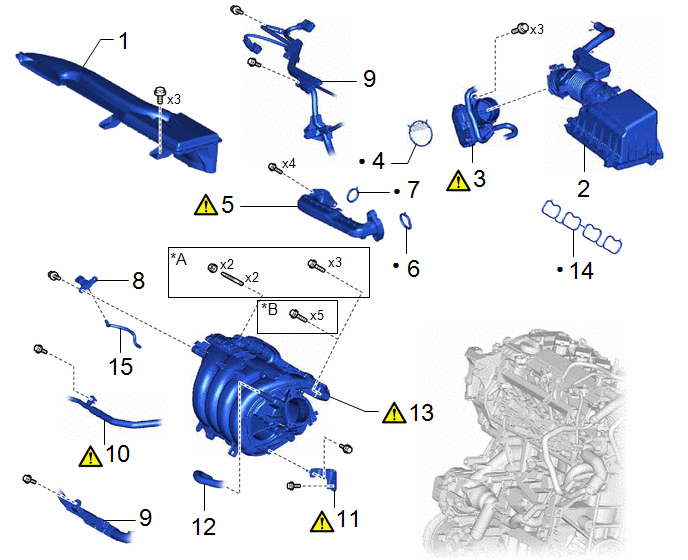

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

INLET NO. 1 AIR CLEANER

17751

-

-

-

2

AIR CLEANER CAP WITH AIR CLEANER HOSE

-

-

-

-

3

THROTTLE BODY WITH MOTOR ASSEMBLY

22030

-

-

4

THROTTLE BODY GASKET

22271

-

-

-

5

No. 1 EGR PIPE SUB-ASSEMBKY

25601

-

-

6

EGR VALVE ADAPTER GASKET

25629

-

-

-

7

EGR INLET GASKET

25628

-

-

-

8

E.F.I. VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR)

89421

-

-

-

9

ENGINE WIRE

82121

-

-

-

10

NO. 3 WATER BY-PASS PIPE

16279

-

-

11

INTAKE MANIFOLD STAY

17138B

-

-

12

NO. 1 FUEL VAPOR FEED HOSE

23826

-

-

-

13

INTAKE MANIFOLD

17111

-

-

-

14

NO. 1 INTAKE MANIFOLD TO HEAD GASKET

17177

-

-

-

15

VACUUM HOSE

-

-

-

-

*A

w/ Stud bolt

*B

w/o Stud bolt

Non-reusable part

-

-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during intake manifold removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

  • Replacement of throttle body with motor assembly
  • Cleaning the deposits from the throttle body with motor assembly
  • Gas leak from exhaust system is repaired

Inspection after repair

  • Poor idle, etc.
  • Engine start function, etc.

NOTICE:

This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click here

PROCEDURE

1. REMOVE INLET NO. 1 AIR CLEANER

Click here

2. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

Click here

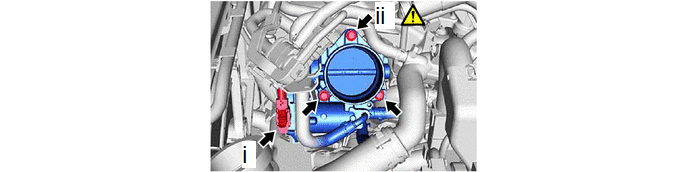

3. SEPARATE THROTTLE BODY WITH MOTOR ASSEMBLY

(1) Disconnect the throttle body with motor assembly connector.

(2) Using an 8 mm socket wrench, remove the 3 bolts to separate the throttle body with motor assembly from the intake manifold.

4. REMOVE THROTTLE BODY GASKET

Click here

5. REMOVE NO. 1 EGR PIPE SUB-ASSEMBLY

Click here

6. REMOVE EGR VALVE ADAPTER GASKET

Click here

7. REMOVE EGR INLET GASKET

Click here

8. REMOVE E.F.I. VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR)

Click here

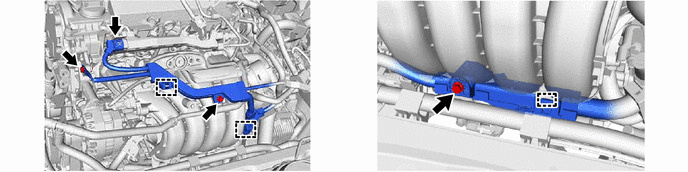

9. DISCONNECT ENGINE WIRE

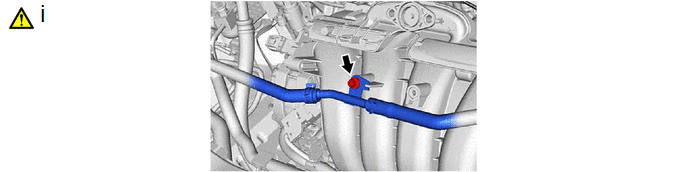

10. SEPARATE NO. 3 WATER BY-PASS PIPE

(1) Using an 8 mm socket wrench, remove the bolt and separate the No. 3 water by-pass pipe from the intake manifold.

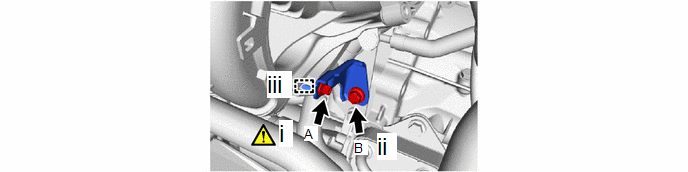

11. REMOVE INTAKE MANIFOLD STAY

(1) Using an 8 mm socket wrench, remove the bolt (A).

(2) Remove the bolt (B).

(3) Disengage the guide and remove the intake manifold stay.

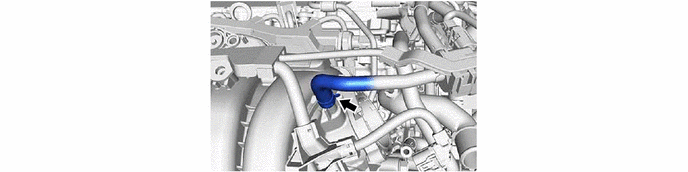

12. DISCONNECT NO. 1 FUEL VAPOR FEED HOSE

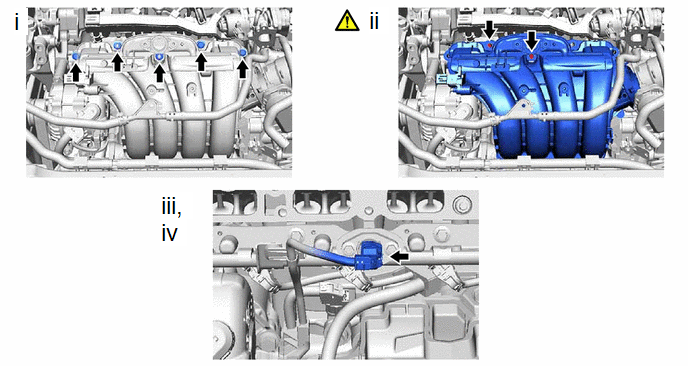

13. REMOVE INTAKE MANIFOLD

(a) w/o Stud bolt

(b) w/ Stud bolt

(1) Remove the 3 bolts and 2 nuts.

(2) Using an E8 "TORX" socket wrench, remove the 2 stud bolts and separate the intake manifold from the cylinder head sub-assembly.

(3) Disconnect the fuel pressure sensor connector.

(4) Remove the intake manifold.

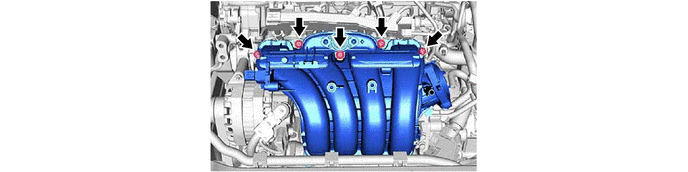

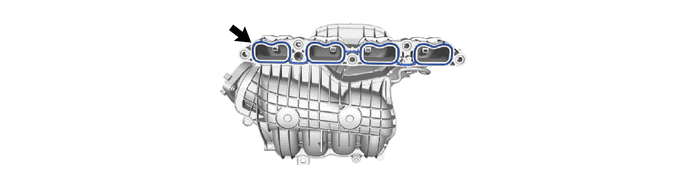

14. REMOVE NO. 1 INTAKE MANIFOLD TO HEAD GASKET

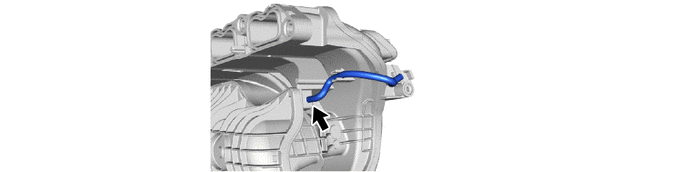

15. REMOVE VACUUM HOSE
