Toyota Corolla Cross: Installation
INSTALLATION
CAUTION / NOTICE / HINT

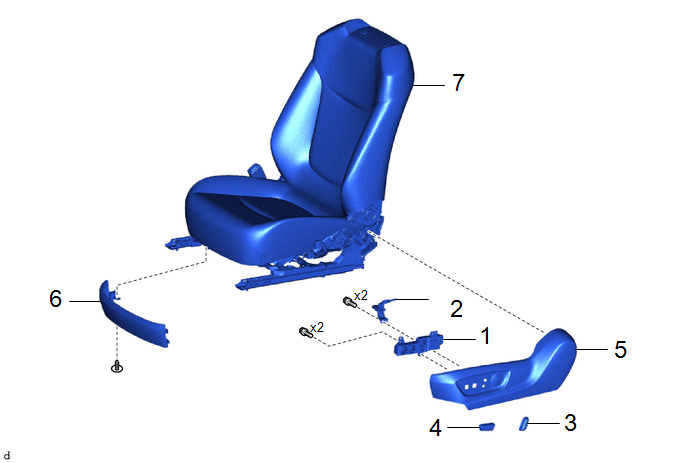

COMPONENTS (INSTALLATION)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | FRONT POWER SEAT SWITCH |
84922 | - |
- | - |
|
2 | SEAT ADJUSTER SHIELD CLAMP BRACKET |
72714 | - |
- | - |
|
3 | RECLINING POWER SEAT SWITCH KNOB |
84921B | - |
- | - |
|
4 | SLIDE AND VERTICAL POWER SEAT SWITCH KNOB |
84921A | - |
- | - |
|
5 | FRONT SEAT CUSHION SHIELD |
71812D | - |
- | - |
|
6 | FRONT SEAT FRONT CUSHION SHIELD |
71868N | - |
- | - |
|
7 | FRONT SEAT ASSEMBLY |
- | - |
- | - |
CAUTION / NOTICE / HINT
CAUTION:

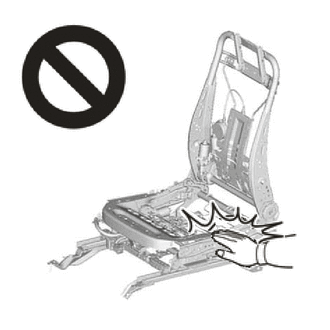

Wear protective gloves. Sharp areas on the parts may injure your hands.
.png)
HINT:
Power seat is available only on the driver side.
PROCEDURE
1. INSTALL FRONT POWER SEAT SWITCH
2. INSTALL SEAT ADJUSTER SHIELD CLAMP BRACKET
3. INSTALL RECLINING POWER SEAT SWITCH KNOB
4. INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB
5. INSTALL FRONT SEAT CUSHION SHIELD
6. INSTALL FRONT SEAT FRONT CUSHION SHIELD
7. INSTALL FRONT SEAT ASSEMBLY
Click here
.gif)
