Toyota Corolla Cross: Disassembly
DISASSEMBLY
CAUTION / NOTICE / HINT

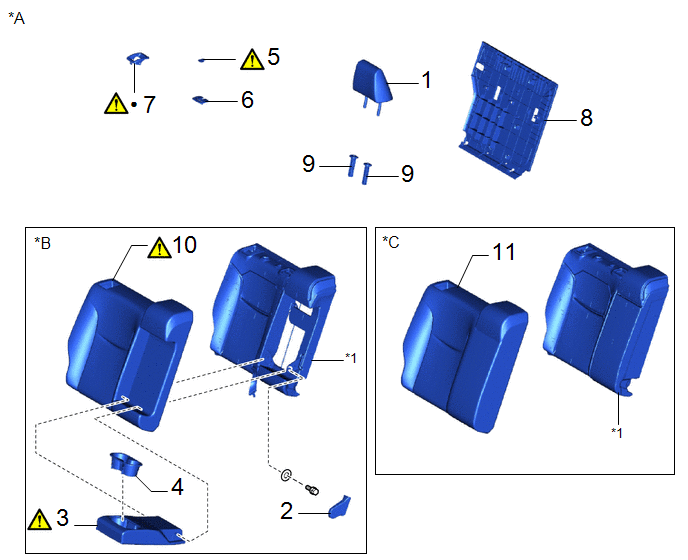

COMPONENTS (DISASSEMBLY)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | REAR SEAT HEADREST ASSEMBLY |
71940A | - |
- | - |
|
2 | CENTER ARMREST HINGE COVER |
72868B | - |
- | - |
|
3 | REAR SEAT CENTER ARMREST ASSEMBLY |
72830 |
|
- | - |
|
4 | REAR SEAT CENTER ARMREST CUP HOLDER SUB-ASSEMBLY |
72806D | - |
- | - |
|
5 | SEAT BELT ANCHOR COVER CAP |
73178A |
|
- | - |
|
6 | REAR SEAT SHOULDER BELT COVER |
73373 | - |
- | - |
|
7 | REAR SEATBACK LOCK UPPER BEZEL |
72667A |
|
- | - |
|
8 | REAR SEATBACK BOARD SUB-ASSEMBLY RH |
71701C | - |
- | - |
|
9 | REAR SEAT HEADREST SUPPORT |
71931A | - |
- | - |
|
10 | SEPARATE TYPE REAR SEATBACK COVER |
71077S |
|
- | - |
|
11 | SEPARATE TYPE REAR SEATBACK COVER |
71077S | - |
- | - |
|
*A | for RH Side |
*B | w/ Armrest |
|
*C | w/o Armrest |
- | - |
|
*1 | SEPARATE TYPE REAR SEATBACK PAD |
- | - |
|
● | Non-reusable part |
- | - |
|

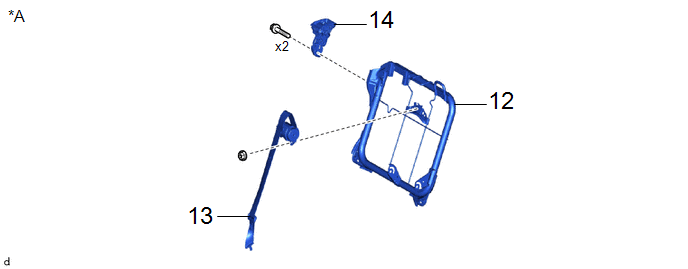

Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
|
12 | REAR SEATBACK FRAME SUB-ASSEMBLY RH |
71017 | - |
- | - |
|
13 | REAR CENTER SEAT OUTER BELT ASSEMBLY |
73350C | - |
- | - |
|
14 | REAR SEATBACK LOCK ASSEMBLY RH |
72630C | - |
- | - |
|
*A | for RH Side |
- | - |
|

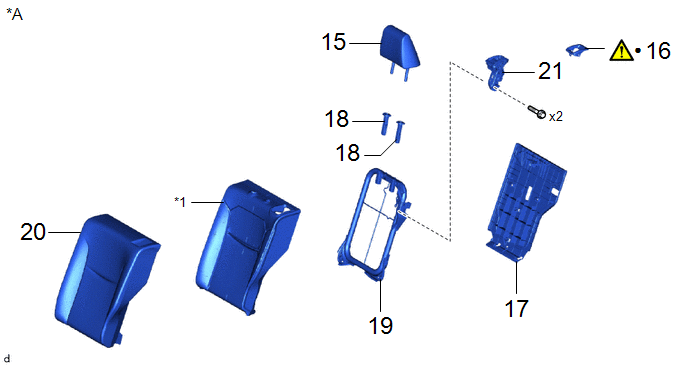

Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
|
15 | REAR SEAT HEADREST ASSEMBLY |
71940A | - |
- | - |
|
16 | REAR SEATBACK LOCK UPPER BEZEL |
72667B |
|
- | - |
|
17 | REAR SEATBACK BOARD SUB-ASSEMBLY LH |
71702C | - |
- | - |
|
18 | REAR SEAT HEADREST SUPPORT |
71931A | - |
- | - |
|
19 | REAR SEATBACK FRAME SUB-ASSEMBLY LH |
71018 | - |
- | - |
|
20 | SEPARATE TYPE REAR SEATBACK COVER |
71078S | - |
- | - |
|
21 | REAR SEATBACK LOCK ASSEMBLY LH |
72640A | - |
- | - |
|
*A | for LH Side |
- | - |
|
*1 | SEPARATE TYPE REAR SEATBACK PAD |
- | - |
|
● | Non-reusable part |
- | - |
|

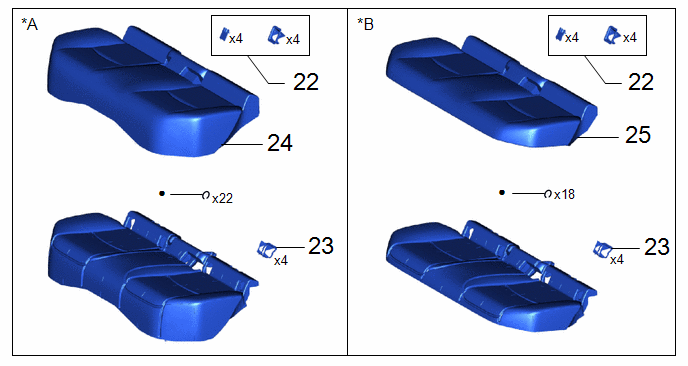

Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
|
22 | CHILD RESTRAINT SEAT TETHER ANCHOR COVER |
73731 | - |
- | - |
|
23 | CHILD RESTRAINT SEAT GUIDE CUP |
73735A | - |
- | - |
|
24 | BENCH TYPE REAR SEAT CUSHION COVER |
71075B | - |
- | - |
|
25 | BENCH TYPE REAR SEAT CUSHION COVER |
71075B | - |
- | - |
|
*A | for Gasoline Model |
*B | for HEV Model |
|
● | Non-reusable part |
- | - |
CAUTION / NOTICE / HINT

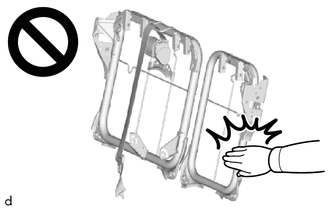

CAUTION:
Wear protective gloves. Sharp areas on the parts may injure your hands.
.png)
PROCEDURE

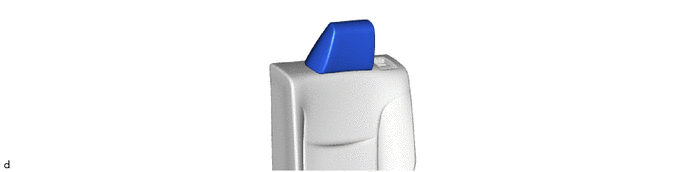

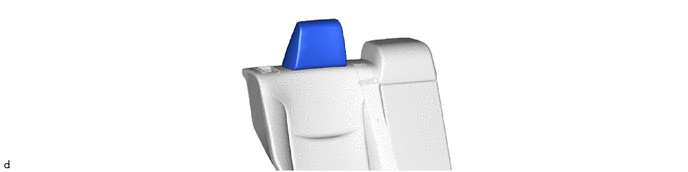

1. REMOVE REAR SEAT HEADREST ASSEMBLY (for RH Side)

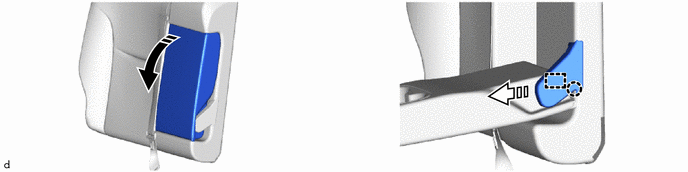

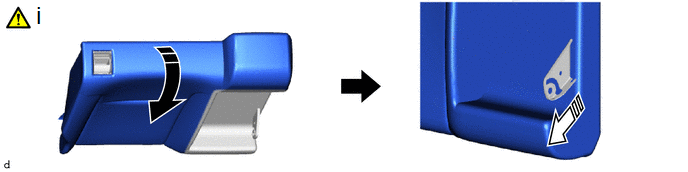

2. REMOVE CENTER ARMREST HINGE COVER (for RH Side w/ Armrest)
.png) |
Move in this Direction |
.png) |
Remove in this Direction |

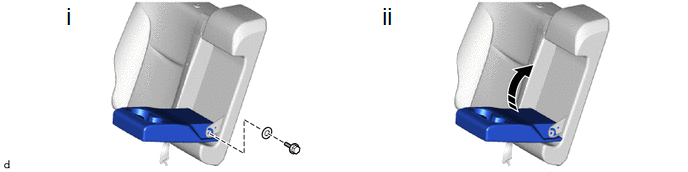

3. REMOVE REAR SEAT CENTER ARMREST ASSEMBLY (for RH Side w/ Armrest)
|
|
Return in this Direction |
- | - |
(1) Remove the bolt and washer.
(2) Return the rear seat center armrest assembly as shown in the illustration.
|
*a | Outside Location Pin |
*b | Inside Location Pin |
|
|
Remove in this Direction (1) |
|
Remove in this Direction (2) |
 |
Remove in this Direction (3) |
- | - |
(1) Disengage the inside location pin as shown in the illustration.
(2) Disengage the outside location pin to remove the rear seat center armrest assembly as shown in the illustration.
(3) Remove the bush.

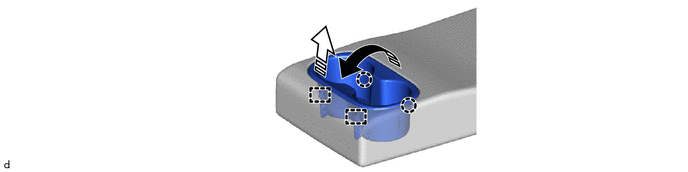

4. REMOVE REAR SEAT CENTER ARMREST CUP HOLDER SUB-ASSEMBLY (for RH Side w/ Armrest)
|
|
Remove in this Direction (1) |
|
Remove in this Direction (2) |

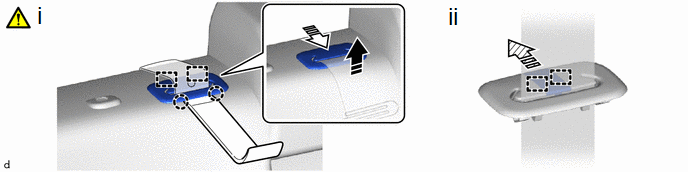

5. REMOVE SEAT BELT ANCHOR COVER CAP (for RH Side)
|
|
Remove in this Direction (1) |
|
Remove in this Direction (2) |
 |
Remove in this Direction (3) |
- | - |

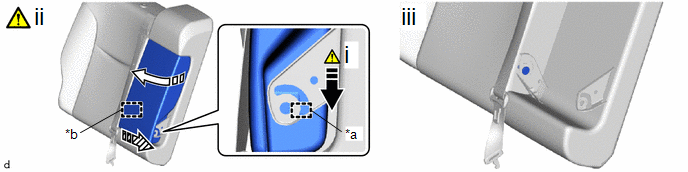

(1) Using a moulding remover D, disengage the claws and guides to separate the rear seat shoulder belt cover with seat belt anchor cover cap as shown in the illustration.
(2) Disengage the guides to remove the seat belt anchor cover cap as shown in the illustration.
6. REMOVE REAR SEAT SHOULDER BELT COVER (for RH Side)

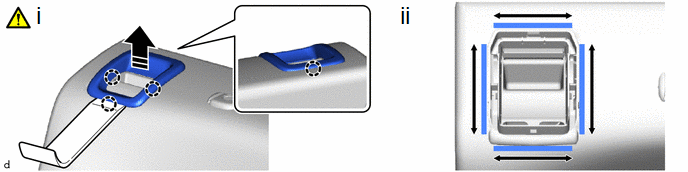

7. REMOVE REAR SEATBACK LOCK UPPER BEZEL (for RH Side)
|
|
Remove in this Direction |
- | - |
(1) Using a moulding remover D, disengage the claws to remove the rear seatback lock upper bezel.
(2) Disengage the hooks from the separate type rear seatback cover.

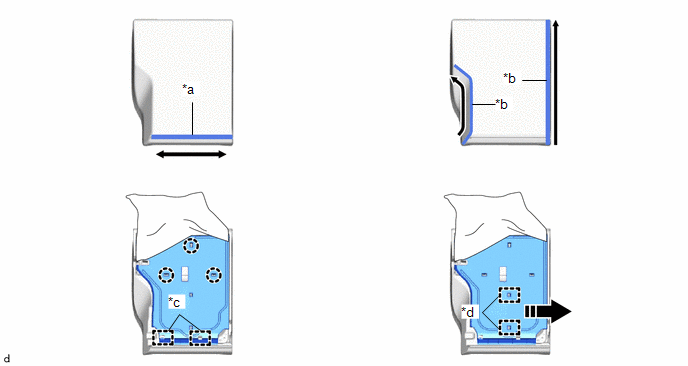

8. REMOVE REAR SEATBACK BOARD SUB-ASSEMBLY RH (for RH Side)
|
*a | Hook |
*b | Fastener |
|
*c | Guide |
*d | Clamp |
|
|
Remove in this Direction |
- | - |
9. REMOVE REAR SEAT HEADREST SUPPORT (for RH Side)

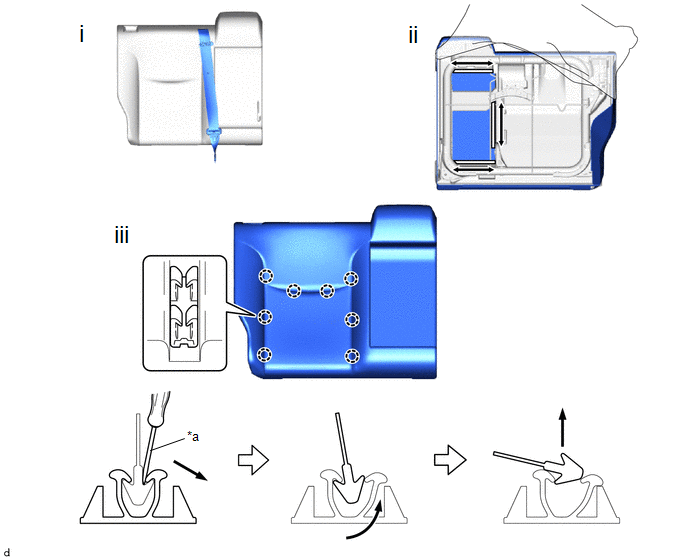

10. REMOVE SEPARATE TYPE REAR SEATBACK COVER (for RH Side w/ Armrest)
|
*a | Screwdriver |
- | - |

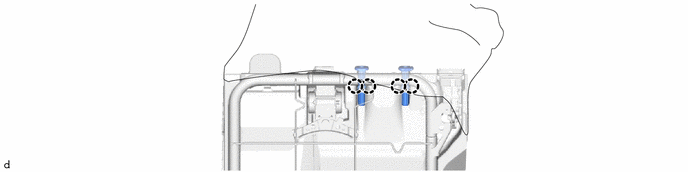

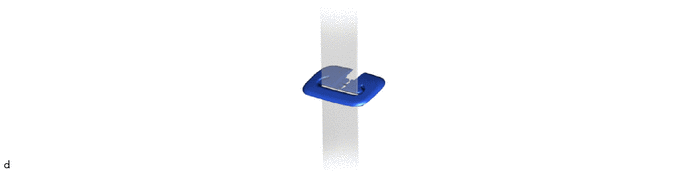

(1) Pass the rear center seat outer belt assembly through the separate type rear seatback cover with pad.
(2) Disengage the hooks.
(3) Using a screwdriver, disengage the claws to separate the separate type rear seatback cover from the separate type rear seatback pad as shown in the illustration.
|
| Remove in this Direction (1) |
|
Remove in this Direction (2) |
(1) Remove the separate type rear seatback cover as shown in the illustration.
NOTICE:
Be careful not to damage the separate type rear seatback cover.

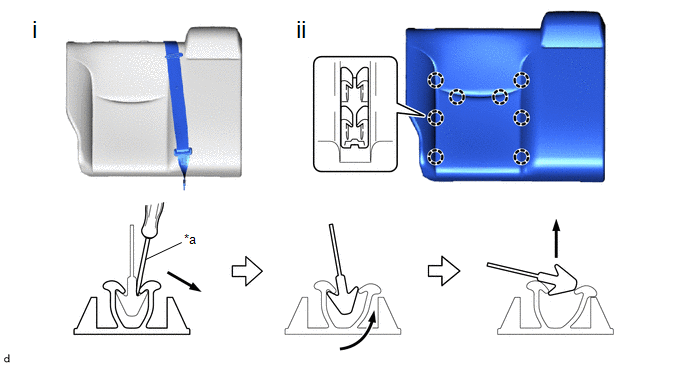

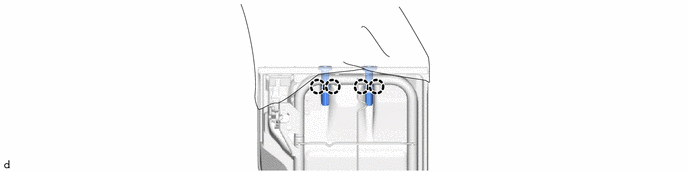

11. REMOVE SEPARATE TYPE REAR SEATBACK COVER (for RH Side w/o Armrest)
|
*a | Screwdriver |
- | - |
(1) Pass the rear center seat outer belt assembly through the separate type rear seatback cover with pad.
(2) Using a screwdriver, disengage the claws to separate the separate type rear seatback cover from the separate type rear seatback pad as shown in the illustration.
|
| Remove in this Direction |
- | - |
(1) Remove the separate type rear seatback cover as shown in the illustration.
12. REMOVE REAR SEATBACK FRAME SUB-ASSEMBLY RH (for RH Side)
13. REMOVE REAR CENTER SEAT OUTER BELT ASSEMBLY (for RH Side)
Click here .gif)

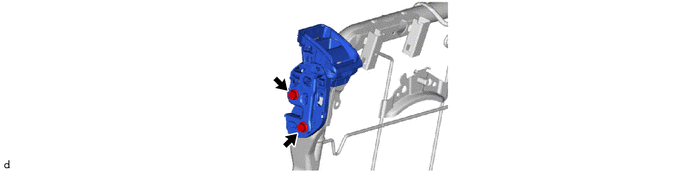

14. REMOVE REAR SEATBACK LOCK ASSEMBLY RH (for RH Side)
15. REMOVE REAR SEAT HEADREST ASSEMBLY (for LH Side)
16. REMOVE REAR SEATBACK LOCK UPPER BEZEL (for LH Side)
(a) Use the same procedure as for the RH Side.

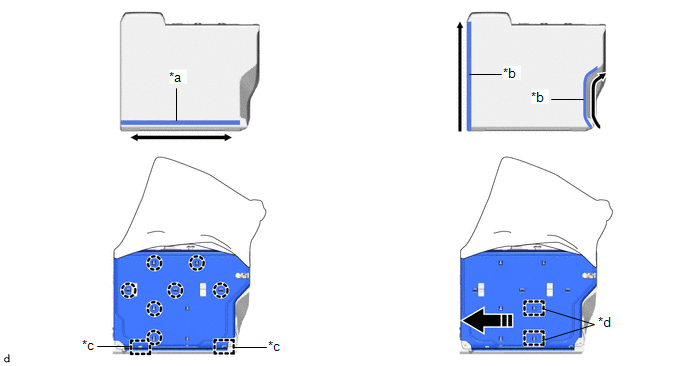

17. REMOVE REAR SEATBACK BOARD SUB-ASSEMBLY LH (for LH Side)
|
*a | Hook |
*b | Fastener |
|
*c | Guide |
*d | Clamp |
|
|
Remove in this Direction |
- | - |
18. REMOVE REAR SEAT HEADREST SUPPORT (for LH Side)

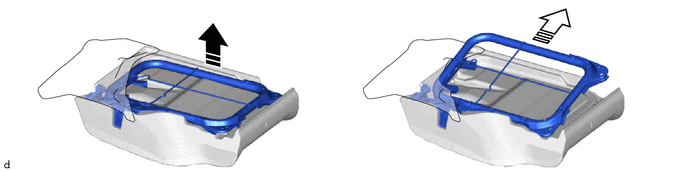

19. REMOVE REAR SEATBACK FRAME SUB-ASSEMBLY LH (for LH Side)
|
| Remove in this Direction (1) |
|
Remove in this Direction (2) |

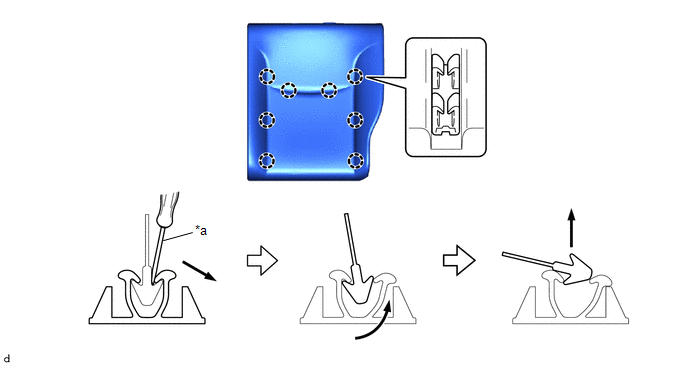

20. REMOVE SEPARATE TYPE REAR SEATBACK COVER (for LH Side)
|
*a | Screwdriver |
- | - |
21. REMOVE REAR SEATBACK LOCK ASSEMBLY LH (for LH Side)
(a) Use the same procedure as for the RH Side.

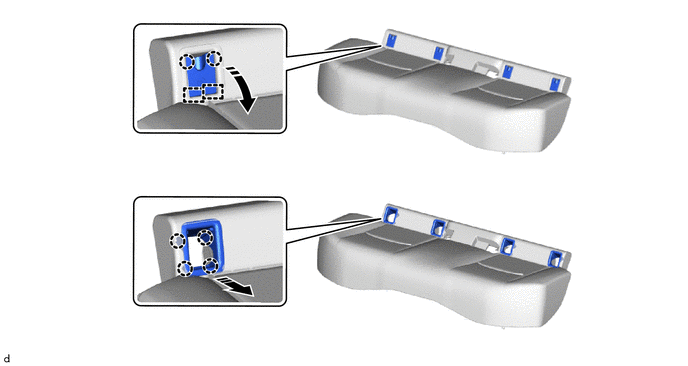

22. REMOVE CHILD RESTRAINT SEAT TETHER ANCHOR COVER
|
|
Remove in this Direction |
- | - |

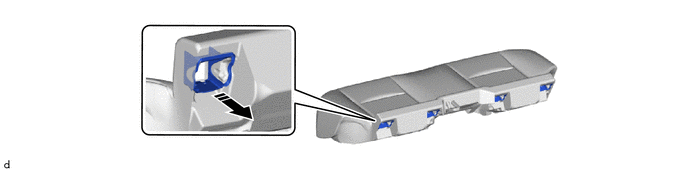

23. REMOVE CHILD RESTRAINT SEAT GUIDE CUP
|
|
Remove in this Direction |
- | - |

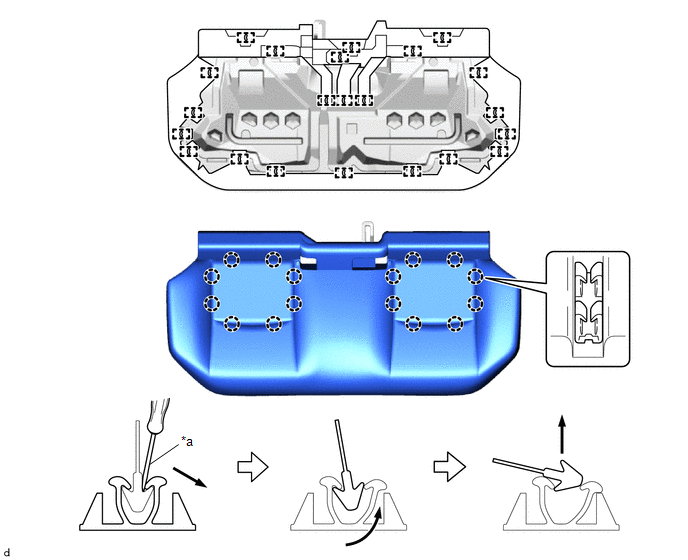

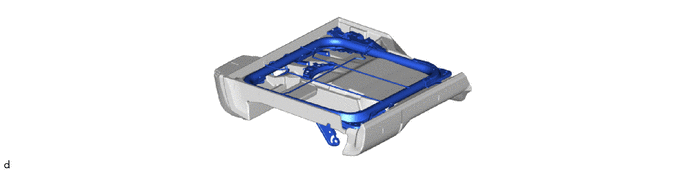

24. REMOVE BENCH TYPE REAR SEAT CUSHION COVER (for Gasoline Model)
|
*a | Screwdriver |
- | - |

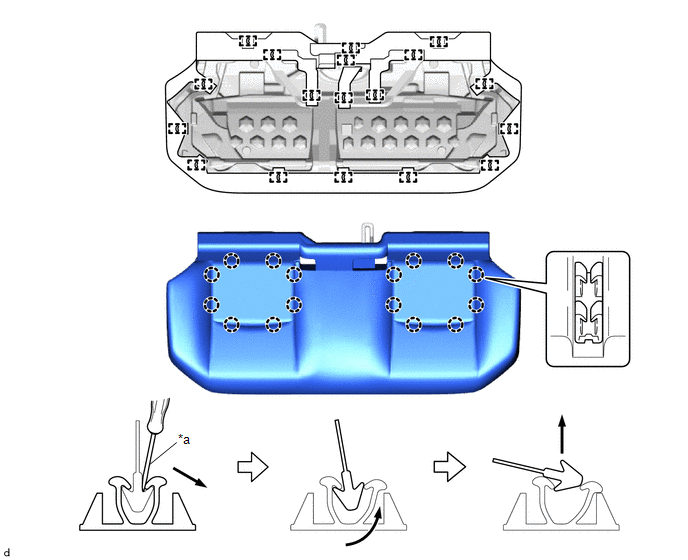

25. REMOVE BENCH TYPE REAR SEAT CUSHION COVER (for HEV Model)
|
*a | Screwdriver |
- | - |
