INSPECTION

PROCEDURE

1. INSPECT GLOVE BOX LIGHT ASSEMBLY

(a) Check the illumination.

(1) Apply auxiliary battery voltage to the glove box light assembly and check that the light illuminates.

OK:

Tester Connection

Specified Condition

I240-2 (B) - Auxiliary battery positive (+)

I240-1 (L) - Auxiliary battery negative (-)

Glove box light illuminates

If the result is not as specified, replace the glove box light assembly.

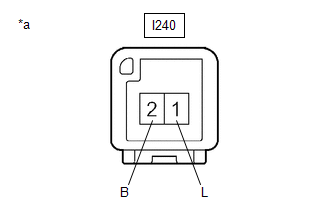

*a

Component without harness connected

(Glove Box Light Assembly)
