Toyota Corolla Cross: Inspection

Toyota Corolla Cross (2022-2024) Service Manual / Engine & Hybrid System / M20a-fxs (fuel) / Fuel Pump / Inspection

INSPECTION

PROCEDURE

1. INSPECT FUEL PUMP

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Specified Condition

U - V

0.05 to 3.0 Ω

V - W

0.05 to 3.0 Ω

U - W

0.05 to 3.0 Ω

If the result is not as specified, replace the fuel pump.

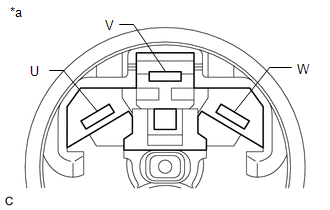

*a

Component without harness connected

(Fuel Pump)
