Toyota Corolla Cross: Adjustment
ADJUSTMENT
CAUTION / NOTICE / HINT
|

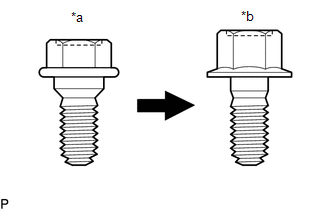

*a | Centering Bolt |
|
*b | Standard Bolt |
HINT:
- Centering bolts are used to install the door hinges to the vehicle body and door. The door cannot be adjusted with the centering bolts installed. Substitute the centering bolts with standard bolts when making adjustments.
- The specified torque for standard bolts is shown in the standard bolt chart.
Click here
.gif)
PROCEDURE
1. INSPECT FRONT DOOR

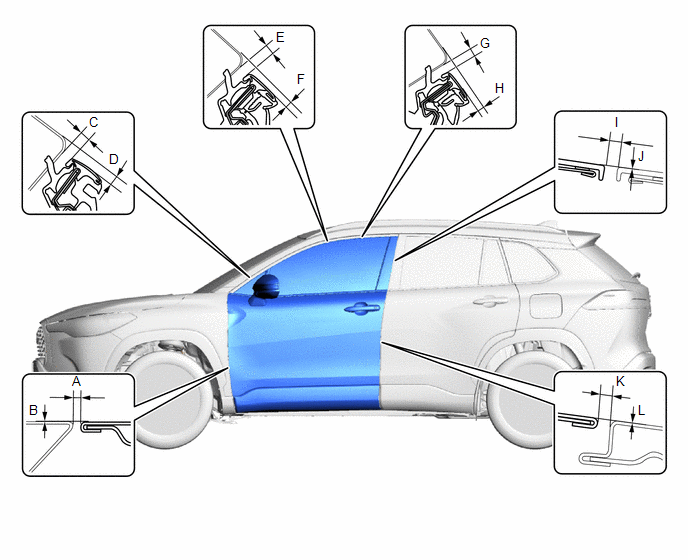

(a) Check that the clearance measurements of areas A through L are within each standard range.
Standard Clearance |
Area | Measurement |
Area | Measurement |
|---|---|---|---|
|
A | 3.2 to 5.6 mm (0.126 to 0.220 in.) |
B | -1.2 to 1.2 mm (-0.0472 to 0.0472 in.) |
|
C | 3.4 to 6.8 mm (0.134 to 0.268 in.) |
D | 3.7 to 7.7 mm (0.146 to 0.303 in.) |
|
E | 3.4 to 6.8 mm (0.134 to 0.268 in.) |
F | 1.0 to 5.0 mm (0.0394 to 0.197 in.) |
|
G | 3.4 to 6.8 mm (0.134 to 0.268 in.) |
H | 2.0 to 6.0 mm (0.0787 to 0.236 in.) |
|
I | 2.4 to 6.4 mm (0.0945 to 0.2520 in.) |
J | -2.0 to 2.0 mm (-0.0787 to 0.0787 in.) |
|
K | 3.3 to 5.7 mm (0.130 to 0.224 in.) |
L | -1.2 to 1.2 mm (-0.0472 to 0.0472 in.) |
2. ADJUST FRONT DOOR
NOTICE:
Make sure to turn the ignition switch off before adjusting the door lock strikers.

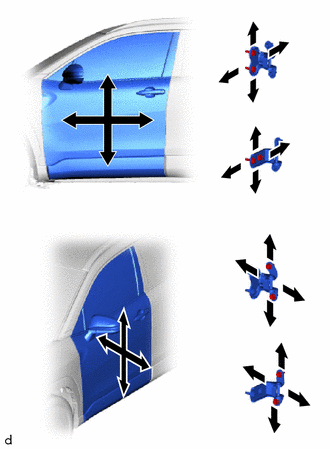

| (a) Using SST, loosen the 4 hinge bolts on the vehicle body and adjust the door position. SST: 09812-00020 |
|
(b) Tighten the 4 hinge bolts on the vehicle body after adjustment.
Torque:
26 N·m {265 kgf·cm, 19 ft·lbf}
(c) Loosen the 4 hinge bolts on the door and adjust the door position.
(d) Tighten the 4 hinge bolts on the door after adjustment.
Torque:
21 N·m {214 kgf·cm, 15 ft·lbf}

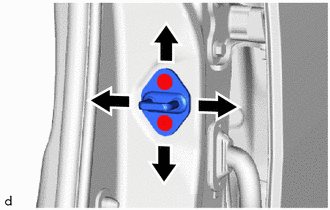

| (e) Using a T40 "TORX" socket wrench, slightly loosen the 2 striker mounting screws. |
|
(f) Using a brass bar and a hammer, hit the striker to adjust its position.
(g) Using a T40 "TORX" socket wrench, tighten the 2 striker mounting screws after adjustment.
Torque:
23 N·m {235 kgf·cm, 17 ft·lbf}
