INSPECTION

PROCEDURE

1. INSPECT NO. 2 AIR FUEL RATIO SENSOR

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

1 (HA1B) - 2 (+B)

20°C (68°F)

2 to 6 Ω

1 (HA1B) - 4 (A1B-)

Always

10 kΩ or higher

If the result is not as specified, replace the air fuel ratio sensor.

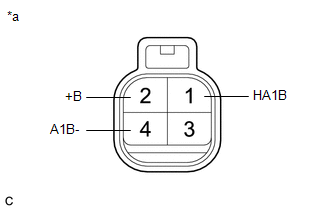

*a
