Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

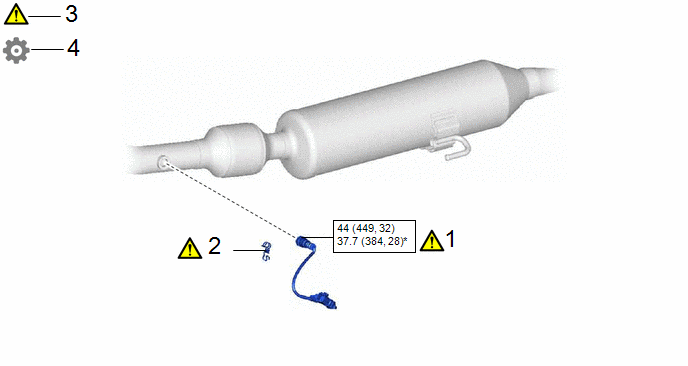

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

NO. 2 AIR FUEL RATIO SENSOR

89467C

-

-

2

WIRING HARNESS CLAMP BRACKET

82715W

-

-

3

INSPECT FOR EXHAUST GAS LEAK

-

-

-

4

PERFORM INITIALIZATION

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

*

For use with SST

PROCEDURE

1. INSTALL NO. 2 AIR FUEL RATIO SENSOR

NOTICE:

If the air fuel ratio sensor has been struck or dropped, replace it.

HINT:

Perform "Inspection After Repair" after replacing the air fuel ratio sensor.

Click here

*a

Torque Wrench Fulcrum Length

-

-

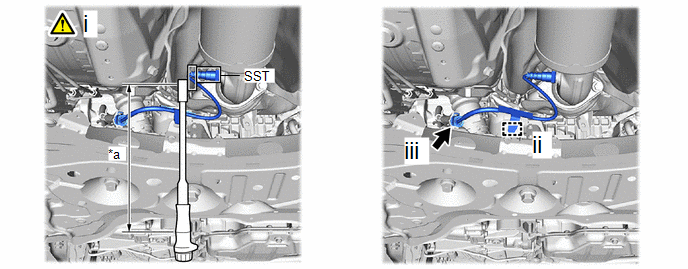

(1) Using SST, install the no. 2 air fuel ratio sensor to the front exhaust pipe assembly (TWC: Rear Catalyst).

SST: 09224-00012

Torque:

Specified tightening torque :

44 N·m {449 kgf·cm, 32 ft·lbf}

HINT:

  • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

    Click here

  • When using SST (fulcrum length of 30 mm (1.18 in.)) + torque wrench (fulcrum length of 180 mm (7.09 in.)):

    37.7 N*m (384 kgf*cm, 28 ft.*lbf)

(2) Engage the wire harness clamp.

(3) Connect the no. 2 air fuel ratio sensor connector.

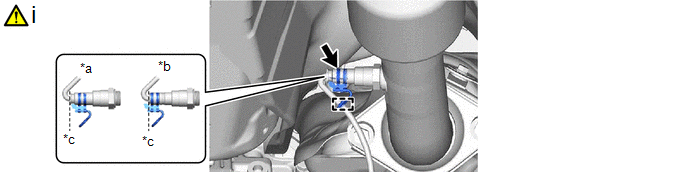

2. INSTALL WIRING HARNESS CLAMP BRACKET

*a

Correct

*b

Incorrect

*c

Standard Position

-

-

(1) Install the wire harness clamp bracket to the No. 2 air fuel ratio sensor.

NOTICE:

Align the edge of the wire harness clamp bracket and No. 2 air fuel ratio sensor as shown in the illustration.

3. INSPECT FOR EXHAUST GAS LEAK

Click here

4. PERFORM INITIALIZATION

(a) Perform "Inspection After Repair" after replacing the air fuel ratio sensor.

Click here
