Toyota Corolla Cross: ECM/PCM Engine Off Timer Performance Signal Invalid (P261029,P261093)

DTC SUMMARY

DESCRIPTION

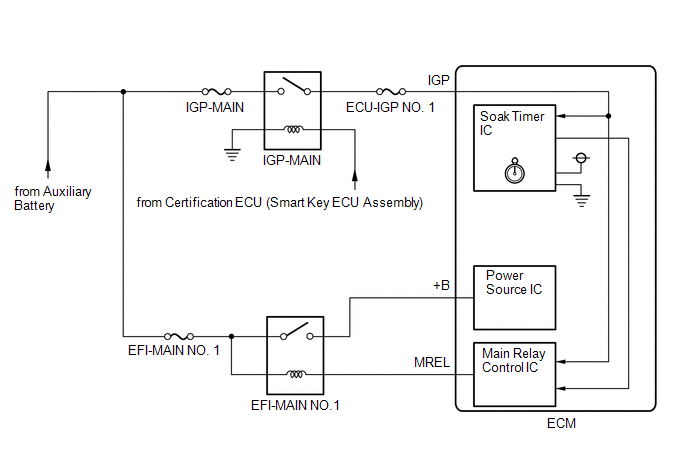

The soak timer operates after the ignition switch is turned off. When a certain amount of time has elapsed after turning the ignition switch off, the soak timer activates the ECM to perform malfunction checks which can only be performed after the engine is stopped. The soak timer is built into the ECM.

MONITOR DESCRIPTION

If the soak timer activates the ECM even though only a short amount of time has elapsed since the ignition switch was turned off, or if the soak timer does not activate the ECM even though a considerable amount of time has elapsed since the ignition switch was turned off, the ECM determines that the soak timer is malfunctioning, illuminates the MIL and stores a DTC the next time the ignition switch is turned to ON.

MONITOR STRATEGY

TYPICAL ENABLING CONDITIONS

TYPICAL MALFUNCTION THRESHOLDS

CONFIRMATION DRIVING PATTERN

HINT:

• After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

  Click here

• When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

  Click here

1. Connect the GTS to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the GTS on.
4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
5. Turn the ignition switch off and wait for at least 30 seconds.
6. Turn the ignition switch to ON.
7. Turn the GTS on.
8. Put the engine in Inspection Mode (Maintenance Mode).

   Click here

9. Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher [A].
10. Turn the ignition switch off and wait for at least 15 seconds [B].
11. Turn the ignition switch to ON.
12. Turn the GTS on.
13. Put the engine in Inspection Mode (Maintenance Mode).

    Click here

14. Start the engine [C].
15. Stop the engine and leave the vehicle for 60 minutes or more [D].
16. Turn the ignition switch to ON.
17. Turn the GTS on.
18. Enter the following menus: Powertrain / Engine / Trouble Codes [E].
19. Read the pending DTCs.

    HINT:

    • If a pending DTC is output, the system is malfunctioning.
    • If a pending DTC is not output, perform the following procedure.
20. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
21. Input the DTC: P261029 or P261093.
22. Check the DTC judgment result.

    GTS Display	Description
    NORMAL	DTC judgment completed System normal
    ABNORMAL	DTC judgment completed System abnormal
    INCOMPLETE	DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions

    HINT:

    • If the judgment result is NORMAL, the system is normal.
    • If the judgment result is ABNORMAL, the system has a malfunction.
    • [A] to [E]: Normal judgment procedure.

      The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

    • When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.

CAUTION / NOTICE / HINT

NOTICE:

• Vehicle Control History may be stored in the hybrid vehicle control ECU if the engine is malfunctioning. Certain vehicle condition information is recorded when Vehicle Control History is stored. Reading the vehicle conditions recorded in both the freeze frame data and Vehicle Control History can be useful for troubleshooting.

  Click here

  (Select Powertrain in Health Check and then check the time stamp data.)

• If any "Engine Malfunction" Vehicle Control History item has been stored in the hybrid vehicle control ECU, make sure to clear it. However, as all Vehicle Control History items are cleared simultaneously, if any Vehicle Control History items other than "Engine Malfunction" are stored, make sure to perform any troubleshooting for them before clearing Vehicle Control History.

  Click here

HINT:

• DTC P261029 or P261093 is set if an internal ECM problem is detected. Diagnostic procedures are not required. ECM replacement is required.
• Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.
• If the cable is disconnected from the auxiliary battery terminal, the fuel vapor containment valve cannot close completely and an EVAP SYSTEM DTC will be stored. If the DTC is output, drive the vehicle at a speed of 10 km/h (6 mph) or more and then leave the vehicle for 30 seconds or more. Then perform the Evaporative System Check again.

PROCEDURE

Click here

NEXT

(a) Clear the DTCs.

(b) Turn the ignition switch off and wait for at least 30 seconds.

NEXT

(a) Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.

(b) Read the Pending DTCs.

HINT:

If no pending DTC is output, the repair has been successfully completed.

NEXT

END
