Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Interior / Heating / Air Conditioning / Condenser / Disassembly

DISASSEMBLY

CAUTION / NOTICE / HINT

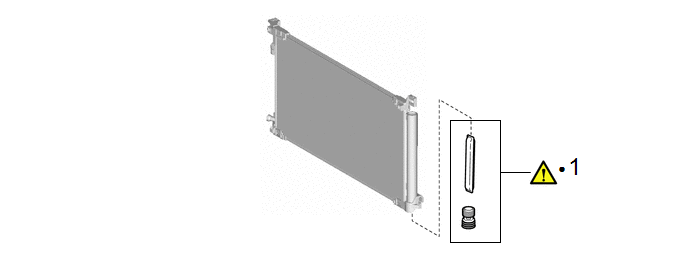

COMPONENTS (DISASSEMBLY)

Procedure

Part Name Code

1

COOLER DRYER

88474

-

-

●

Non-reusable part

-

-

PROCEDURE

1. REMOVE COOLER DRYER

*a

Modulator

*b

Cap

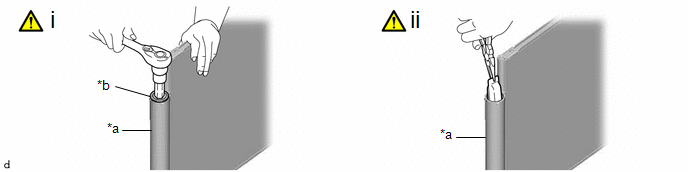

(1) Using a 14 mm straight hexagon, remove the cap from the modulator.

(2) Using pliers, remove the cooler dryer from the modulator.
