Toyota Corolla Cross: Reassembly

Toyota Corolla Cross (2022-2025) Service Manual / Vehicle Interior / Heating / Air Conditioning / Condenser / Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

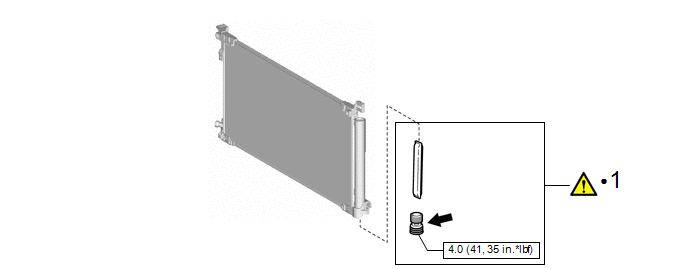

COMPONENTS (REASSEMBLY)

Procedure

Part Name Code

1

COOLER DRYER

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

for Gasoline Model:

Compressor oil ND-OIL 12 or equivalent

for HEV Model:

Compressor oil ND-OIL 11 or equivalent

-

-

PROCEDURE

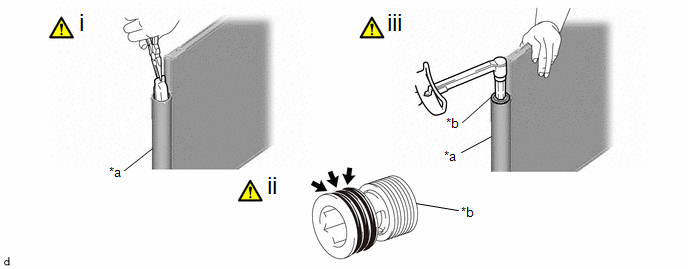

1. INSTALL COOLER DRYER

*a

Modulator

*b

Cap

(1) Using pliers, install a new cooler dryer to the modulator.

(2) Sufficiently apply compressor oil to 3 O-rings and the fitting surfaces of a new cap.

Compressor Oil:

for Gasoline Model:

ND-OIL 12 or equivalent

for HEV Model:

ND-OIL 11 or equivalent

NOTICE:

Keep the O-rings and O-ring fitting surfaces free from dirt or foreign matter.

(3) Using a 14 mm straight hexagon, install the cap to the modulator.

Torque:

4.0 N·m {41 kgf·cm, 35 in·lbf}
