Toyota Corolla Cross: Front Blower Motor

Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Interior / Heating / Air Conditioning / Front Blower Motor

Removal

REMOVAL

CAUTION / NOTICE / HINT

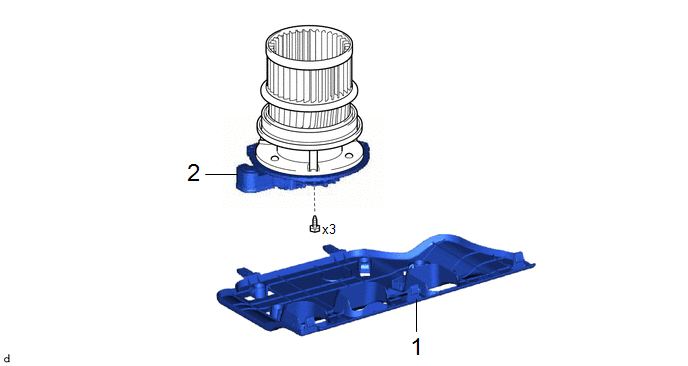

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

55607

-

-

-

2

BLOWER MOTOR WITH FAN SUB-ASSEMBLY

87103B

-

-

-

PROCEDURE

1. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click here

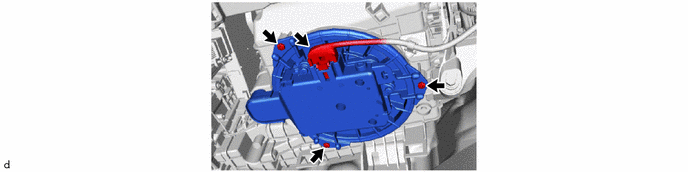

2. REMOVE BLOWER MOTOR WITH FAN SUB-ASSEMBLY

Installation

INSTALLATION

CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

BLOWER MOTOR WITH FAN SUB-ASSEMBLY

87103B

-

-

-

2

NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

55607

-

-

-

PROCEDURE

1. INSTALL BLOWER MOTOR WITH FAN SUB-ASSEMBLY

2. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
