Toyota Corolla Cross (2022-2025) Service Manual / Vehicle Interior / Supplemental Restraint Systems / Front Passenger Airbag Assembly / Installation

INSTALLATION

CAUTION / NOTICE / HINT

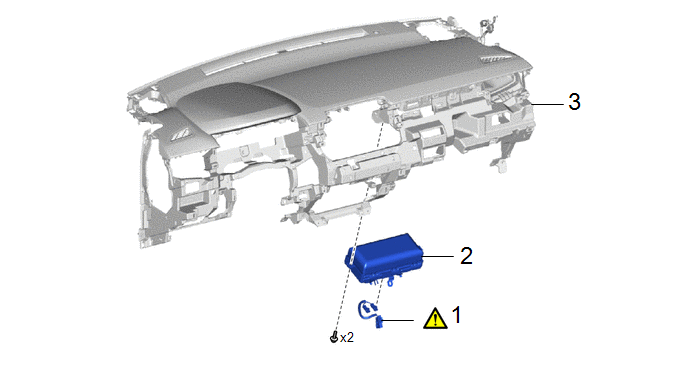

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

NO. 2 INSTRUMENT PANEL WIRE

82142

-

-

2

INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

73960A

-

-

-

3

INSTRUMENT PANEL SAFETY PAD ASSEMBLY

55400

-

-

-

CAUTION / NOTICE / HINT

PROCEDURE

1. INSTALL NO. 2 INSTRUMENT PANEL WIRE

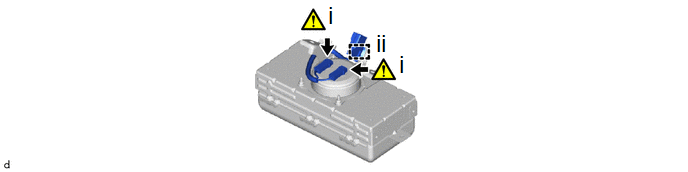

(1) Connect the airbag connector

NOTICE:

When connecting any airbag connector, take care not to damage the airbag wire harness.

HINT:

Refer to How to Connect or Disconnect Airbag Connector:

Click here

(2) Engage the clamp.

2. INSTALL INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

3. INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY

Click here
