Toyota Corolla Cross: System Diagram
Toyota Corolla Cross (2022-2024) Service Manual / Engine & Hybrid System / Stop And Start / Stop And Start System / System Diagram

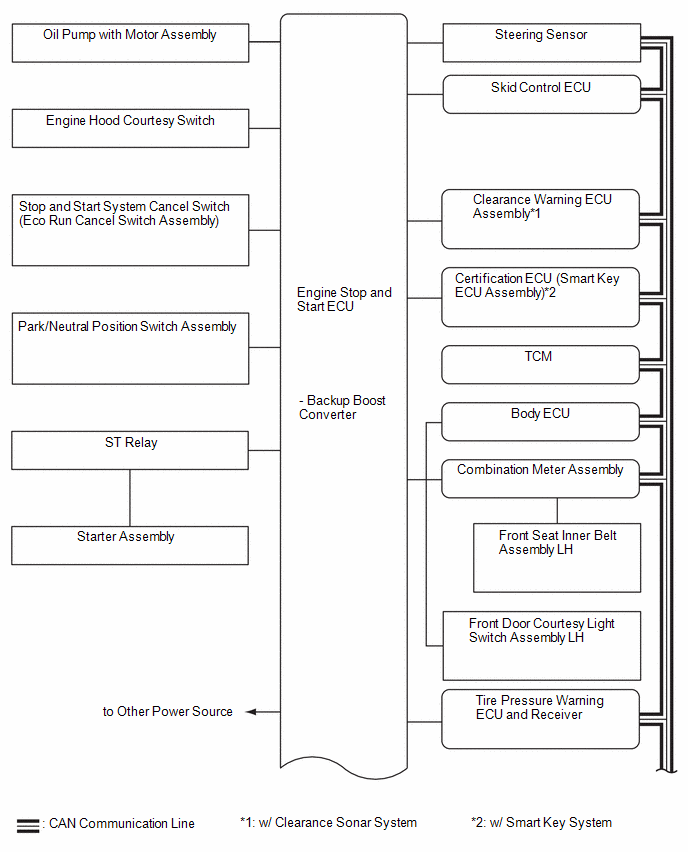

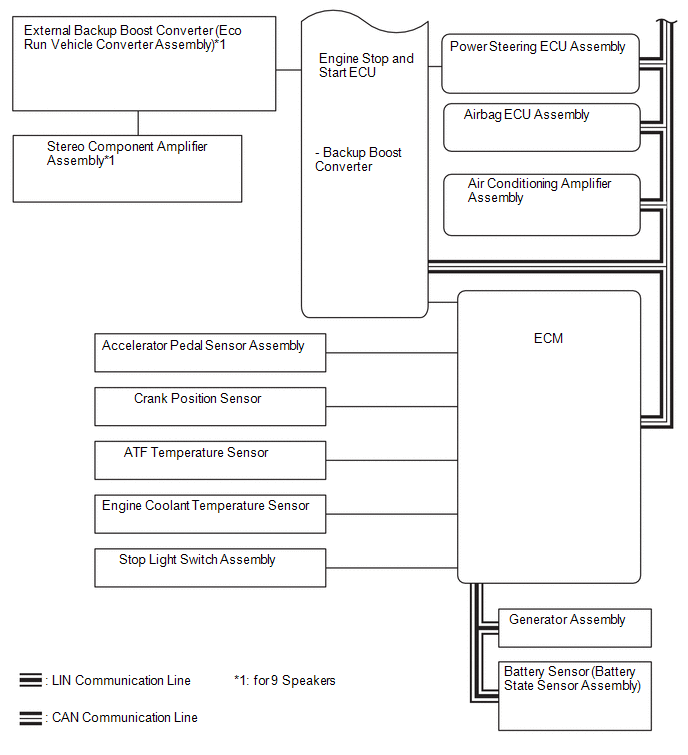

SYSTEM DIAGRAM
