Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

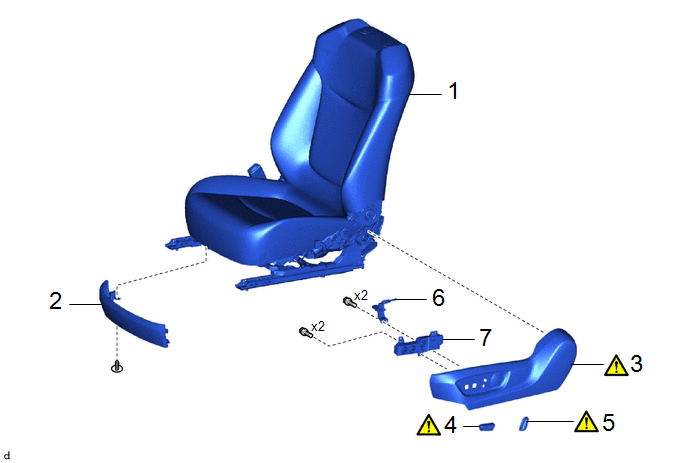

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

FRONT SEAT ASSEMBLY

-

-

-

-

2

FRONT SEAT FRONT CUSHION SHIELD

71868N

-

-

-

3

FRONT SEAT CUSHION SHIELD

71812D

-

-

4

SLIDE AND VERTICAL POWER SEAT SWITCH KNOB

84921A

-

-

5

RECLINING POWER SEAT SWITCH KNOB

84921B

-

-

6

SEAT ADJUSTER SHIELD CLAMP BRACKET

72714

-

-

-

7

FRONT POWER SEAT SWITCH

84922

-

-

-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during front power seat switch assembly removal/installation are shown below.

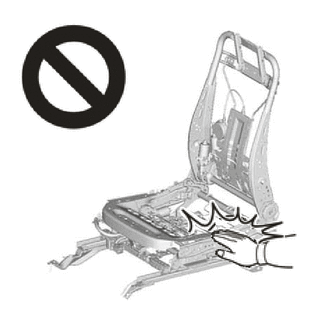

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click here

HINT:

  • When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
    • Learning completes when vehicle is driven

      Effect / Inoperative Function When Necessary Procedures are not Performed

      Necessary Procedures

      Link

      *A: for Gasoline Model

      Front Camera System

      Drivre the vehicle straight ahead at 15 km/h (10mph) or more for 1 second or more.

      Stop and start system *A

      Drive the vehicle until stop and start control is permitted (appoximately 5 to 60 minutes)

    • Learning completes when vehicle is operated normally

      Effect / Inoperative Function When Necessary Procedures are not Performed

      Necessary Procedures

      Link

      Power door lock control system

      • Back door opener

      Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

      Power back door system

      Fully close the back door by hand.

      HINT:

      Initialization is not necessary if the above procedures are performed while the back door is closed.

      Air conditioning system

      After the ignition switch is turned to ON, the servo motor standard position is recognized.

      -

  • Power seat is available only on the driver side.

PROCEDURE

1. REMOVE FRONT SEAT ASSEMBLY

Click here

2. REMOVE FRONT SEAT FRONT CUSHION SHIELD

Click here

3. REMOVE FRONT SEAT CUSHION SHIELD

Click here

4. REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB

Click here

5. REMOVE RECLINING POWER SEAT SWITCH KNOB

Click here

6. REMOVE SEAT ADJUSTER SHIELD CLAMP BRACKET

Click here

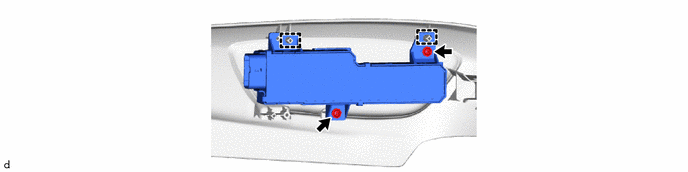

7. REMOVE FRONT POWER SEAT SWITCH
