Toyota Corolla Cross: Installation
INSTALLATION
CAUTION / NOTICE / HINT

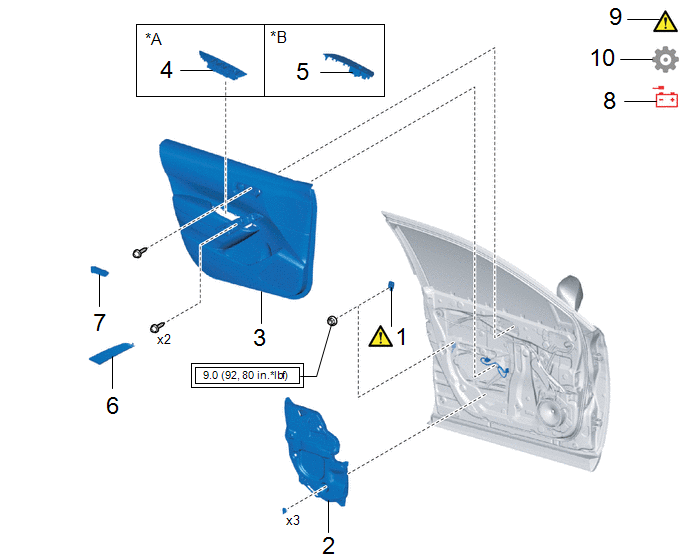

COMPONENTS (INSTALLATION)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | SIDE AIRBAG PRESSURE SENSOR |
8983AA |
|
- | - |
|
2 | FRONT DOOR SERVICE HOLE COVER |
67832 | - |
- | - |
|
3 | FRONT DOOR TRIM BOARD SUB-ASSEMBLY |
67602 | - |
- | - |
|
4 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL |
- | - |
- | - |
|
5 | POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL |
- | - |
- | - |
|
6 | DOOR ASSIST GRIP COVER |
74646 | - |
- | - |
|
7 | FRONT DOOR INSIDE HANDLE BEZEL PLUG |
69284F | - |
- | - |
|
8 | CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL |
- | - |
- | - |
|
9 | INSPECT SRS WARNING LIGHT |
- |
|
- | - |
|
10 | INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL |
- | - |
- |
|
|
*A | for Driver Side |
*B | for Front Passenger Side |
.png) |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
- | - |
PROCEDURE
1. INSTALL SIDE AIRBAG PRESSURE SENSOR
.png)
|

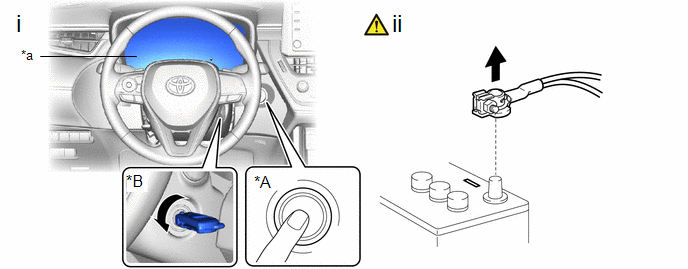

*A | w/ Smart Key System |
*B | w/o Smart Key System |
|
*a | Illumination off |
- | - |
(1) Check that the ignition switch is off.
(2) Check that the cable is disconnected from the negative (-) auxiliary battery terminal.
CAUTION:
- Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
- If the airbag deploys for any reason, it may cause a serious accident.

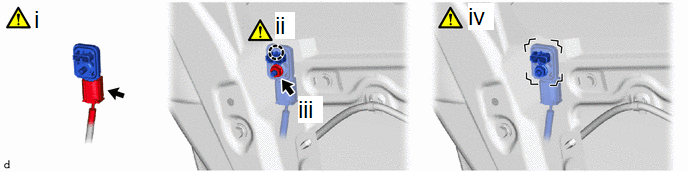

(1) Connect the airbag connector.
NOTICE:
When connecting any airbag connector, take care not to damage the airbag wire harness.
HINT:
Refer to How to Connect or Disconnect Airbag Connector:
Click here
.gif)
(2) Engage the claw to hold the side airbag pressure sensor in place.
NOTICE:
If the side airbag pressure sensor has been dropped, replace it with a new one.
(3) Install a new nut.
Torque:
9.0 N·m {92 kgf·cm, 80 in·lbf}
NOTICE:
- When installing the side airbag pressure sensor, be careful that the SRS wiring does not interfere with or is not pinched between other parts.
- Do not reuse the nut.
(4) Check that there is no looseness in the installation parts of the side airbag pressure sensor.
2. INSTALL FRONT DOOR SERVICE HOLE COVER
3. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY
4. INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)
5. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)
6. INSTALL DOOR ASSIST GRIP COVER
7. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG
8. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
- for Gasoline Model
Click here
- for HEV Model
Click here
9. INSPECT SRS WARNING LIGHT
|
|
Click here |
10. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
HINT:
When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.
Click here
