Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

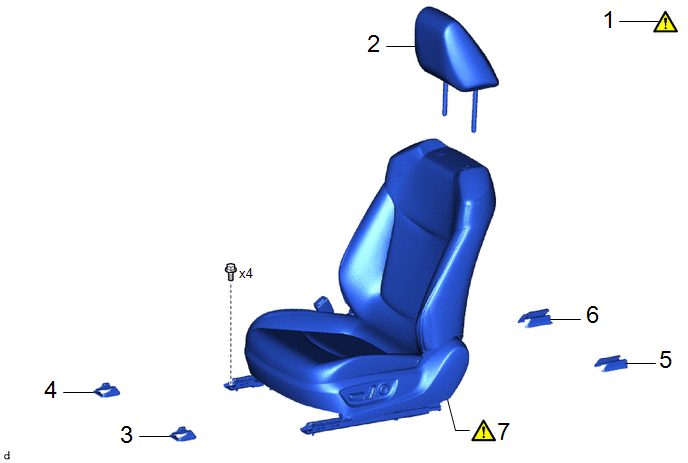

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

PRECAUTION

-

-

-

2

FRONT SEAT HEADREST ASSEMBLY

71910A

-

-

-

3

FRONT SEAT TRACK BRACKET OUTER COVER

72124

-

-

-

4

FRONT SEAT TRACK BRACKET INNER COVER

72128A

-

-

-

5

SEAT TRACK OUTER COVER

72138

-

-

-

6

SEAT TRACK BRACKET INNER COVER

72158

-

-

-

7

FRONT SEAT ASSEMBLY

-

-

-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during front seat assembly removal/installation are shown below.

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

NOTICE:

If a front seat airbag assembly has been deployed, replace the front seat airbag assembly, front seatback frame sub-assembly, separate type front seatback pad, separate type front seatback cover and front seatback pad with cover with the necessary parts in accordance with the extent of the collision damage.

Click here

HINT:

  • When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
    • Learning completes when vehicle is driven

      Effect / Inoperative Function When Necessary Procedures are not Performed

      Necessary Procedures

      Link

      *A: for Gasoline Model

      Front Camera System

      Drivre the vehicle straight ahead at 15 km/h (10mph) or more for 1 second or more.

      Stop and start system *A

      Drive the vehicle until stop and start control is permitted (appoximately 5 to 60 minutes)

    • Learning completes when vehicle is operated normally

      Effect / Inoperative Function When Necessary Procedures are not Performed

      Necessary Procedures

      Link

      Power door lock control system

      • Back door opener

      Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

      Power back door system

      Fully close the back door by hand.

      HINT:

      Initialization is not necessary if the above procedures are performed while the back door is closed.

      Air conditioning system

      After the ignition switch is turned to ON, the servo motor standard position is recognized.

      -

  • Power seat is available only on the driver side.

PROCEDURE

1. PRECAUTION

CAUTION:

Be sure to read Precaution thoroughly before servicing.

NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

2. REMOVE FRONT SEAT HEADREST ASSEMBLY

Click here

3. REMOVE FRONT SEAT TRACK BRACKET OUTER COVER

Click here

4. REMOVE FRONT SEAT TRACK BRACKET INNER COVER

Click here

5. REMOVE SEAT TRACK OUTER COVER

Click here

6. REMOVE SEAT TRACK BRACKET INNER COVER

Click here

7. REMOVE FRONT SEAT ASSEMBLY

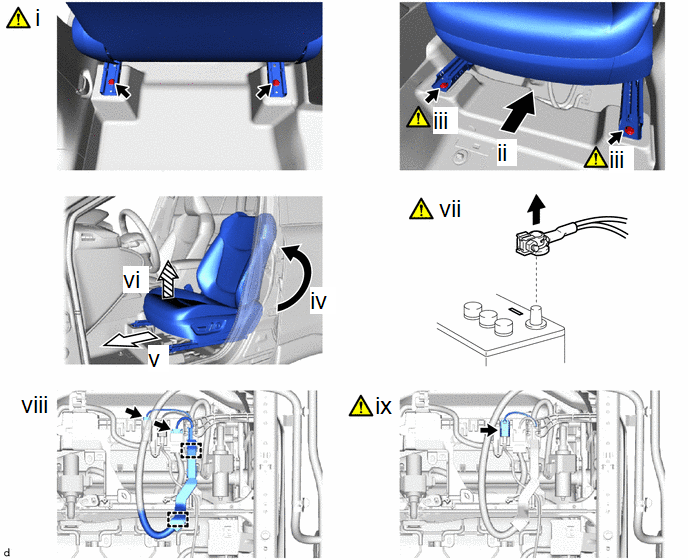

(1) Using a T50 "TORX" socket wrench, remove the 2 bolts on the rear side of the front seat assembly.

(2) Operate the slide and vertical power seat switch knob to move the front seat assembly to the rearmost position.

(3) Using a T50 "TORX" socket wrench, remove the 2 bolts on the front side of the front seat assembly.

(4) Operate the reclining power seat switch knob to move the seatback to the upright position.

(5) Operate the slide and vertical power seat switch knob to move the front seat assembly to the center position.

(6) Operate the slide and vertical power seat switch knob to move the front seat assembly to the uppermost position.

(7) Disconnect the cable from the negative (-) auxiliary battery terminal.

  • for Gasoline Model

    Click here

  • for HEV Model

    Click here

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

(8) Disconnect the 2 connectors and disengage the clamps under the front seat assembly.

(9) Disconnect the front seat airbag assembly connector under the front seat assembly.

NOTICE:

When disconnecting any airbag connector, take care not to damage the airbag wire harness.

HINT:

Refer to How to Connect or Disconnect Airbag Connector:

Click here

(1) Remove the front seat assembly.

NOTICE:

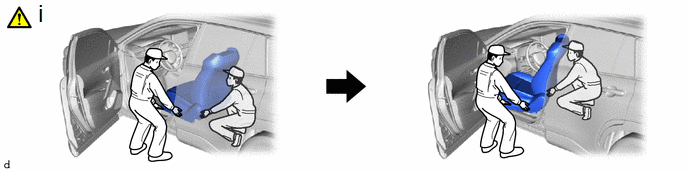

  • 2 or more people are required when carrying the front seat assembly out of the vehicle.
  • Protect the front seat leg.
  • Be careful not to damage the front seat assembly, body exterior or body interior.
