Toyota Corolla Cross: Reassembly

Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Interior / Seat / Front Seat Assembly (for Power Seat) / Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

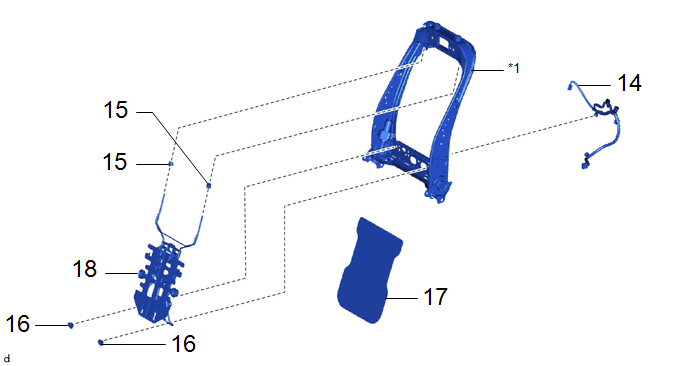

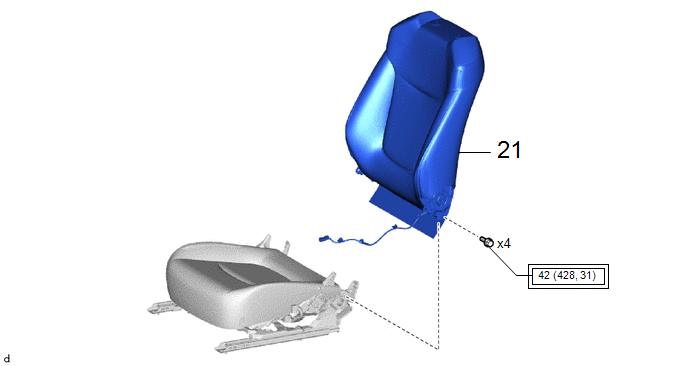

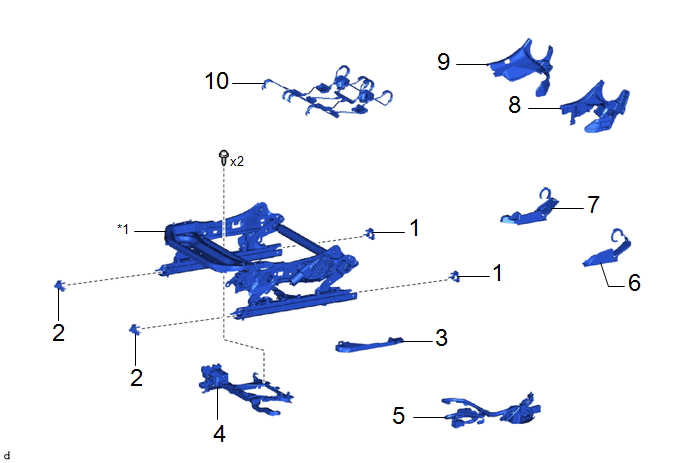

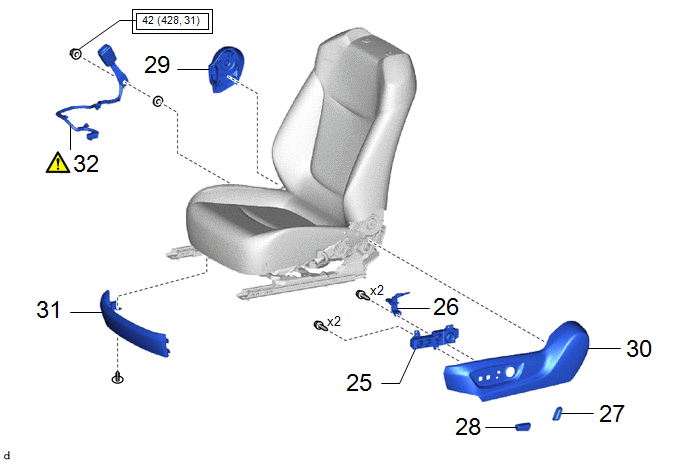

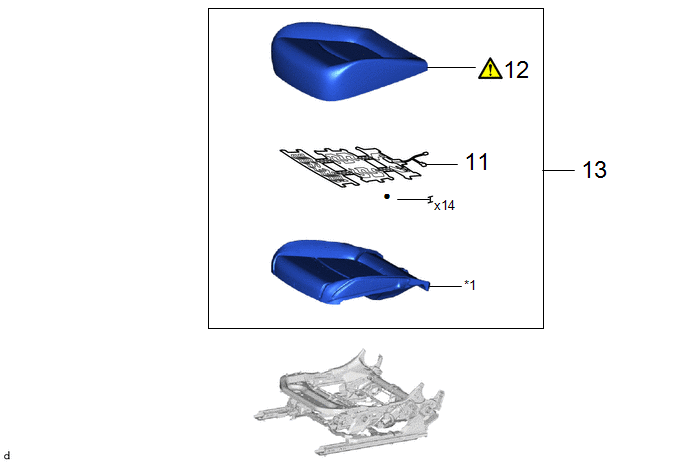

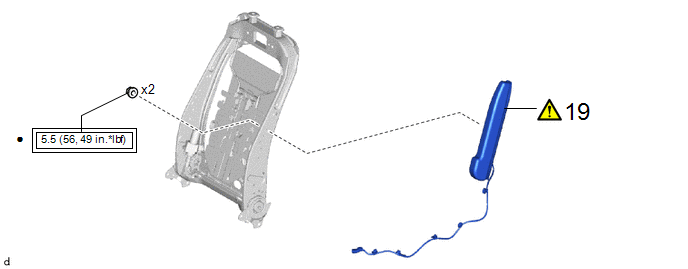

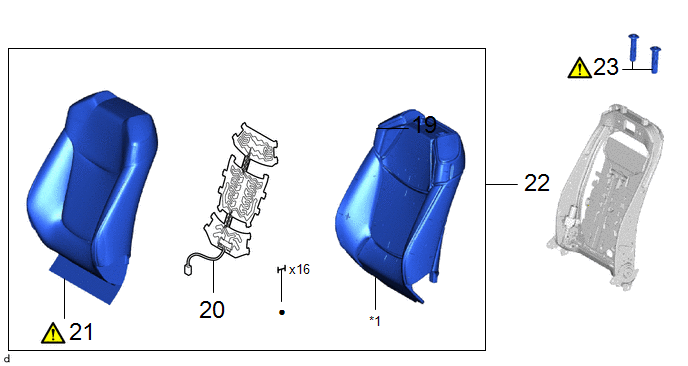

COMPONENTS (REASSEMBLY)

Procedure

Part Name Code

1

SEAT TRACK REAR UPPER COVER

72125V

-

-

-

2

SEAT TRACK UPPER RAIL COVER

72266

-

-

-

3

FRONT SEAT LOWER CUSHION SHIELD

71874C

-

-

-

4

FRONT SEAT CUSHION WIRE HARNESS HOLDER

7181B

-

-

-

5

FRONT SEAT WIRE

82192

-

-

-

6

FRONT SEAT LOWER CUSHION SHIELD LH

71874A

-

-

-

7

FRONT SEAT LOWER CUSHION SHIELD RH

71873U

-

-

-

8

SEAT RECLINING ADJUSTER INSIDE COVER LH

71876G

-

-

-

9

SEAT RECLINING ADJUSTER INSIDE COVER RH

71875G

-

-

-

10

FRONT SEAT CUSHION SPRING SUB-ASSEMBLY

71052A

-

-

-

*1

FRONT SEAT ADJUSTER ASSEMBLY

-

-

Procedure

Part Name Code

11

FRONT SEAT CUSHION HEATER

87510M

-

-

-

12

SEPARATE TYPE FRONT SEAT CUSHION COVER

71072S

-

-

13

SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

-

-

-

-

*1

SEPARATE TYPE FRONT SEAT CUSHION PAD

-

-

●

Non-reusable part

-

-

Procedure

Part Name Code

14

NO. 2 FRONT SEAT WIRE

8219B

-

-

-

15

FRONT SEATBACK HOOK

71759B

-

-

-

16

FRONT SEATBACK EDGE PROTECTOR

71587

-

-

-

17

FRONT SEATBACK FELT

79977A

-

-

-

18

LUMBAR SUPPORT ADJUSTER ASSEMBLY

72760D

-

-

-

*1

FRONT SEATBACK FRAME SUB-ASSEMBLY

-

-

Procedure

Part Name Code

19

FRONT SEAT AIRBAG ASSEMBLY

73920A

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

●

Non-reusable part

Procedure

Part Name Code

20

FRONT SEATBACK HEATER ASSEMBLY

87510K

-

-

-

21

SEPARATE TYPE FRONT SEATBACK COVER

71072S

-

-

22

SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

-

-

-

-

23

FRONT SEAT HEADREST SUPPORT

71931

-

-

*1

SEPARATE TYPE FRONT SEATBACK PAD

-

-

●

Non-reusable part

-

-

Procedure

Part Name Code

24

SEPARATE TYPE FRONT SEATBACK ASSEMBLY

-

-

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

-

-

Procedure

Part Name Code

25

FRONT POWER SEAT SWITCH

84922

-

-

-

26

SEAT ADJUSTER SHIELD CLAMP BRACKET

72714

-

-

-

27

RECLINING POWER SEAT SWITCH KNOB

84921A

-

-

-

28

SLIDE AND VERTICAL POWER SEAT SWITCH KNOB

84921B

-

-

-

29

FRONT SEAT INNER CUSHION SHIELD

71862

-

-

-

30

FRONT SEAT CUSHION SHIELD

71812D

-

-

-

31

FRONT SEAT FRONT CUSHION SHIELD

71868N

-

-

-

32

FRONT SEAT INNER BELT ASSEMBLY

73240

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

-

-

CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

HINT:

Power seat is available only on the driver side.

PROCEDURE

1. INSTALL SEAT TRACK REAR UPPER COVER

2. INSTALL SEAT TRACK UPPER RAIL COVER

3. INSTALL FRONT SEAT LOWER CUSHION SHIELD

4. INSTALL FRONT SEAT CUSHION WIRE HARNESS HOLDER

5. INSTALL FRONT SEAT WIRE

6. INSTALL FRONT SEAT LOWER CUSHION SHIELD LH

7. INSTALL FRONT SEAT LOWER CUSHION SHIELD RH

8. INSTALL SEAT RECLINING ADJUSTER INSIDE COVER LH

9. INSTALL SEAT RECLINING ADJUSTER INSIDE COVER RH

10. INSTALL FRONT SEAT CUSHION SPRING SUB-ASSEMBLY

11. INSTALL FRONT SEAT CUSHION HEATER

12. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER

Click here

13. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

14. INSTALL NO. 2 FRONT SEAT WIRE

15. INSTALL FRONT SEATBACK HOOK

16. INSTALL FRONT SEATBACK EDGE PROTECTOR

17. INSTALL FRONT SEATBACK FELT

18. INSTALL LUMBAR SUPPORT ADJUSTER ASSEMBLY

19. INSTALL FRONT SEAT AIRBAG ASSEMBLY

Click here

20. INSTALL FRONT SEATBACK HEATER ASSEMBLY

21. INSTALL SEPARATE TYPE FRONT SEATBACK COVER

Click here

22. INSTALL SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

23. INSTALL FRONT SEAT HEADREST SUPPORT

Click here

24. INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY

Torque:

42 N·m {428 kgf·cm, 31 ft·lbf}

25. INSTALL FRONT POWER SEAT SWITCH

26. INSTALL SEAT ADJUSTER SHIELD CLAMP BRACKET

27. INSTALL RECLINING POWER SEAT SWITCH KNOB

28. INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB

29. INSTALL FRONT SEAT INNER CUSHION SHIELD

30. INSTALL FRONT SEAT CUSHION SHIELD

31. INSTALL FRONT SEAT FRONT CUSHION SHIELD

32. INSTALL FRONT SEAT INNER BELT ASSEMBLY

Click here
