Toyota Corolla Cross: Disassembly

Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Interior / Seat / Front Seat Assembly (for Power Seat) / Disassembly

DISASSEMBLY

CAUTION / NOTICE / HINT

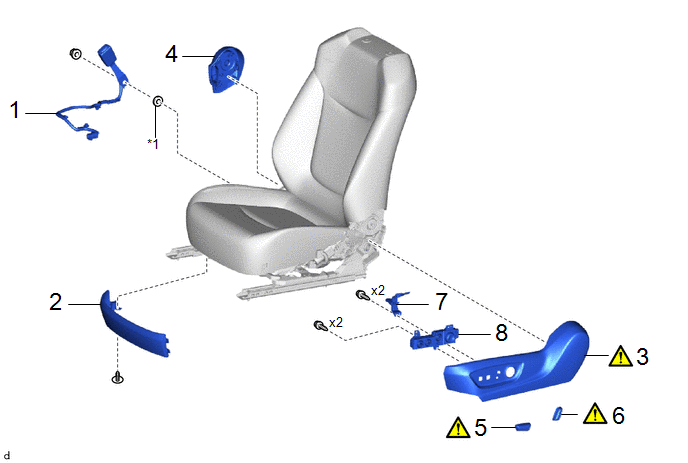

COMPONENTS (DISASSEMBLY)

Procedure

Part Name Code

1

FRONT SEAT INNER BELT ASSEMBLY

73240

-

-

-

2

FRONT SEAT FRONT CUSHION SHIELD

71868N

-

-

-

3

FRONT SEAT CUSHION SHIELD

71812D

-

-

4

FRONT SEAT INNER CUSHION SHIELD

71862

-

-

-

5

SLIDE AND VERTICAL POWER SEAT SWITCH KNOB

84921B

-

-

6

RECLINING POWER SEAT SWITCH KNOB

84921A

-

-

7

SEAT ADJUSTER SHIELD CLAMP BRACKET

72714

-

-

-

8

FRONT POWER SEAT SWITCH

84922

-

-

-

*1

Front Seat Belt Anchor Plate

-

-

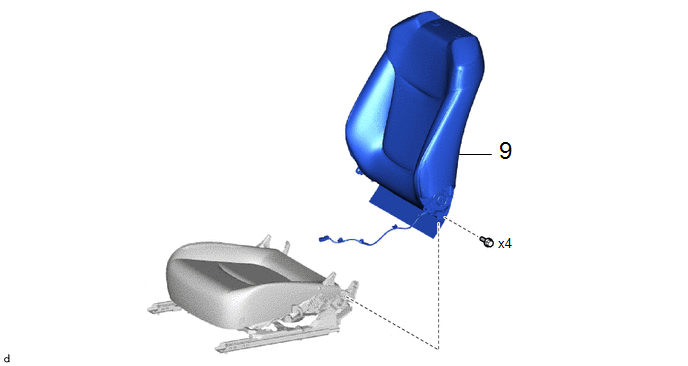

Procedure

Part Name Code

9

SEPARATE TYPE FRONT SEATBACK ASSEMBLY

-

-

-

-

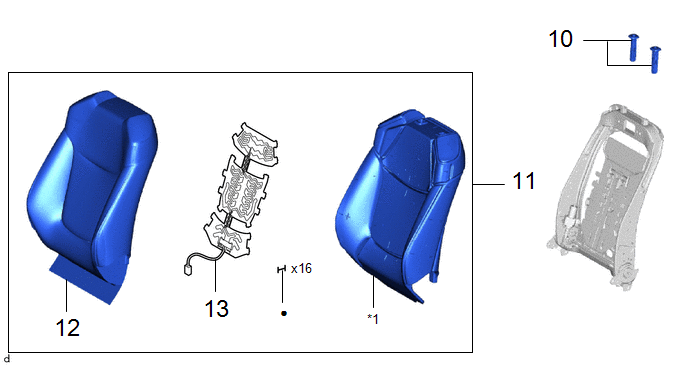

Procedure

Part Name Code

10

FRONT SEAT HEADREST SUPPORT

71931

-

-

-

11

SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

-

-

-

-

12

SEPARATE TYPE FRONT SEATBACK COVER

7181B

-

-

-

13

FRONT SEATBACK HEATER ASSEMBLY

87510N

-

-

-

*1

SEPARATE TYPE FRONT SEATBACK PAD

-

-

●

Non-reusable part

-

-

Procedure

Part Name Code

14

FRONT SEAT AIRBAG ASSEMBLY

73920A

-

-

●

Non-reusable part

-

-

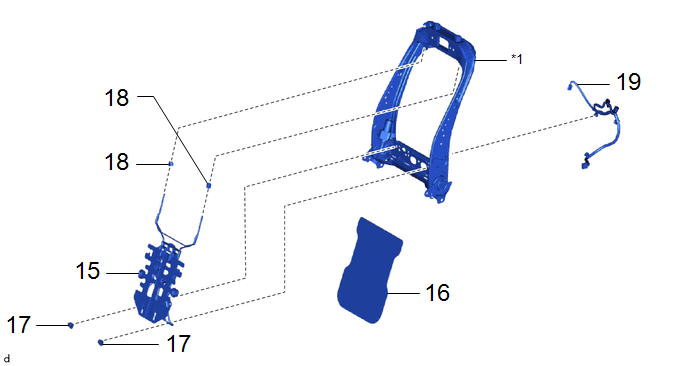

Procedure

Part Name Code

15

LUMBAR SUPPORT ADJUSTER ASSEMBLY

72760D

-

-

-

16

FRONT SEATBACK FELT

79977A

-

-

-

17

FRONT SEATBACK EDGE PROTECTOR

71587

-

-

-

18

FRONT SEATBACK HOOK

71759B

-

-

-

19

NO. 2 FRONT SEAT WIRE

8219B

-

-

-

*1

FRONT SEATBACK FRAME SUB-ASSEMBLY

-

-

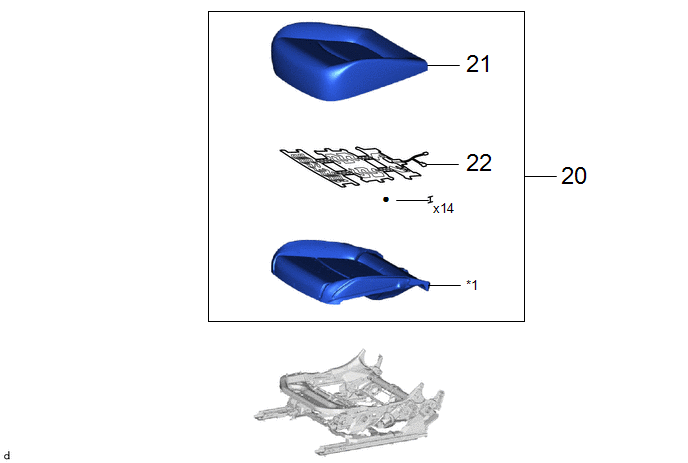

Procedure

Part Name Code

20

SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

-

-

-

-

21

SEPARATE TYPE FRONT SEAT CUSHION COVER

71072S

-

-

-

22

FRONT SEAT CUSHION HEATER

87510N

-

-

-

*1

SEPARATE TYPE FRONT SEAT CUSHION PAD

-

-

●

Non-reusable part

-

-

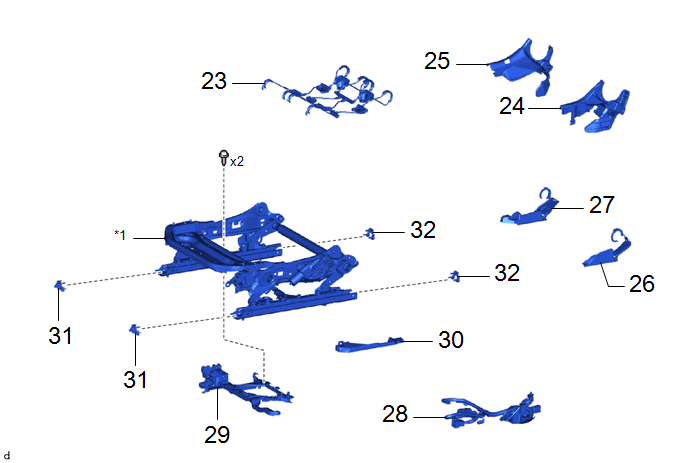

Procedure

Part Name Code

23

FRONT SEAT CUSHION SPRING SUB-ASSEMBLY

71052A

-

-

-

24

SEAT RECLINING ADJUSTER INSIDE COVER LH

71876G

-

-

-

25

SEAT RECLINING ADJUSTER INSIDE COVER RH

71875G

-

-

-

26

FRONT SEAT LOWER CUSHION SHIELD LH

71874A

-

-

-

27

FRONT SEAT LOWER CUSHION SHIELD RH

71873U

-

-

-

28

FRONT SEAT WIRE

82192

-

-

-

29

FRONT SEAT CUSHION WIRE HARNESS HOLDER

7181B

-

-

-

30

FRONT SEAT LOWER CUSHION SHIELD

71874C

-

-

-

31

SEAT TRACK UPPER RAIL COVER

72266

-

-

-

32

SEAT TRACK REAR UPPER COVER

72125V

-

-

-

*1

FRONT SEAT ADJUSTER ASSEMBLY

-

-

CAUTION / NOTICE / HINT

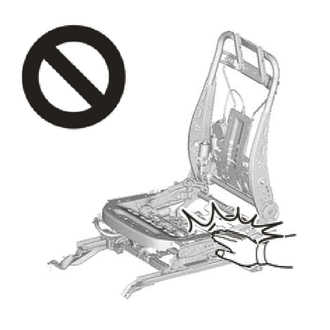

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

HINT:

  • Power seat is available only on the driver side.

PROCEDURE

1. REMOVE FRONT SEAT INNER BELT ASSEMBLY

Click here

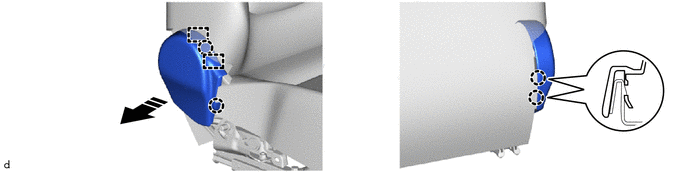

2. REMOVE FRONT SEAT FRONT CUSHION SHIELD

Remove in this Direction (1)

Remove in this Direction (2)

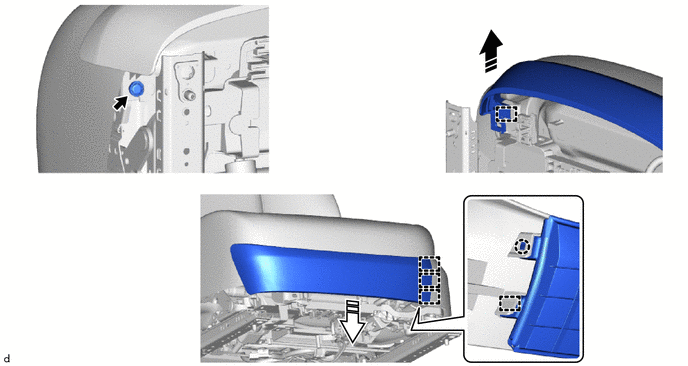

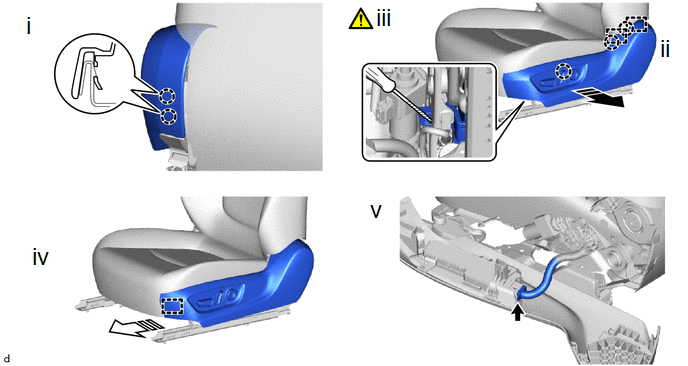

3. REMOVE FRONT SEAT CUSHION SHIELD

Remove in this Direction (1)

Remove in this Direction (2)

(1) Disengage the claws.

(2) Disengage the claw and guides.

(3) Using a screwdriver with its tip wrapped with protective tape, disengage the claw as shown in the illustration.

HINT:

Tape the thin-bladed screwdriver tip before use.

(4) Disengage the guide as shown in the illustration.

(5) Disconnect the connector to remove the front seat cushion shield.

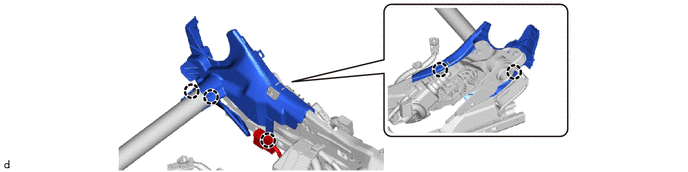

4. REMOVE FRONT SEAT INNER CUSHION SHIELD

Remove in this Direction

-

-

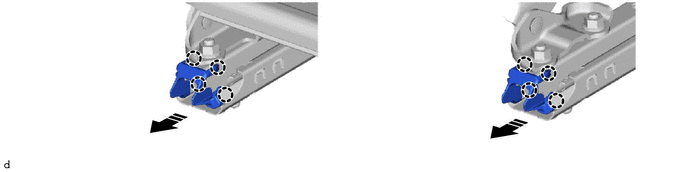

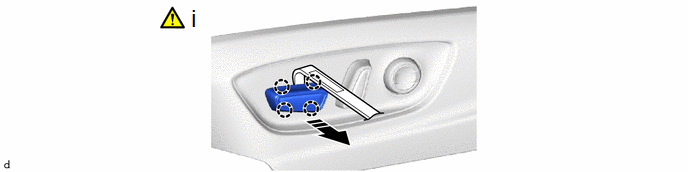

5. REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB

Remove in this Direction

-

-

(1) Using a moulding remover A, disengage the claws to remove the slide and vertical power seat switch knob.

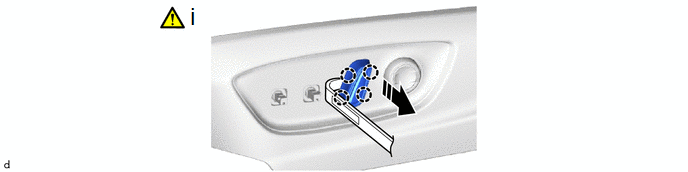

6. REMOVE RECLINING POWER SEAT SWITCH KNOB

Remove in this Direction

-

-

(1) Using a moulding remover A, disengage the claws to remove the reclining power seat switch knob.

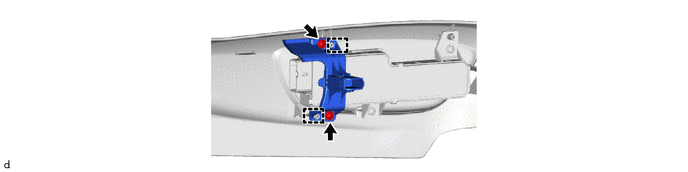

7. REMOVE SEAT ADJUSTER SHIELD CLAMP BRACKET

8. REMOVE FRONT POWER SEAT SWITCH

Click here

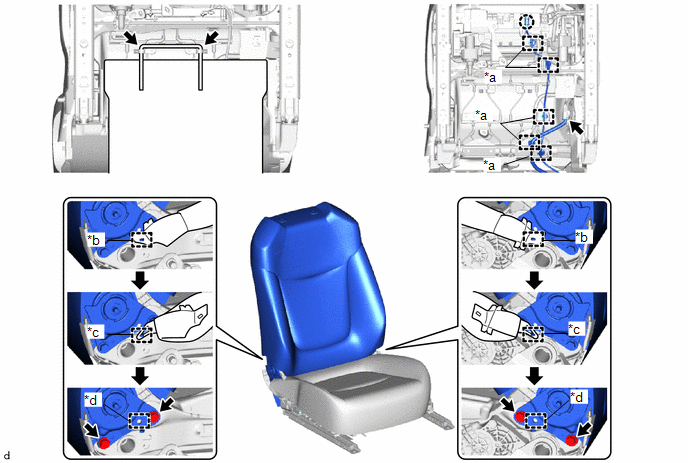

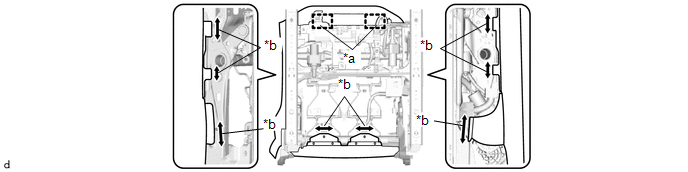

9. REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY

*a

Clamp

*b

Hook (A)

*c

Hook (B)

*d

Guide

10. REMOVE FRONT SEAT HEADREST SUPPORT

Click here

11. REMOVE SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

Click here

12. REMOVE SEPARATE TYPE FRONT SEATBACK COVER

Click here

13. REMOVE FRONT SEATBACK HEATER ASSEMBLY

Click here

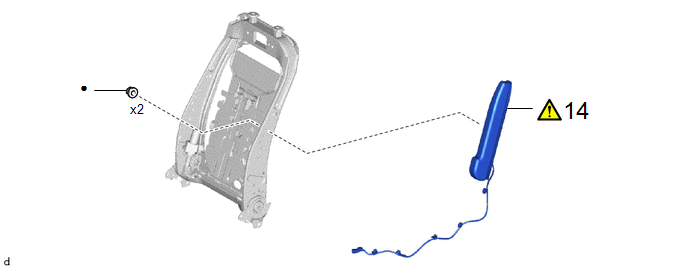

14. REMOVE FRONT SEAT AIRBAG ASSEMBLY

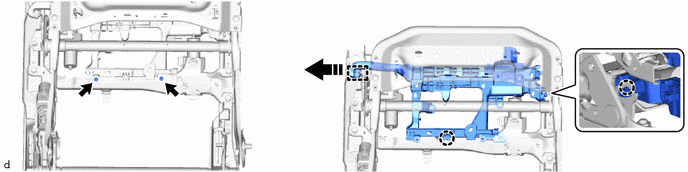

15. REMOVE LUMBAR SUPPORT ADJUSTER ASSEMBLY

Click here

16. REMOVE FRONT SEATBACK FELT

Click here

17. REMOVE FRONT SEATBACK EDGE PROTECTOR

Click here

18. REMOVE FRONT SEATBACK HOOK

Click here

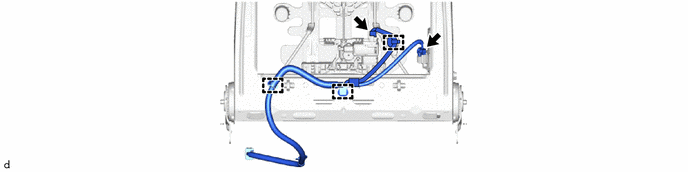

19. REMOVE NO. 2 FRONT SEAT WIRE

20. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

*a

Hook (A)

*b

Hook (B)

21. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER

Click here

22. REMOVE SEAT CUSHION HEATER

Click here

23. REMOVE FRONT SEAT CUSHION SPRING SUB-ASSEMBLY

Click here

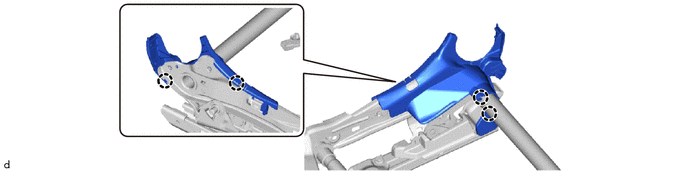

24. REMOVE SEAT RECLINING ADJUSTER INSIDE COVER LH

25. REMOVE SEAT RECLINING ADJUSTER INSIDE COVER RH

26. REMOVE FRONT SEAT LOWER CUSHION SHIELD LH

Click here

27. REMOVE FRONT SEAT LOWER CUSHION SHIELD RH

Click here

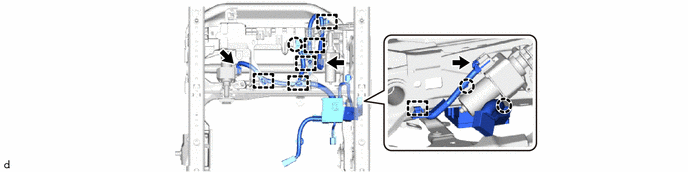

28. REMOVE FRONT SEAT WIRE

29. REMOVE FRONT SEAT CUSHION WIRE HARNESS HOLDER

Remove in this Direction

-

-

30. REMOVE FRONT SEAT LOWER CUSHION SHIELD

Remove in this Direction

-

-

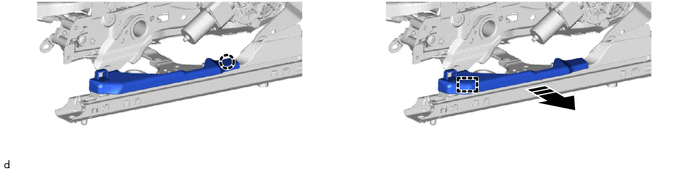

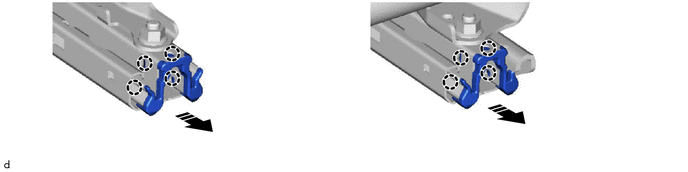

31. REMOVE SEAT TRACK UPPER RAIL COVER

Remove in this Direction

-

-

32. REMOVE SEAT TRACK REAR UPPER COVER

Remove in this Direction

-

-
