Toyota Corolla Cross: Removal
REMOVAL
CAUTION / NOTICE / HINT

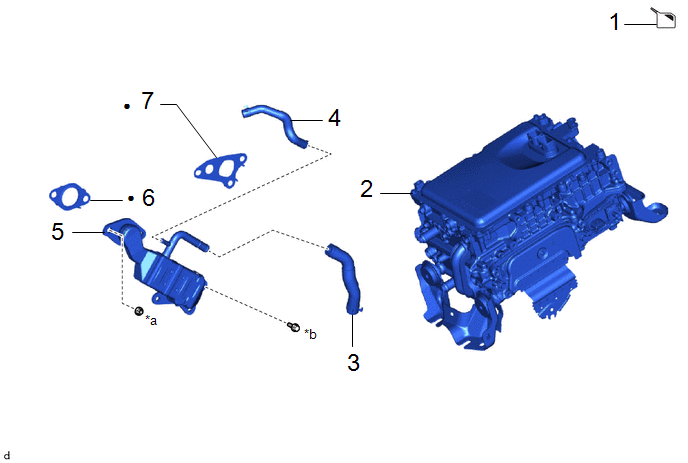

COMPONENTS (REMOVAL)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | DRAIN ENGINE COOLANT |
- | - |
|
- |
| 2 |
INVERTER WITH CONVERTER ASSEMBLY |
G92A0 | - |
- | - |
|
3 | NO. 3 WATER BY-PASS HOSE |
16267 | - |
- | - |
|
4 | NO. 4 WATER BY-PASS HOSE |
16281 | - |
- | - |
|
5 | EGR COOLER ASSEMBLY |
25680 | - |
- | - |
|
6 | EGR VALVE GASKET |
25627 | - |
- | - |
|
7 | NO. 1 EGR COOLER GASKET |
25685 | - |
- | - |
|
*a | x2 or x3 |
*b | x3 or x2 |
|
● | Non-reusable part |
- | - |
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during EGR cooler assembly removal/installation are shown below.
Necessary Procedures After Parts Removed/Installed/Replaced|
Replaced Part or Performed Procedure |
Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed |
Link |
|---|---|---|---|
| Gas leaks from exhaust system is repaired |
Inspection after repair |
|
|
NOTICE:
After the ignition switch is turned off, the radio and display receiver assembly records various types of memory and settings. As a result, after turning the ignition switch off, make sure to wait at least 120 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal.
HINT:
When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
- Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed
Necessary Procedures
Link
Front Camera System
Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.
.gif)
- Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed
Necessary Procedures
Link
Power door lock control system
- Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.
Power back door system
Fully close the back door by hand.
HINT:
Initialization is not necessary if the above procedures are performed while the back door is closed.
Air conditioning system
After the ignition switch is turned to ON, the servo motor standard position is recognized.
-
PROCEDURE
1. DRAIN ENGINE COOLANT (for Engine)
Click here
2. REMOVE INVERTER WITH CONVERTER ASSEMBLY
Click here

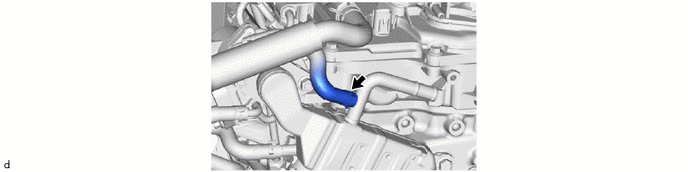

3. DISCONNECT NO. 3 WATER BY-PASS HOSE

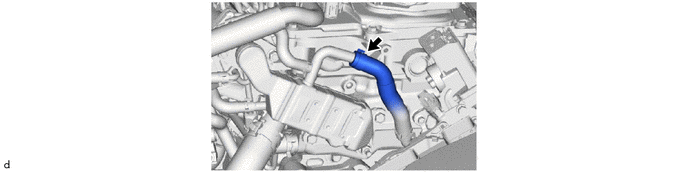

4. DISCONNECT NO. 4 WATER BY-PASS HOSE

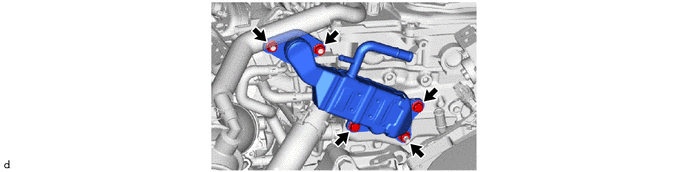

5. REMOVE EGR COOLER ASSEMBLY
[The illustrations are representative examples, and details may differ.]

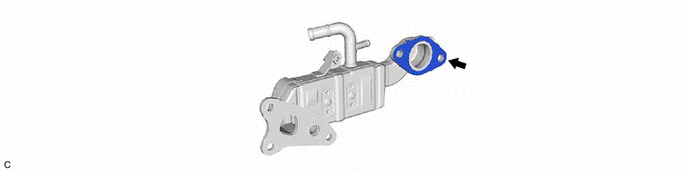

6. REMOVE EGR VALVE GASKET
.png)

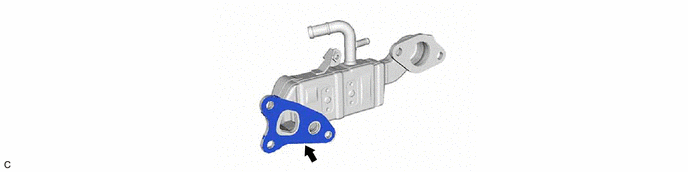

7. REMOVE NO. 1 EGR COOLER GASKET
.png)
