Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

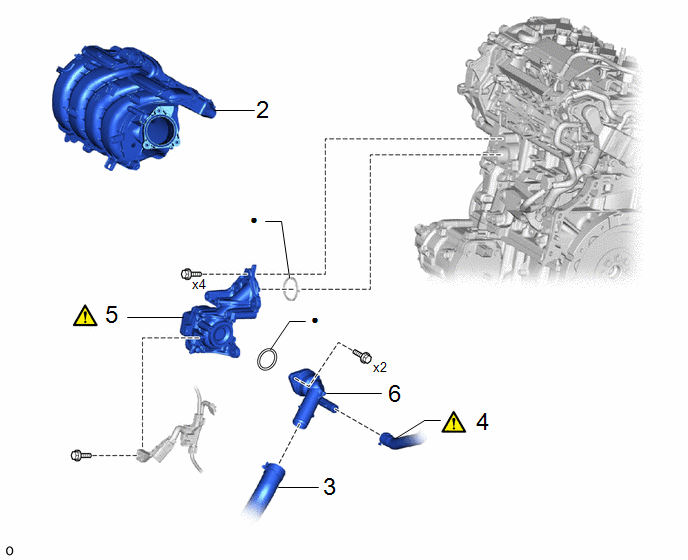

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

NO. 1 ENGINE UNDER COVER ASSEMBLY

51410

-

-

-

Procedure

Part Name Code

2

INTAKE MANIFOLD

17111

-

-

-

3

NO. 2 RADIATOR HOSE

16572D

-

-

-

4

NO. 7 WATER BY-PASS HOSE

-

-

-

5

ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING)

16032

-

-

6

WATER INLET WITH THERMOSTAT SUB-ASSEMBLY

16031

-

-

-

Non-reusable part

-

-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during engine water pump assembly (water inlet housing) removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

  • Replacement of throttle body with motor assembly
  • Cleaning the deposits from the throttle body with motor assembly
  • Gas leak from exhaust system is repaired

Inspection After Repair

  • Poor idle, etc.
  • Engine start function, etc.

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

  • Learning completes when vehicle is driven

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Front Camera System

    Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.

  • Learning completes when vehicle is operated normally

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Power door lock control system

    • Back door opener

    Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

    Power back door system

    Fully close the back door by hand.

    HINT:

    Initialization is not necessary if the above procedures are performed while the back door is closed.

    Air conditioning system

    After the ignition switch is turned to ON, the servo motor standard position is recognized.

    -

PROCEDURE

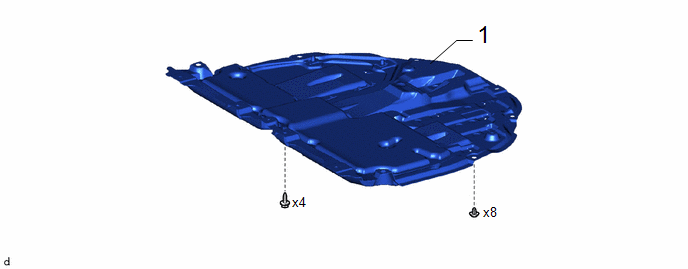

1. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

Click here

2. REMOVE INTAKE MANIFOLD

Click here

3. DISCONNECT NO. 2 RADIATOR HOSE

Click here

4. DISCONNECT NO. 7 WATER BY-PASS HOSE

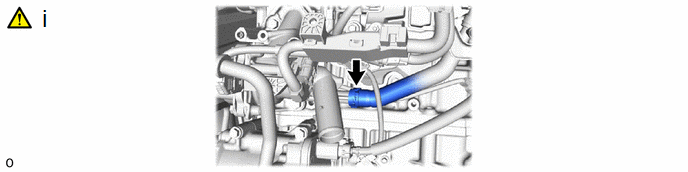

(1) Slide the clip and disconnect the No. 7 water by-pass hose from the water inlet with thermostat sub-assembly

NOTICE:

  • Do not apply force to the water inlet with thermostat sub-assembly when disconnecting the No. 7 water by-pass hose.
  • Do not damage the water inlet with thermostat sub-assembly.

    HINT:

    When disconnecting the No. 7 water by-pass hose, slide the clip, rotate the hose and pull it straight off the pipe.

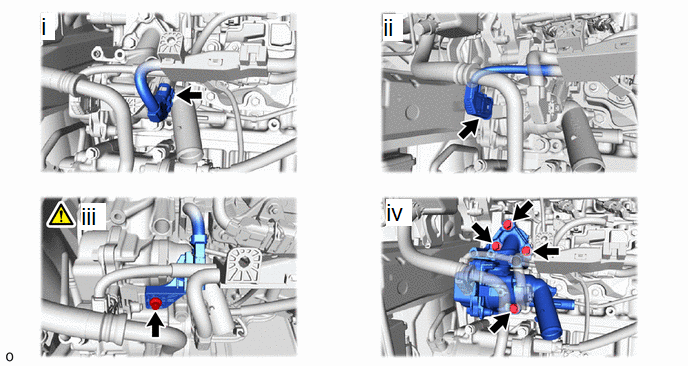

5. REMOVE ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING)

(1) Disconnect the sensor wire connector.

(2) Disconnect the engine water pump assembly (water inlet housing) connector.

(3) Using an 8 mm socket wrench, remove the bolt and disconnect the sensor wire from the engine water pump assembly (water inlet housing).

(4) Remove the 4 bolts and engine water pump assembly (water inlet housing) from the cylinder block assembly.

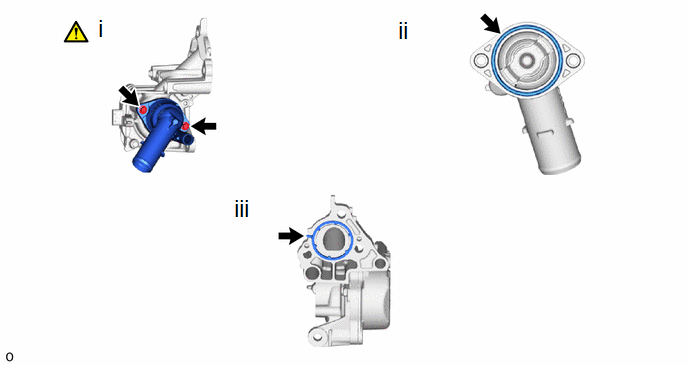

6. REMOVE WATER INLET WITH THERMOSTAT SUB-ASSEMBLY

(1) Using an 8 mm socket wrench, remove the 2 bolts and water inlet with thermostat sub-assembly.

(2) Remove the gasket from the water inlet with thermostat sub-assembly.

(3) Remove the gasket from the engine water pump assembly (water inlet housing).
