PRECAUTION

PRECAUTION FOR VEHICLE WITH SRS AIRBAG AND SEAT BELT PRETENSIONER

(a) Some operations in this section may affect the SRS parts. Prior to performing the corresponding operations, read the precautions regarding the SRS parts.

Click here

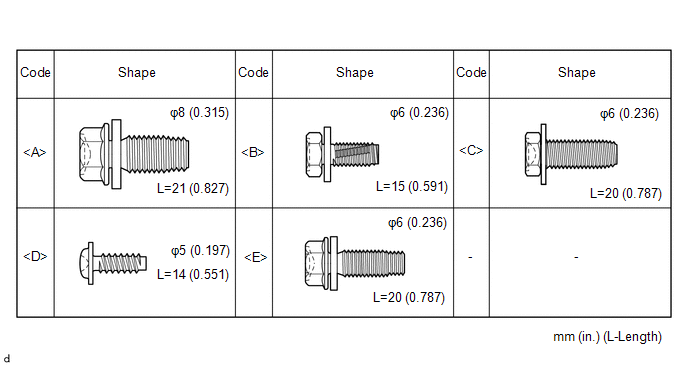

TABLE OF BOLT, SCREW AND NUT

HINT:

All bolts and screws relevant to installing and removing the instrument panel are shown along with their alphabetic code in the table below.
