Toyota Corolla Cross (2022-2025) Service Manual / Vehicle Exterior / Lighting (ext) / Rear Combination Light Assembly / Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

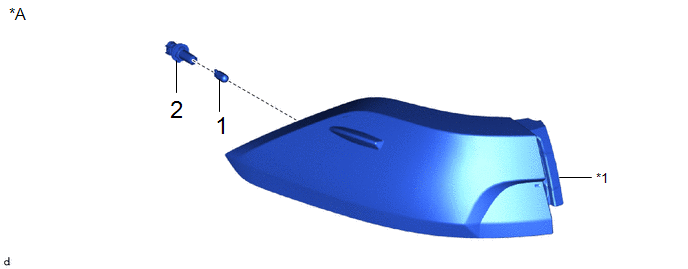

COMPONENTS (REASSEMBLY)

Procedure

Part Name Code

1

REAR SIDE MARKER LIGHT BULB

81550S

-

-

-

2

REAR SIDE MARKER LIGHT SOCKET

-

-

-

-

*A

for Bulb Type Clearance Light

-

-

*1

REAR COMBINATION LIGHT LENS AND BODY

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL REAR SIDE MARKER LIGHT BULB (for Bulb Type Clearance Light)

2. INSTALL REAR SIDE MARKER LIGHT SOCKET (for Bulb Type Clearance Light)
