Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Exterior / Lighting (ext) / Rear Combination Light Assembly / Installation

INSTALLATION

CAUTION / NOTICE / HINT

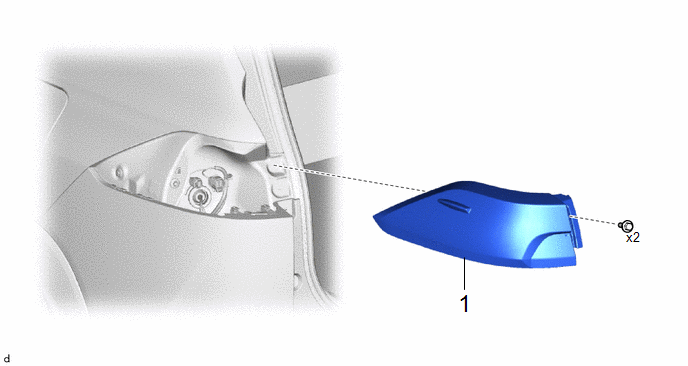

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

REAR COMBINATION LIGHT ASSEMBLY

81560

-

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL REAR COMBINATION LIGHT ASSEMBLY
