Toyota Corolla Cross: Removal

Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Exterior / Lighting (ext) / Rear Light Assembly / Removal

REMOVAL

CAUTION / NOTICE / HINT

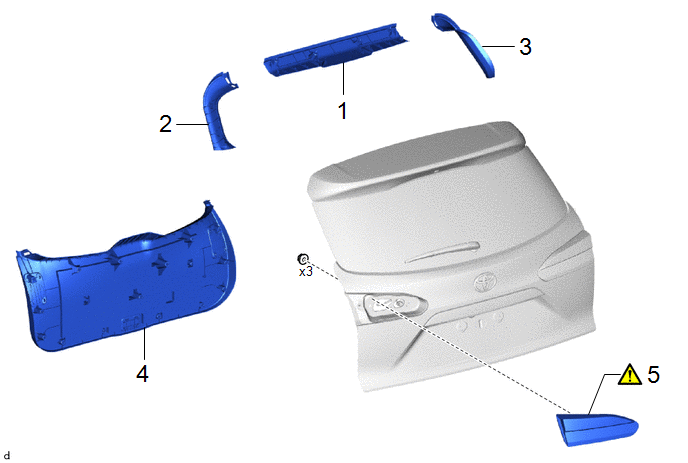

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

BACK DOOR TRIM UPPER PANEL ASSEMBLY

64790B

-

-

-

2

BACK DOOR SIDE GARNISH LH

67938A

-

-

-

3

BACK DOOR SIDE GARNISH RH

67937B

-

-

-

4

BACK DOOR TRIM PANEL ASSEMBLY

64780A

-

-

-

5

REAR LIGHT ASSEMBLY

81590A

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE BACK DOOR TRIM UPPER PANEL ASSEMBLY

Click here

2. REMOVE BACK DOOR SIDE GARNISH LH

Click here

3. REMOVE BACK DOOR SIDE GARNISH RH

(a) Use the same procedure as for the LH side.

4. REMOVE BACK DOOR TRIM PANEL ASSEMBLY

Click here

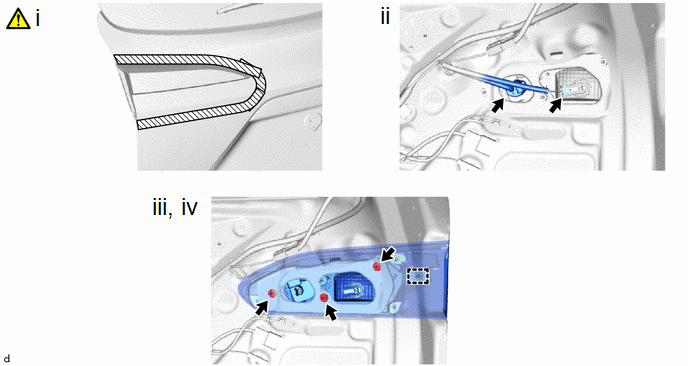

5. REMOVE REAR LIGHT ASSEMBLY

(1) Apply protective tape around the rear light assembly as shown in the illustration.

(2) Disconnect the 2 connectors.

(3) Remove the 3 nuts.

(4) Disengage the pin to remove the rear light assembly.
