Toyota Corolla Cross: Reassembly
REASSEMBLY
CAUTION / NOTICE / HINT

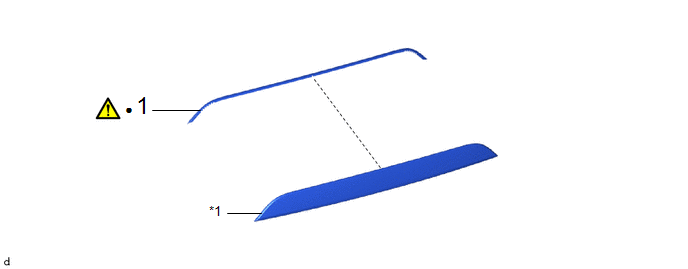

COMPONENTS (REASSEMBLY)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | BACK DOOR OUTSIDE GARNISH PROTECTOR |
76825 |
|
- | - |
.gif)
|
*1 | BACK DOOR OUTSIDE GARNISH |
- | - |
|
● | Non-reusable part |
- | - |
PROCEDURE
1. INSTALL BACK DOOR OUTSIDE GARNISH PROTECTOR
|
|
NOTICE: When installing a new back door outside garnish protector, heat the back door outside garnish using a heat light. |
Standard:
|
Item | Temperature |
|---|---|
|
Back Door Outside Garnish |
20 to 30°C (68 to 86°F) |

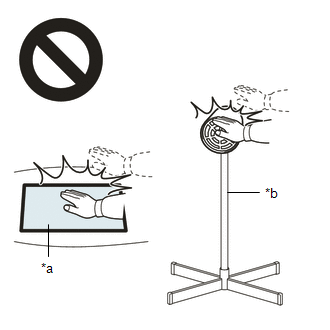

CAUTION:
- Do not touch the heat light and heated parts.
- Touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
|
*a | Heated Part |
|
*b | Heat Light |
NOTICE:
Do not heat the back door outside garnish excessively.
|
*a | Location Line |
- | - |

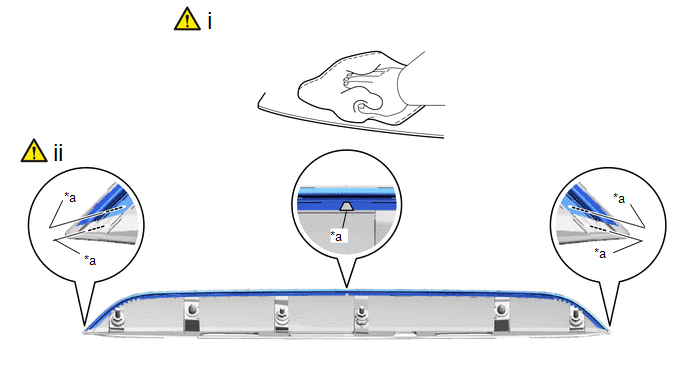

(1) Clean the back door outside garnish.
1. Using a heat light, heat the back door outside garnish surface.
2. Remove any remaining double-sided tape from the back door outside garnish.
3. Wipe off any tape adhesive residue with cleaner.
NOTICE:
- Installing the back door outside garnish protector with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.
- Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.
(2) Install a new back door outside garnish protector.
1. Using a heat light, heat the back door outside garnish.
2. Remove the release paper from the back door outside garnish protector.
HINT:
After removing the release paper, keep the exposed adhesive free from foreign matter.
3. Install the back door outside garnish protector as shown in the illustration.
HINT:
- Make sure that the end of the back door outside garnish protector is between the location lines.
- Press the back door outside garnish protector firmly to install it.
