Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

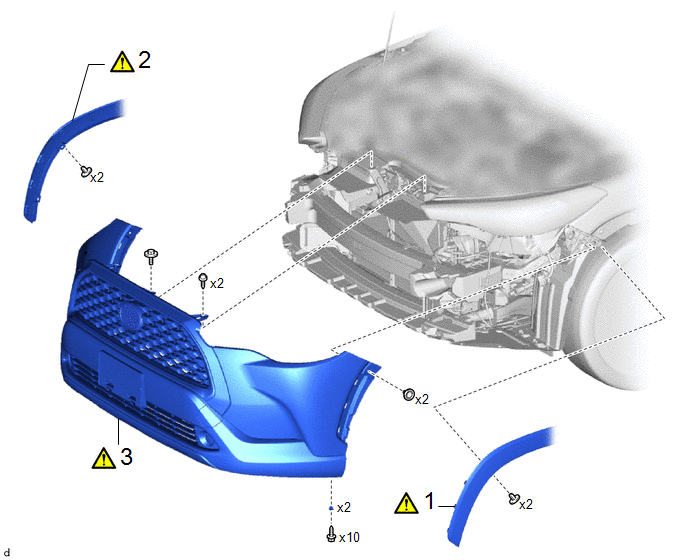

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

FRONT FENDER MOULDING SUB-ASSEMBLY LH

75602A

-

-

2

FRONT FENDER MOULDING SUB-ASSEMBLY RH

75601A

-

-

3

FRONT BUMPER ASSEMBLY

-

-

-

PROCEDURE

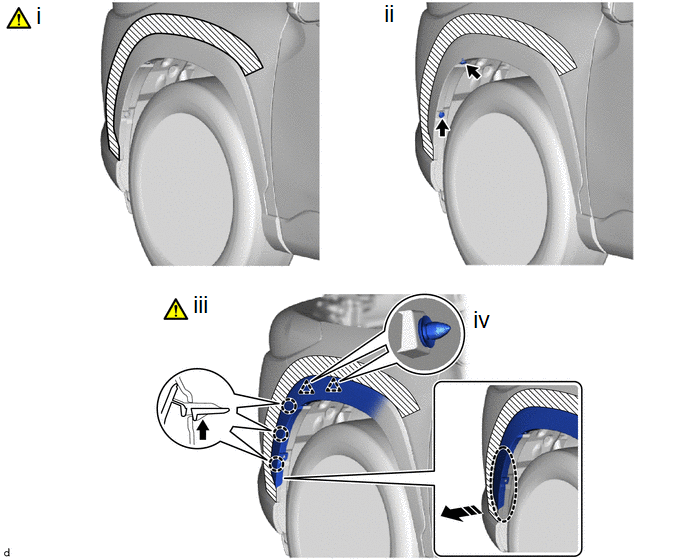

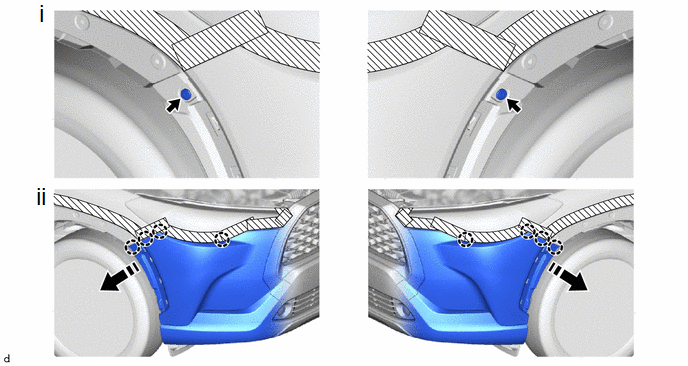

1. SEPARATE FRONT FENDER MOULDING SUB-ASSEMBLY LH

Place Hand Here

Remove in this Direction

(1) Apply protective tape around the front fender moulding sub-assembly LH.

(2) Remove the 2 clips.

(3) Pull back the edge of the front fender liner LH and disengage the claws by pushing the area indicated by the arrow in the illustration with a finger.

NOTICE:

  • Do not apply excessive force when pulling back the front fender liner LH.
  • To avoid damaging the claws, do not forcibly pull the front fender moulding sub-assembly LH.

(4) Disengage the clips and separate the front fender moulding sub-assembly LH.

2. SEPARATE FRONT FENDER MOULDING SUB-ASSEMBLY RH

(a) Use the same procedure as for the LH side.

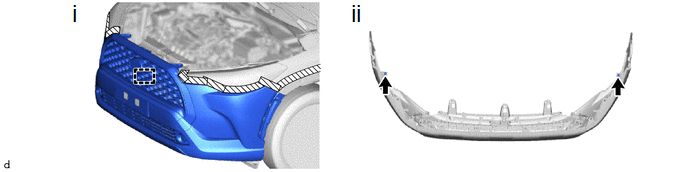

3. REMOVE FRONT BUMPER ASSEMBLY

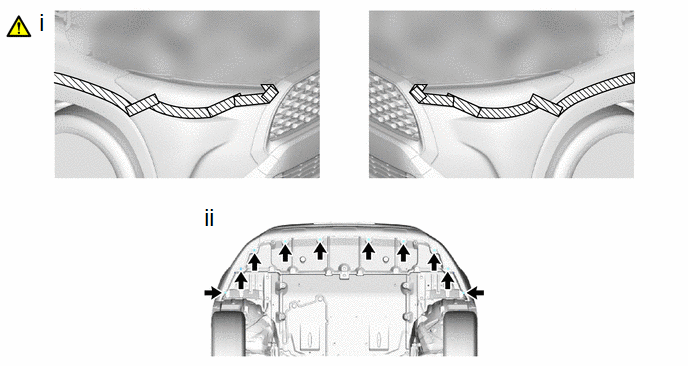

(1) Apply protective tape around the front bumper assembly.

(2) Remove the 10 screws.

Remove in this Direction

-

-

(1) Remove the 2 clips.

(2) Disengage the claws as shown in the illustration.

*A

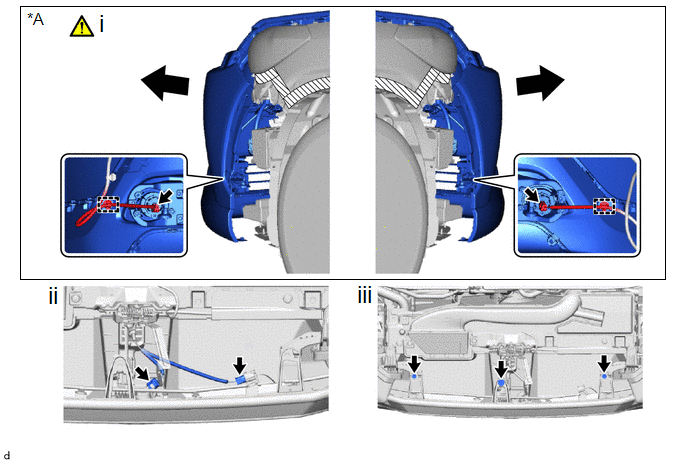

w/ Fog Light

-

-

(1) w/ Fog Light:

1. Pull back the side of the front bumper assembly.

NOTICE:

Do not apply excessive force when pulling back the front bumper assembly.

2. Disconnect the 2 connectors and disengage the clamps.

(2) Disconnect the 2 connectors.

(3) Remove the 2 screws and bolt.

(1) Disengage the guide to remove the front bumper assembly.

(2) Remove the 2 grommets.
