Toyota Corolla Cross: Installation

Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Exterior / Exterior Panels / Trim / Back Door Outside Garnish / Installation

INSTALLATION

CAUTION / NOTICE / HINT

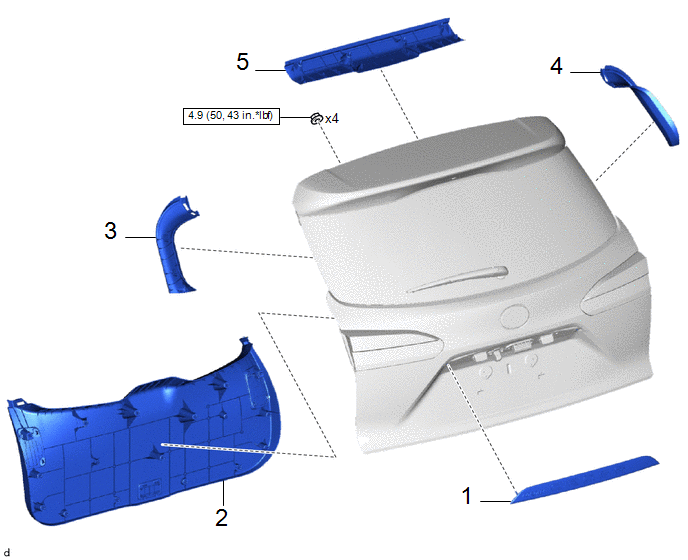

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

-

-

-

-

2

BACK DOOR TRIM PANEL ASSEMBLY

64780A

-

-

-

3

BACK DOOR SIDE GARNISH LH

67938A

-

-

-

4

BACK DOOR SIDE GARNISH RH

67937B

-

-

-

5

BACK DOOR TRIM UPPER PANEL ASSEMBLY

64790B

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

CAUTION / NOTICE / HINT

PROCEDURE

1. INSTALL BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

Torque:

4.9 N·m {50 kgf·cm, 43 in·lbf}

2. INSTALL BACK DOOR TRIM PANEL ASSEMBLY

3. INSTALL BACK DOOR SIDE GARNISH LH

4. INSTALL BACK DOOR SIDE GARNISH RH

5. INSTALL BACK DOOR TRIM UPPER PANEL ASSEMBLY
