Toyota Corolla Cross: Installation
INSTALLATION
CAUTION / NOTICE / HINT

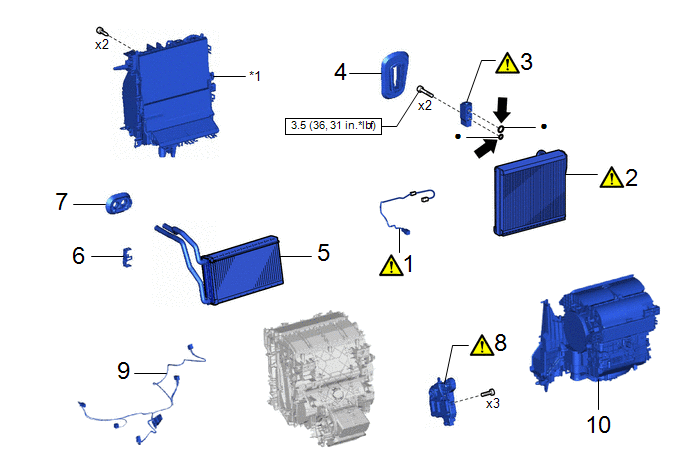

COMPONENTS (INSTALLATION)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | NO. 1 COOLER THERMISTOR |
88625 |
|
- | - |
|
2 | NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY |
88501 |
|
- | - |
|
3 | COOLER EXPANSION VALVE |
88515 |
|
- | - |
|
4 | COOLER PIPE GROMMET |
88897K | - |
- | - |
|
5 | HEATER RADIATOR UNIT SUB-ASSEMBLY |
87107A | - |
- | - |
|
6 | HEATER CLAMP |
87124B | - |
- | - |
|
7 | HEATER PIPE GROMMET |
88897M | - |
- | - |
|
8 | NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY |
87050C |
|
- | - |
|
9 | AIR CONDITIONING HARNESS ASSEMBLY |
82210K | - |
- | - |
|
10 | BLOWER ASSEMBLY |
87130D | - |
- | - |
|
*1 | UPPER HEATER CASE |
- | - |
.png) |
N*m (kgf*cm, ft.*lbf): Specified torque |
● | Non-reusable part |
.png) |
for Gasoline Model: Compressor oil ND-OIL 12 or equivalent for HEV Model: Compressor oil ND-OIL 11 or equivalent |
- | - |
PROCEDURE
1. INSTALL NO. 1 COOLER THERMISTOR
|

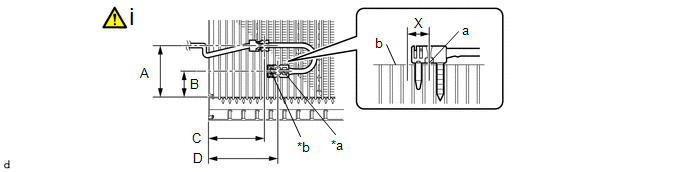

*a | Securing Part |
*b | Sensor Part |
(1) Install the No. 1 cooler thermistor as shown in the illustration.
Installation Position:
|
Part | Length |
Part | Length |
|---|---|---|---|
|
A | 45 to 55 mm (1.77 to 2.17 in.) |
B | 23 to 27 mm (0.906 to 1.06 in.) |
|
C | 54.4 mm (2.14 in.) |
D | 61.1 mm (2.41 in.) |
NOTICE:
- Be sure to insert the No. 1 cooler thermistor only once because reinserting it into the same position will not allow it to be firmly secured.
- When reusing the No. 1 cooler evaporator sub-assembly, insert the No. 1 cooler thermistor one row next to the one that has been used previously (X in the illustration).
- After inserting the No. 1 cooler thermistor, do not apply excessive force to the wire.
- Directly insert the No. 1 cooler thermistor until the edge of the plastic case "a" comes into contact with the No. 1 cooler evaporator sub-assembly "b".
2. INSTALL NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY
|
|
Click here |
3. INSTALL COOLER EXPANSION VALVE
|
|
Click here |
4. INSTALL COOLER PIPE GROMMET
5. INSTALL HEATER RADIATOR UNIT SUB-ASSEMBLY
6. INSTALL HEATER CLAMP
7. INSTALL HEATER PIPE GROMMET
8. INSTALL NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY
|
|
Click here |
9. INSTALL AIR CONDITIONING HARNESS ASSEMBLY
10. INSTALL BLOWER ASSEMBLY
Click here .gif)
