Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Exterior / Door / Hatch / Back Door / Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

COMPONENTS (REASSEMBLY)

Procedure

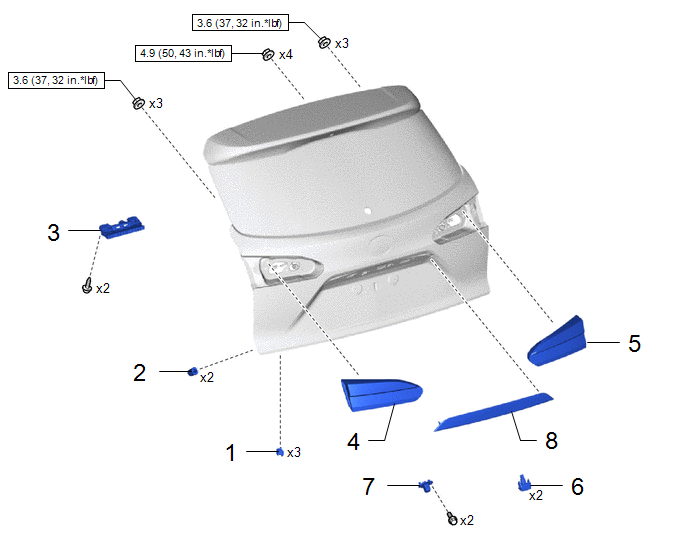

Part Name Code

1

BACK DOOR DUST PROOF SEAL

67837N

-

-

-

2

BACK DOOR PANEL CUSHION

67005B

-

-

-

3

CENTER STOP LIGHT ASSEMBLY

81570

-

-

-

4

REAR LIGHT ASSEMBLY LH

81590A

-

-

-

5

REAR LIGHT ASSEMBLY RH

81580D

-

-

-

6

LICENSE PLATE LIGHT ASSEMBLY

81270

-

-

-

7

REAR TELEVISION CAMERA ASSEMBLY

86790D

-

-

-

8

BACK DOOR OUTSIDE GARNISH

76811

-

-

-

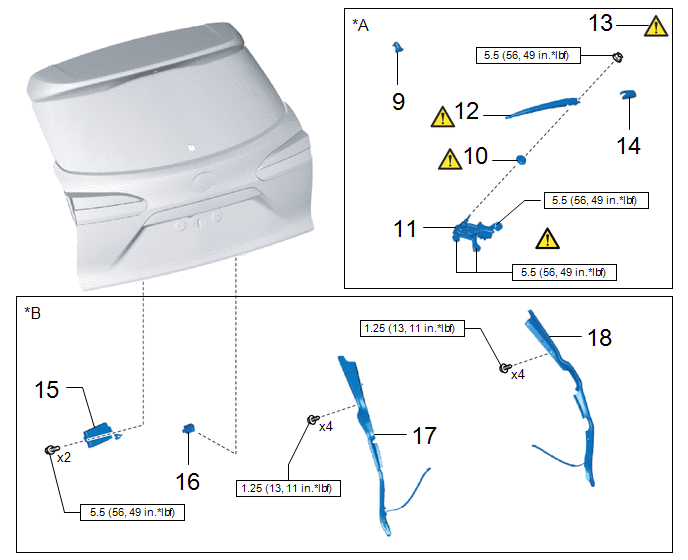

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

Procedure

Part Name Code

9

REAR WASHER NOZZLE

85345R

-

-

-

10

REAR WIPER MOTOR GROMMET

85143R

-

-

11

REAR WIPER MOTOR ASSEMBLY

85110R

-

-

-

12

INSTALL REAR WIPER ARM AND BLADE ASSEMBLY

-

-

-

13

INSPECT REAR WIPER ARM AND BLADE ASSEMBLY

-

-

-

14

REAR WIPER ARM HEAD CAP

85292A

-

-

-

15

MULTIPLEX NETWORK DOOR ECU

89222A

-

-

-

16

POWER BACK DOOR WARNING BUZZER

89747E

-

-

-

17

POWER BACK DOOR SENSOR ASSEMBLY LH

84280D

-

-

-

18

POWER BACK DOOR SENSOR ASSEMBLY RH

84270G

-

-

-

*A

w/ Rear Wiper

*B

w/ Power Back Door

N*m (kgf*cm, ft.*lbf): Specified torque

MP Grease

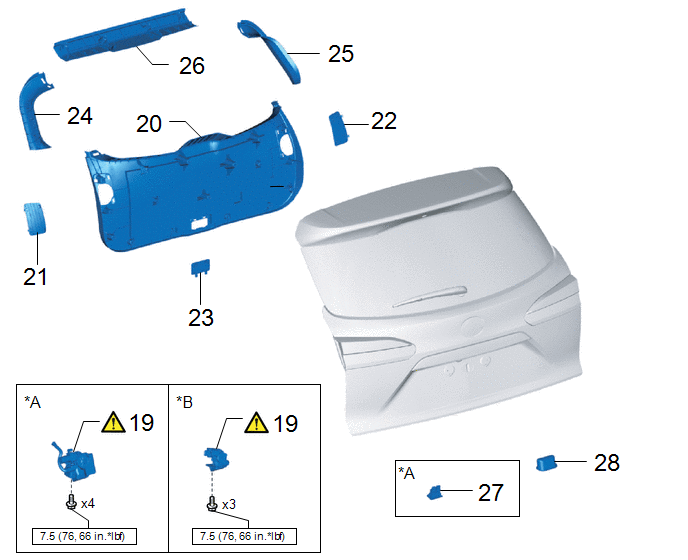

Procedure

Part Name Code

19

BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY

69350P

-

-

20

BACK DOOR TRIM PANEL ASSEMBLY

64780A

-

-

-

21

BACK DOOR SERVICE HOLE COVER LH

67848

-

-

-

22

BACK DOOR SERVICE HOLE COVER RH

67847E

-

-

-

23

NO. 3 BACK DOOR SERVICE HOLE COVER

67767B

-

-

-

24

BACK DOOR SIDE GARNISH LH

67938A

-

-

-

25

BACK DOOR SIDE GARNISH RH

67937B

-

-

-

26

BACK DOOR TRIM UPPER PANEL ASSEMBLY

64790B

-

-

-

27

BACK DOOR INSIDE HANDLE BASE ASSEMBLY

69290G

-

-

-

28

DOOR PULL HANDLE

74811B

-

-

-

*A

w/ Power Back Door

*B

w/o Power Back Door

N*m (kgf*cm, ft.*lbf): Specified torque

MP Grease

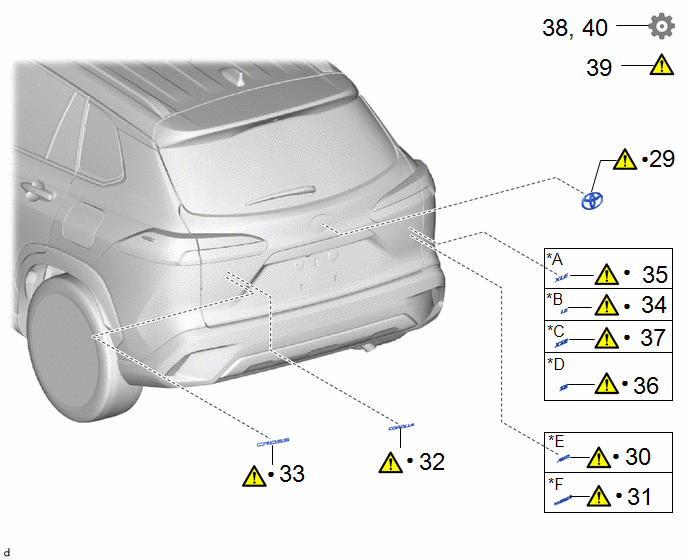

Procedure

Part Name Code

29

SYMBOL EMBLEM

75741E

-

-

30

NO. 4 LUGGAGE COMPARTMENT DOOR NAME PLATE

75444C

-

-

31

BACK DOOR NAME PLATE

75444C

-

-

32

NO. 2 BACK DOOR NAME PLATE

75442A

-

-

33

NO. 5 BACK DOOR NAME PLATE

75445A

-

-

34

NO. 4 BACK DOOR NAME PLATE

75444A

-

-

35

NO. 4 BACK DOOR NAME PLATE

75444A

-

-

36

NO. 4 BACK DOOR NAME PLATE

75444A

-

-

37

NO. 4 BACK DOOR NAME PLATE

75444A

-

-

38

ADJUST REAR TELEVISION CAMERA ASSEMBLY

86790D

-

-

39

INSPECT REAR WASHER NOZZLE

85345R

-

-

40

ADJUST REAR WASHER NOZZLE

85345R

-

-

*A

w/ Grade Mark

*B

for AWD

*C

for Type A

*D

for Type B

*E

for Type C

*F

for Type D

●

Non-reusable part

-

-

PROCEDURE

1. INSTALL BACK DOOR DUST PROOF SEAL

2. INSTALL BACK DOOR PANEL CUSHION

3. INSTALL CENTER STOP LIGHT ASSEMBLY

4. INSTALL REAR LIGHT ASSEMBLY LH

Click here

5. INSTALL REAR LIGHT ASSEMBLY RH

(a) Use the same procedure as for the LH side.

6. INSTALL LICENSE PLATE LIGHT ASSEMBLY

7. INSTALL REAR TELEVISION CAMERA ASSEMBLY

8. INSTALL BACK DOOR OUTSIDE GARNISH

Click here

9. INSTALL REAR WASHER NOZZLE (w/ Rear Wiper)

10. INSTALL REAR WIPER MOTOR GROMMET (w/ Rear Wiper)

Click here

11. INSTALL REAR WIPER MOTOR ASSEMBLY (w/ Rear Wiper)

Click here

12. INSTALL REAR WIPER ARM AND BLADE ASSEMBLY (w/ Rear Wiper)

Click here

13. INSPECT REAR WIPER ARM AND BLADE ASSEMBLY (w/ Rear Wiper)

Click here

14. INSTALL REAR WIPER ARM HEAD CAP (w/ Rear Wiper)

15. INSTALL MULTIPLEX NETWORK DOOR ECU (w/ Power Back Door)

Click here

16. INSTALL POWER BACK DOOR WARNING BUZZER (w/ Power Back Door)

17. INSTALL POWER BACK DOOR SENSOR ASSEMBLY LH (w/ Power Back Door)

Click here

18. INSTALL POWER BACK DOOR SENSOR ASSEMBLY RH (w/ Power Back Door)

(a) Use the same procedure as for the LH side.

19. INSTALL BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY

Click here

20. INSTALL BACK DOOR TRIM PANEL ASSEMBLY

21. INSTALL BACK DOOR SERVICE HOLE COVER LH

22. INSTALL BACK DOOR SERVICE HOLE COVER RH

23. INSTALL NO. 3 BACK DOOR SERVICE HOLE COVER

24. INSTALL BACK DOOR SIDE GARNISH LH

25. INSTALL BACK DOOR SIDE GARNISH RH

26. INSTALL BACK DOOR TRIM UPPER PANEL ASSEMBLY

27. INSTALL BACK DOOR INSIDE HANDLE BASE ASSEMBLY (w/ Power Back Door)

28. INSTALL DOOR PULL HANDLE

29. INSTALL SYMBOL EMBLEM

Click here

30. INSTALL NO. 4 LUGGAGE COMPARTMENT DOOR NAME PLATE (for AWD)

Click here

31. INSTALL LUGGAGE COMPARTMENT DOOR NAME PLATE NO.4 (for HV Model)

Click here

32. INSTALL NO. 2 BACK DOOR NAME PLATE

Click here

33. INSTALL NO. 5 BACK DOOR NAME PLATE

Click here

34. INSTALL NO. 4 BACK DOOR NAME PLATE (for Type A)

Click here

35. INSTALL NO. 4 BACK DOOR NAME PLATE (for Type B)

Click here

36. INSTALL NO. 4 BACK DOOR NAME PLATE (for Type C)

Click here

37. INSTALL NO. 4 BACK DOOR NAME PLATE (for Type D)

Click here

38. ADJUST REAR TELEVISION CAMERA ASSEMBLY

Click here

39. INSPECT REAR WASHER NOZZLE

Click here

40. ADJUST REAR WASHER NOZZLE

Click here
