Toyota Corolla Cross: Installation

Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Exterior / Door / Hatch / Back Door Closer Ecu / Installation

INSTALLATION

CAUTION / NOTICE / HINT

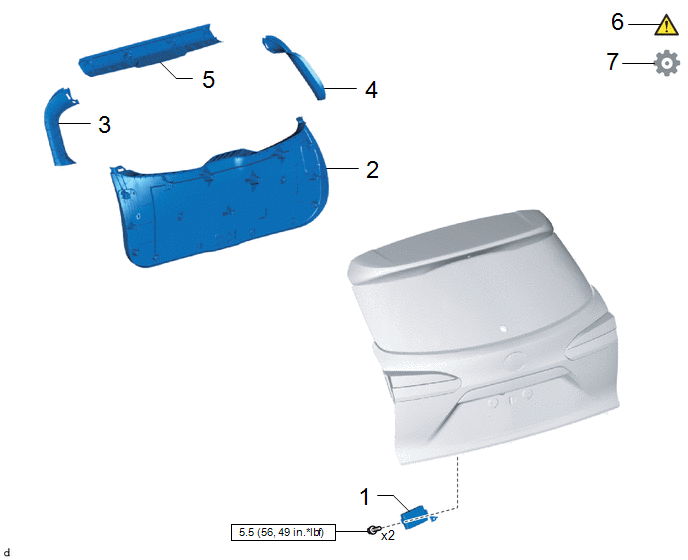

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

MULTIPLEX NETWORK DOOR ECU

89222A

-

-

-

2

BACK DOOR TRIM PANEL ASSEMBLY

64780A

-

-

-

3

BACK DOOR SIDE GARNISH LH

67938A

-

-

-

4

BACK DOOR SIDE GARNISH RH

67937B

-

-

-

5

BACK DOOR TRIM UPPER PANEL ASSEMBLY

64790B

-

-

-

6

INSPECT POWER BACK DOOR SYSTEM

-

-

-

7

INITIALIZE POWER BACK DOOR SYSTEM

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

PROCEDURE

1. INSTALL MULTIPLEX NETWORK DOOR ECU

Torque:

5.5 N·m {56 kgf·cm, 49 in·lbf}

2. INSTALL BACK DOOR TRIM PANEL ASSEMBLY

3. INSTALL BACK DOOR SIDE GARNISH LH

4. INSTALL BACK DOOR SIDE GARNISH RH

5. INSTALL BACK DOOR TRIM UPPER PANEL ASSEMBLY

6. INSPECT POWER BACK DOOR SYSTEM

Click here

7. INITIALIZE POWER BACK DOOR SYSTEM

Click here
