INSTALLATION

CAUTION / NOTICE / HINT

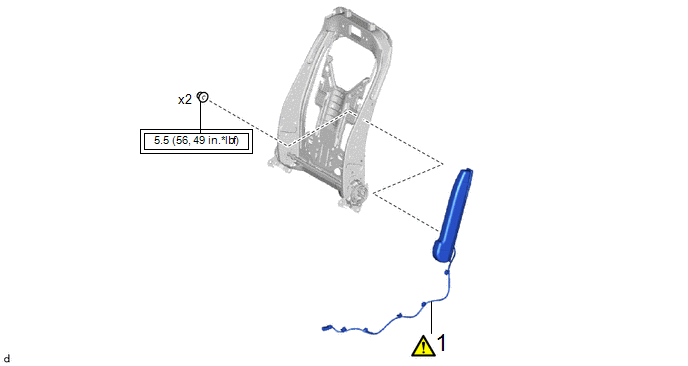

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

FRONT SEAT AIRBAG ASSEMBLY

73920A

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

-

-

Procedure

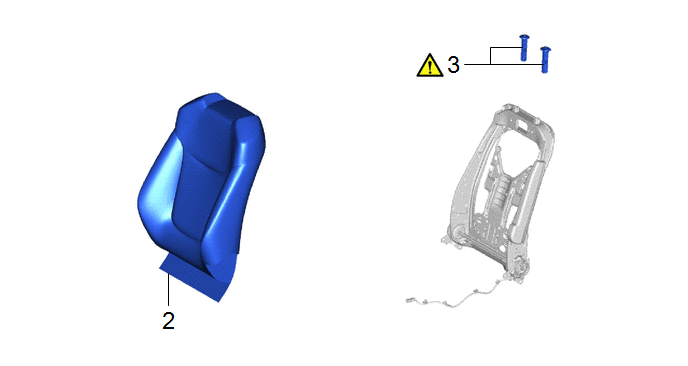

Part Name Code

2

SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

-

-

-

-

3

FRONT SEAT HEADREST SUPPORT

71931

-

-

*A

w/ Heater

-

-

*1

SEPARATE TYPE FRONT SEATBACK PAD

-

-

●

Non-reusable part

-

-

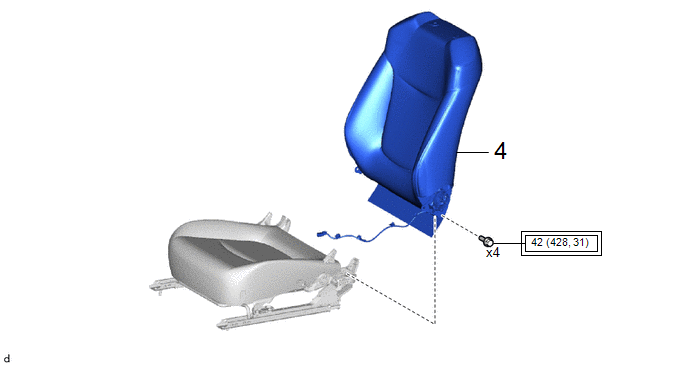

Procedure

Part Name Code

4

SEPARATE TYPE FRONT SEATBACK ASSEMBLY

-

-

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

-

-

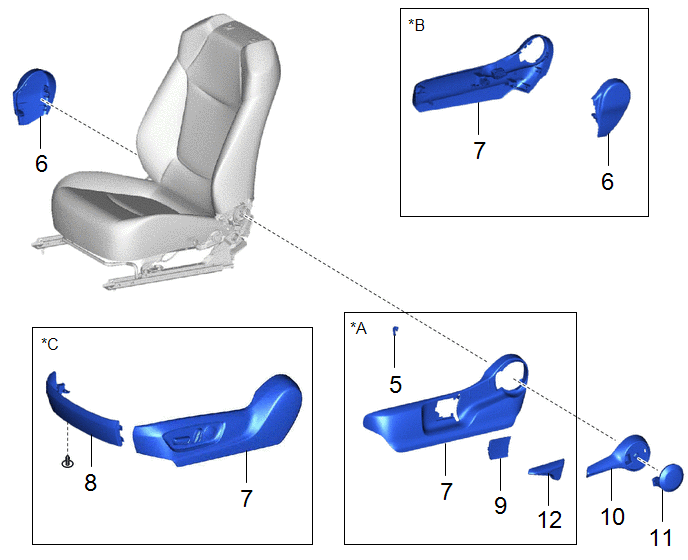

Procedure

Part Name Code

5

VERTICAL ADJUSTER BRACKET COVER

72498B

-

-

-

6

FRONT SEAT INNER CUSHION SHIELD

71862

-

-

-

7

FRONT SEAT CUSHION SHIELD

71812D

-

-

-

8

FRONT SEAT FRONT CUSHION SHIELD

71868N

-

-

-

9

SEAT ADJUSTER COVER CAP

71849

-

-

-

10

RECLINING ADJUSTER RELEASE HANDLE

72526

-

-

-

11

RECLINING HINGE COVER

72552B

-

-

-

12

VERTICAL ADJUSTING HANDLE

72495

-

-

-

*A

for Driver Side Manual Seat

*B

for Front Passenger Seat

*C

for Driver Side Power Seat

-

-

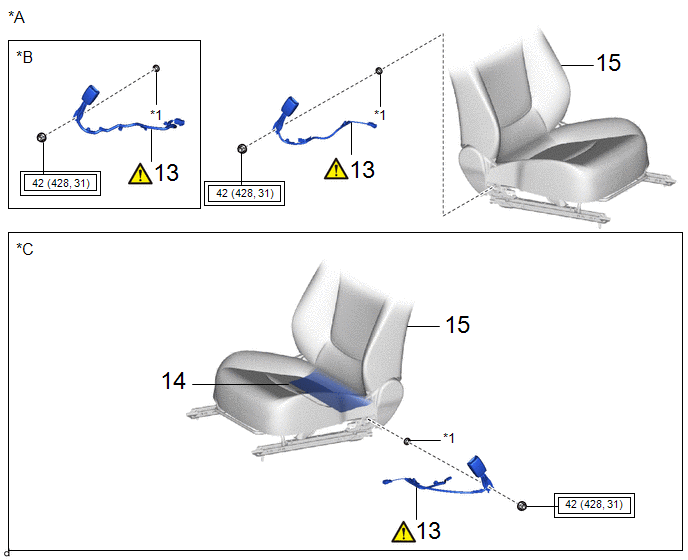

Procedure

Part Name Code

13

FRONT SEAT INNER BELT ASSEMBLY

73240

-

-

14

SEPARATE TYPE FRONT SEATBACK COVER

71074S

-

-

-

15

FRONT SEAT ASSEMBLY

-

-

-

-

*A

for Driver Side Manual Seat

*B

for Driver Side Power Seat

*C

for Front Passenger Seat

-

-

*1

FRONT SEAT BELT ANCHOR PLATE

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

-

-

CAUTION / NOTICE / HINT

CAUTION:

  • Wear protective gloves. Sharp areas on the parts may injure your hands.
  • There is risk of injury.

PROCEDURE

1. INSTALL FRONT SEAT AIRBAG ASSEMBLY

(1) Install the front seat airbag assembly with 2 new nuts.

Torque:

5.5 N·m {56 kgf·cm, 49 in·lbf}

CAUTION:

  • Do not reuse the nut.

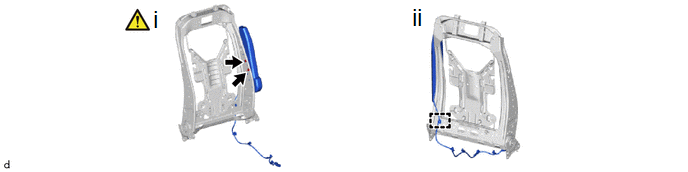

  • If the installation surface or surrounding area of the front seat airbag assembly is deformed or damaged, replace the front seatback frame sub-assembly LH with a new one.

(2) Engage the clamp.

2. INSTALL SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

3. INSTALL FRONT SEAT HEADREST SUPPORT

Click here

4. INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY

  • for Manual Seat:

    Click here

  • for Power Seat:

    Click here

5. INSTALL VERTICAL ADJUSTER BRACKET COVER (for Driver Side Manual Seat)

6. INSTALL FRONT SEAT INNER CUSHION SHIELD (for Driver Side)

7. INSTALL FRONT SEAT CUSHION SHIELD

8. INSTALL FRONT SEAT FRONT CUSHION SHIELD (for Power Seat)

9. INSTALL SEAT ADJUSTER COVER CAP (for Driver Side Manual Seat)

10. INSTALL RECLINING ADJUSTER RELEASE HANDLE

11. INSTALL RECLINING HINGE COVER

12. INSTALL VERTICAL ADJUSTING HANDLE (for Driver Side Manual Seat)

13. INSTALL FRONT SEAT INNER BELT ASSEMBLY

Click here

14. CONNECT SEPARATE TYPE FRONT SEATBACK COVER

15. INSTALL FRONT SEAT ASSEMBLY

  • for Manual Seat:

    Click here

  • for Power Seat:

    Click here
