Toyota Corolla Cross: Removal
REMOVAL
CAUTION / NOTICE / HINT

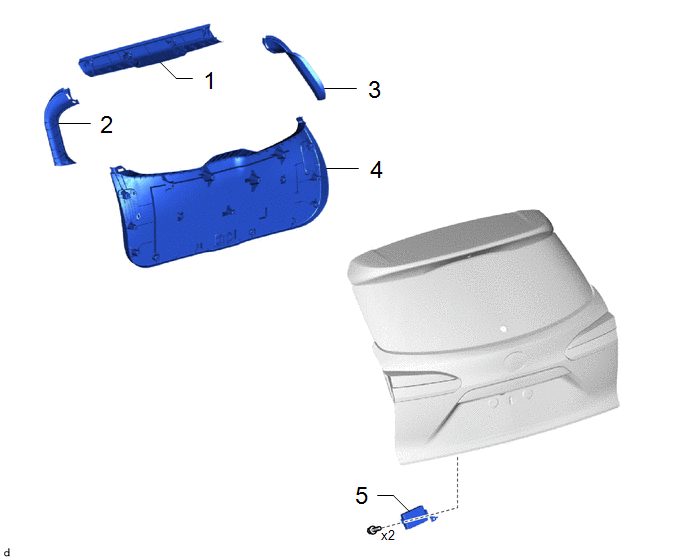

COMPONENTS (REMOVAL)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | BACK DOOR TRIM UPPER PANEL ASSEMBLY |
64790B | - |
- | - |
|
2 | BACK DOOR SIDE GARNISH LH |
67938A | - |
- | - |
|
3 | BACK DOOR SIDE GARNISH RH |
67937B | - |
- | - |
|
4 | BACK DOOR TRIM PANEL ASSEMBLY |
64780A | - |
- | - |
|
5 | MULTIPLEX NETWORK DOOR ECU |
89222A | - |
- | - |
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced multiplex network door ecu removal/installation are shown below.
Necessary Procedures After Parts Removed/Installed/Replaced|
Replaced Part or Performed Procedure |
Necessary Procedures | Effect/Inoperative Function when Necessary Procedure not Performed |
Link |
|---|---|---|---|
| Multiplex network door ECU |
Initialize power back door system |
Power Back Door System |
|
PROCEDURE
1. REMOVE BACK DOOR TRIM UPPER PANEL ASSEMBLY
Click here
.gif)
2. REMOVE BACK DOOR SIDE GARNISH LH
Click here
3. REMOVE BACK DOOR SIDE GARNISH RH
(a) Use the same procedure as for the LH side.
4. REMOVE BACK DOOR TRIM PANEL ASSEMBLY
Click here

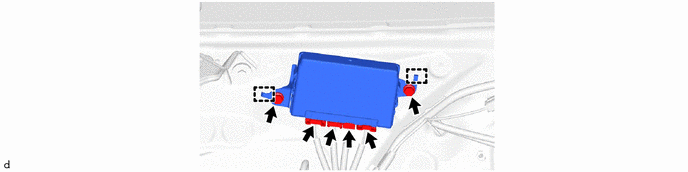

5. REMOVE MULTIPLEX NETWORK DOOR ECU
