PARTS LOCATION

ILLUSTRATION

*A

for Gasoline Model

-

-

*1

REAR DOOR COURTESY LIGHT ASSEMBLY RH

*2

REAR DOOR COURTESY LIGHT ASSEMBLY LH

*3

ECM

-

-

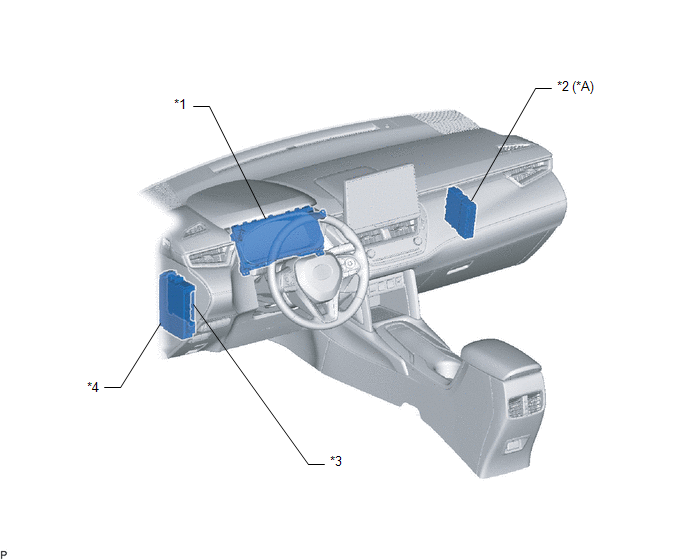

ILLUSTRATION

*A

for HEV Model

-

-

*1

COMBINATION METER ASSEMBLY

*2

HYBRID VEHICLE CONTROL ECU

*3

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*4

POWER DISTRIBUTION BOX ASSEMBLY
