ON-VEHICLE INSPECTION

PROCEDURE

1. INSPECT REAR WIPER MOTOR ASSEMBLY

(a) Operate the rear wiper motor assembly.

(b) Stop the rear wiper motor assembly operation.

(c) Check the automatic stop position.

HINT:

After the rear wiper motor assembly is stopped, check the automatic stop position after lifting the wiper blade 2 times.

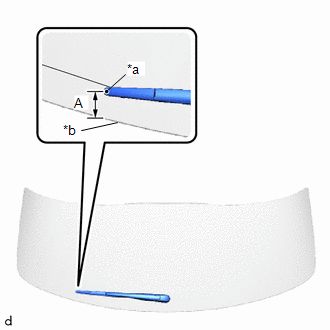

Standard Clearance:

Area

Measurement

A

24.8 to 44.8 mm (0.98 to 1.76 in.)

OK:

The wiper blade stops at the position shown in the illustration.

*a

Wiper Set Mark

*b

Back Door Glass Edge Side
