Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Exterior / Wiper / Washer / Rear Wiper Motor / Inspection

INSPECTION

PROCEDURE

1. INSPECT REAR WIPER MOTOR ASSEMBLY

(a) Check that the rear wiper motor assembly operates.

(1) Apply auxiliary battery voltage to the rear wiper motor connector and check the speed of the rear wiper motor assembly.

OK:

Auxiliary Battery Connection

Specified Condition

U8-4 (B) - Auxiliary battery positive (+)

U8-1 (+1) - Auxiliary battery negative (-)

U8-3 (E) - Auxiliary battery negative (-)

Motor operates

If the result is not as specified, replace the rear wiper motor assembly.

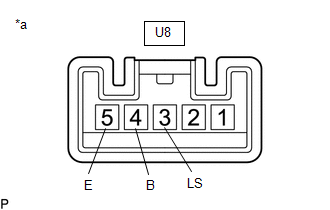

*a

Component without harness connected

(Rear Wiper Motor Assembly)
