Toyota Corolla Cross: Oil And Oil Filter

Toyota Corolla Cross (2022-2024) Service Manual / Engine & Hybrid System / M20a-fxs (lubrication) / Oil And Oil Filter

Components

COMPONENTS

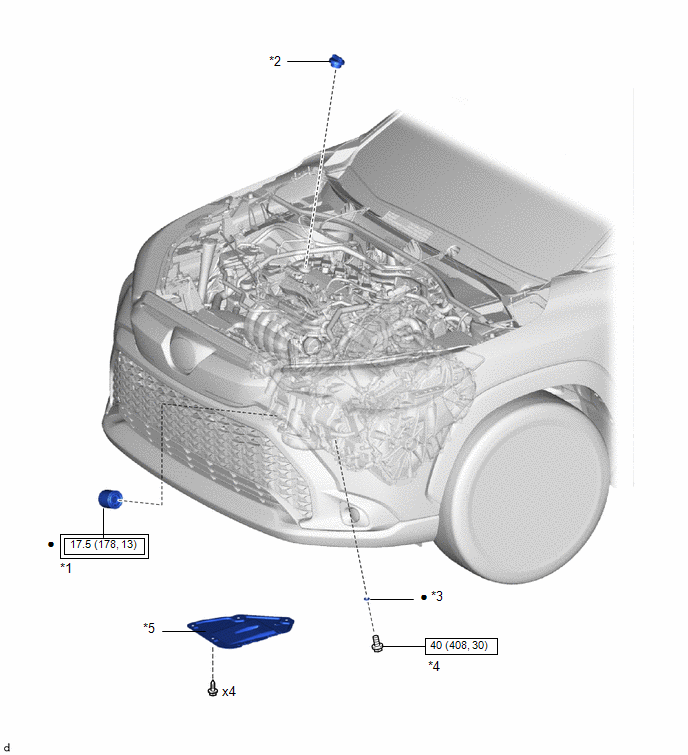

ILLUSTRATION

*1

OIL FILTER SUB-ASSEMBLY

*2

OIL FILLER CAP ASSEMBLY

*3

GASKET

*4

OIL PAN DRAIN PLUG

*5

CENTER NO. 4 ENGINE UNDER COVER

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

-

-
