Toyota Corolla Cross: Reassembly
REASSEMBLY
CAUTION / NOTICE / HINT

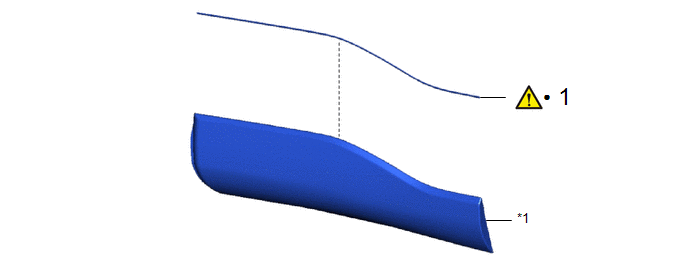

COMPONENTS (REASSEMBLY)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | REAR DOOR OUTSIDE MOULDING UPPER PAD |
75797 |
|
- | - |
.gif)
|
*1 | REAR DOOR OUTSIDE LOWER MOULDING |
- | - |
|
● | Non-reusable part |
- | - |
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. INSTALL REAR DOOR OUTSIDE MOULDING UPPER PAD
|
|
NOTICE: When installing a new rear door outside moulding upper pad, heat the rear door outside lower moulding using a heat light. |
Standard:
|
Item | Temperature |
|---|---|
|
Rear Door Outside Lower Moulding |
20 to 30°C (68 to 86°F) |
CAUTION:
- Do not touch the heat light and heated parts.
- Touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.

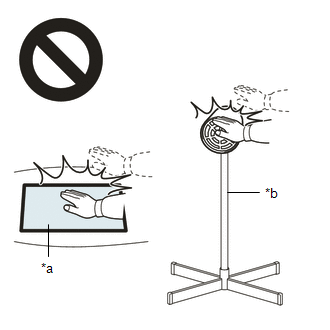

.png)
|
*a | Heated Part |
|
*b | Heat Light |
NOTICE:
Do not heat the rear door outside lower moulding excessively.
|
*a | Location Line |
- | - |
(1) Clean the rear door outside lower moulding.
1. Using a heat light, heat the rear door outside lower moulding surface.
2. Remove any remaining double-sided tape from the rear door outside lower moulding.
3. Wipe off any tape adhesive residue with cleaner.
(2) Install a new rear door outside moulding upper pad.
1. Using a heat light, heat the rear door outside lower moulding.
2. Remove the release paper from the rear door outside moulding upper pad.
HINT:
After removing the release paper, keep the exposed adhesive free from foreign matter.

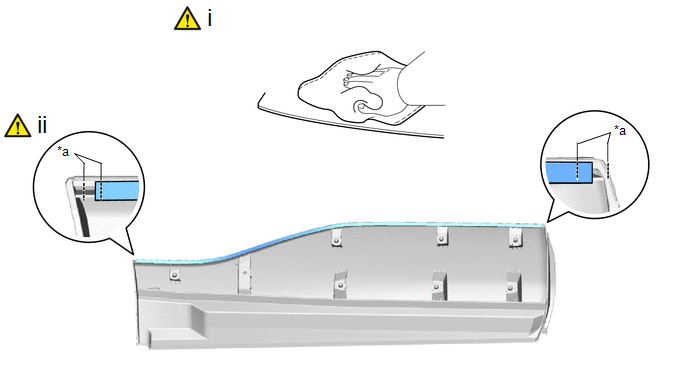

3. Install the rear door outside moulding upper pad as shown in the illustration.
HINT:
- Make sure that the end of the rear door outside moulding upper pad is between the location lines.
- Press the rear door outside moulding upper pad firmly to install it.
