INSPECTION

PROCEDURE

1. INSPECT ENGINE OIL LEVEL SENSOR

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

1 - Engine oil level sensor body

ON

Below 1 Ω

OFF

10 kΩ or higher

If the result is not as specified, replace the engine oil level sensor.

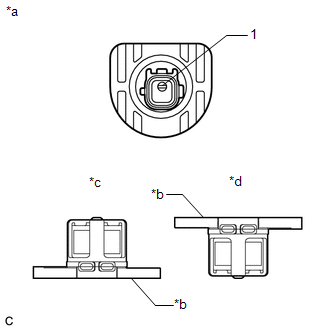

*a

Component without harness connected

(Engine Oil Level Sensor)

*b

Engine Oil Level Sensor Body

*c

ON

*d

OFF
