Toyota Corolla Cross: Removal
REMOVAL
CAUTION / NOTICE / HINT

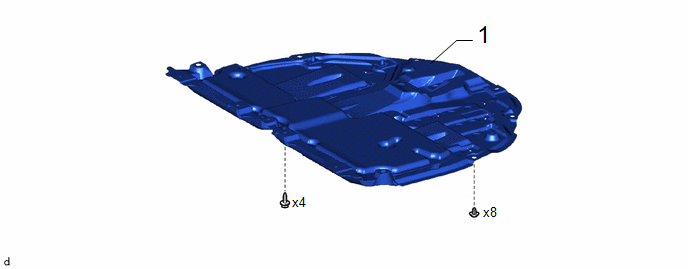

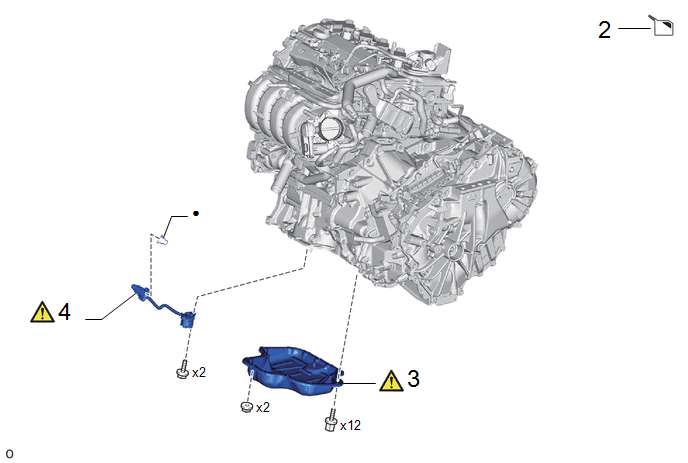

COMPONENTS (REMOVAL)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | NO. 1 ENGINE UNDER COVER ASSEMBLY |
51410 | - |
- | - |
|
Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
|
2 | DRAIN ENGINE OIL |
- | - |
|
- |
| 3 |
OIL PAN SUB-ASSEMBLY |
12101 |
|
- | - |
|
4 | ENGINE OIL LEVEL SENSOR |
89491 |
|
- | - |
|
● | Non-reusable part |
- | - |
CAUTION / NOTICE / HINT
NOTICE:
This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
Click here .gif)
PROCEDURE
1. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY
Click here
2. DRAIN ENGINE OIL
Click here
3. REMOVE OIL PAN SUB-ASSEMBLY
|
|
Click here |
4. REMOVE ENGINE OIL LEVEL SENSOR

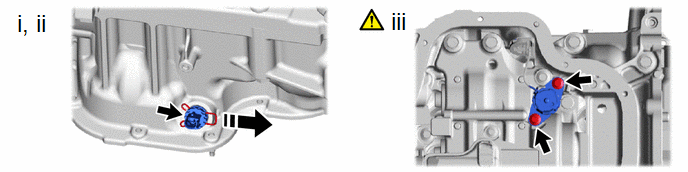

.png) |
Remove in this Direction |
- | - |
(1) Disconnect the engine oil level sensor connector.
(2) Remove the clip from the engine oil level sensor.
(3) Using an 8 mm socket wrench, remove the 2 bolts and engine oil level sensor from the engine balancer assembly.
