Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

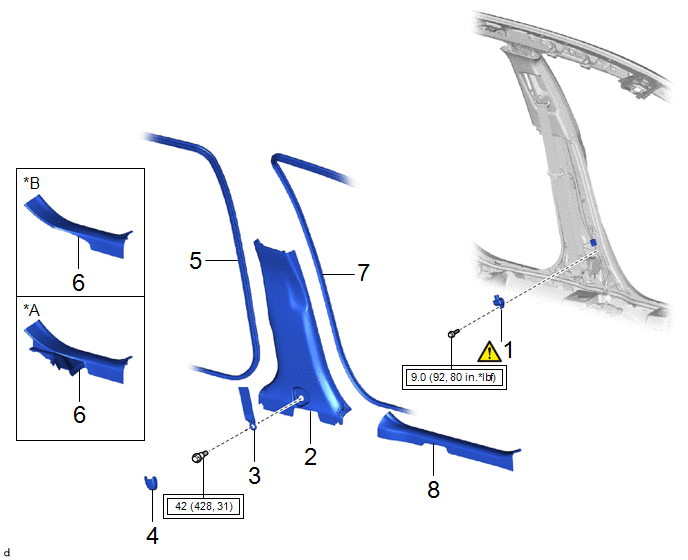

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

SIDE NO. 1 AIRBAG SENSOR

89831

-

-

2

CENTER PILLAR LOWER GARNISH

62413A

-

-

-

3

FRONT SEAT OUTER BELT ASSEMBLY

73210

-

-

-

4

LAP BELT OUTER ANCHOR COVER

73233

-

-

-

5

REAR DOOR OPENING TRIM WEATHERSTRIP

62331A

-

-

-

6

REAR DOOR SCUFF PLATE

67917A

-

-

-

7

FRONT DOOR OPENING TRIM WEATHERSTRIP

62311B

-

-

-

8

FRONT DOOR SCUFF PLATE

67913

-

-

-

*A

for Gasoline Model

*B

for HEV Model

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

-

-

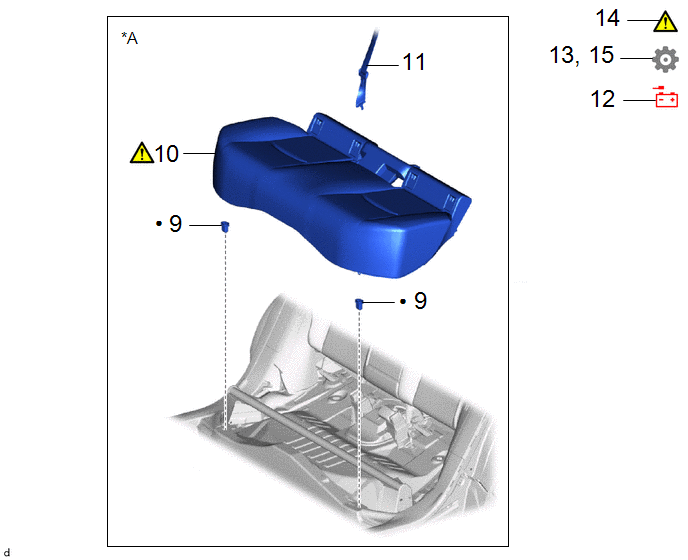

Procedure

Part Name Code

9

REAR SEAT CUSHION LOCK HOOK

72693

-

-

-

10

REAR SEAT CUSHION ASSEMBLY

-

-

-

11

REAR CENTER SEAT OUTER BELT ASSEMBLY

73350C

-

-

-

12

CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

-

-

-

-

13

INSPECT SRS WARNING LIGHT

-

-

-

14

INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

-

-

-

*A

for Gasoline Model

-

-

Non-reusable part

-

-

PROCEDURE

1. INSTALL SIDE NO. 1 AIRBAG SENSOR

*A

w/ Smart Key System

*B

w/o Smart Key System

*a

Illumination off

-

-

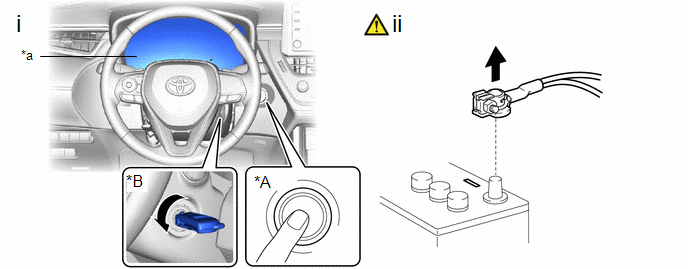

(1) Check that the ignition switch is off.

(2) Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:

  • Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
  • If the airbag deploys for any reason, it may cause a serious accident.

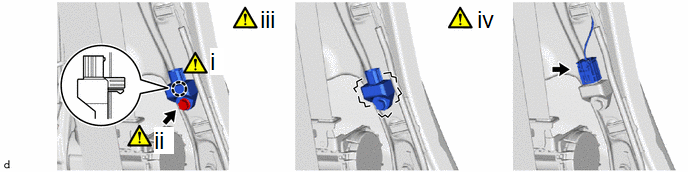

(1) Engage the guide to hold the side No. 1 airbag sensor in place.

NOTICE:

If the side No. 1 airbag sensor has been dropped, replace it with a new one.

(2) Install the bolt.

Torque:

9.0 N·m {92 kgf·cm, 80 in·lbf}

NOTICE:

  • When installing the side No. 1 airbag sensor, be careful that the SRS wiring does not interfere with or is not pinched between other parts.
  • Tighten the bolt while holding the side No. 1 airbag sensor because the side No. 1 airbag sensor guide is easily damaged.

(3) Check that there is no looseness in the installation parts of the side No. 1 airbag sensor.

(4) Connect the airbag connector.

NOTICE:

When connecting any airbag connector, take care not to damage the airbag wire harness.

HINT:

Refer to How to Connect or Disconnect Airbag Connector:

Click here

2. INSTALL CENTER PILLAR LOWER GARNISH

3. CONNECT FRONT SEAT OUTER BELT ASSEMBLY

Click here

4. INSTALL LAP BELT OUTER ANCHOR COVER

5. CONNECT REAR DOOR OPENING TRIM WEATHERSTRIP

6. INSTALL REAR DOOR SCUFF PLATE

7. CONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP

8. INSTALL FRONT DOOR SCUFF PLATE

9. INSTALL REAR SEAT CUSHION LOCK HOOK (for Gasoline Model)

10. INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY (for Gasoline Model)

  • for Gasoline Model

    Click here

  • for HEV Model

    Click here

11. CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY (for Gasoline Model)

12. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

  • for Gasoline Model

    Click here

  • for HEV Model

    Click here

13. INSPECT SRS WARNING LIGHT

Click here

14. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click here
