Toyota Corolla Cross: Installation
INSTALLATION
CAUTION / NOTICE / HINT

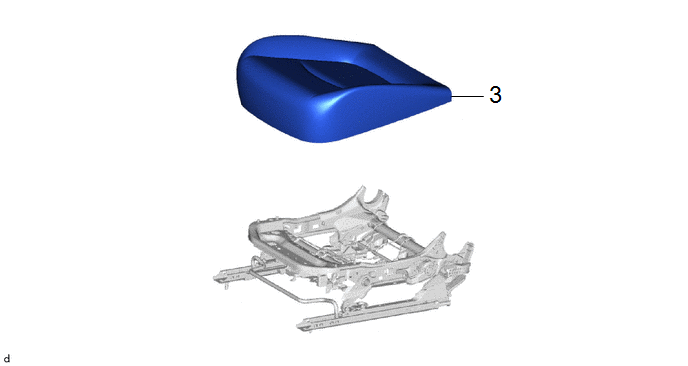

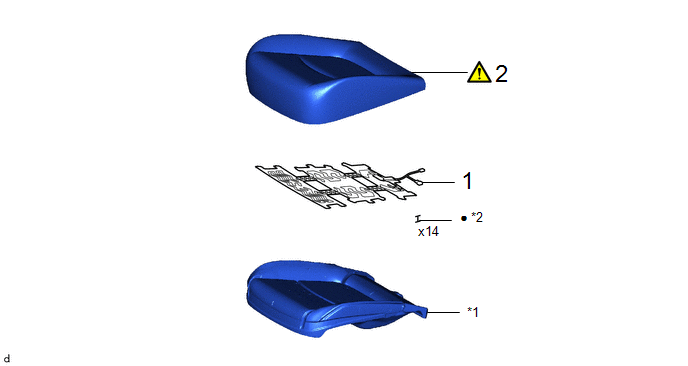

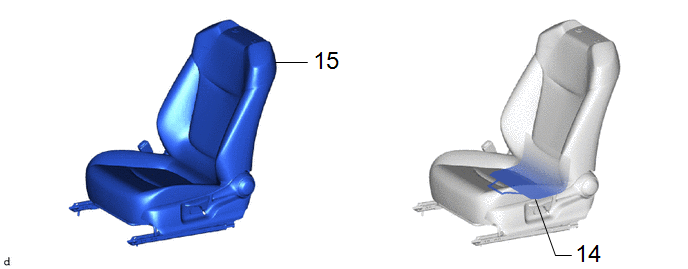

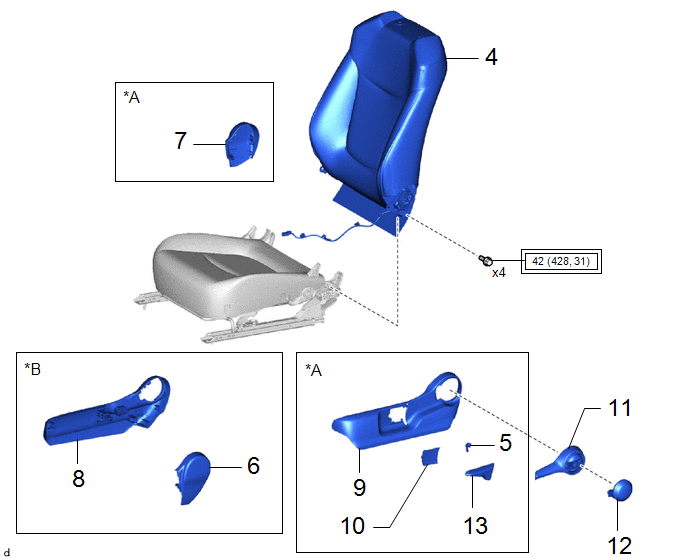

COMPONENTS (INSTALLATION)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | FRONT SEAT CUSHION HEATER ASSEMBLY |
87510N | - |
- | - |
|
2 | SEPARATE TYPE FRONT SEAT CUSHION COVER |
71071S |
|
- | - |
|
*1 | SEPARATE TYPE FRONT SEAT CUSHION PAD |
*2 | TAG PIN |
|
● | Non-reusable part |
- | - |
|
Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
|
3 | SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD |
- | - |
- | - |
|
Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
|
4 | SEPARATE TYPE FRONT SEATBACK ASSEMBLY |
- | - |
- | - |
|
5 | VERTICAL ADJUSTER BRACKET COVER |
72498B | - |
- | - |
|
6 | FRONT SEAT INNER CUSHION SHIELD RH |
71861 | - |
- | - |
|
7 | FRONT SEAT INNER CUSHION SHIELD LH |
71862 | - |
- | - |
|
8 | FRONT SEAT CUSHION SHIELD RH |
71811D | - |
- | - |
|
9 | FRONT SEAT CUSHION SHIELD LH |
71812D | - |
- | - |
|
10 | SEAT ADJUSTER COVER CAP |
71849 | - |
- | - |
|
11 | RECLINING ADJUSTER RELEASE HANDLE |
72526 | - |
- | - |
|
12 | RECLINING HINGE COVER |
72552B | - |
- | - |
|
13 | VERTICAL ADJUSTING HANDLE |
72495 | - |
- | - |
|
*A | for Driver Side |
*B | for Front Passenger Side |
.png) |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |
- | - |
|
Procedure | Part Name Code |
|
|
| |
|---|---|---|---|---|---|
|
14 | SEPARATE TYPE FRONT SEATBACK COVER |
71073S | - |
- | - |
|
15 | FRONT SEAT ASSEMBLY |
- | - |
- | - |
CAUTION / NOTICE / HINT
CAUTION:

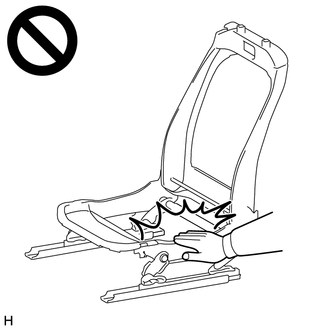

Wear protective gloves. Sharp areas on the parts may injure your hands.
.png)
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. INSTALL FRONT SEAT CUSHION HEATER ASSEMBLY
2. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER
|
|
Click here |
3. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD
4. INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY
5. INSTALL VERTICAL ADJUSTER BRACKET COVER
6. INSTALL FRONT SEAT INNER CUSHION SHIELD (for Front Passenger Side)
7. INSTALL FRONT SEAT INNER CUSHION SHIELD (for Driver Side)
8. INSTALL FRONT SEAT CUSHION SHIELD (for Front Passenger Side)
9. INSTALL FRONT SEAT CUSHION SHIELD (for Driver Side)
10. INSTALL SEAT ADJUSTER COVER CAP
11. INSTALL RECLINING ADJUSTER RELEASE HANDLE
12. INSTALL RECLINING HINGE COVER
13. INSTALL VERTICAL ADJUSTING HANDLE
14. INSTALL SEPARATE TYPE FRONT SEATBACK COVER
15. INSTALL FRONT SEAT ASSEMBLY
Click here
.gif)
READ NEXT:
Removal
REMOVAL CAUTION / NOTICE / HINT COMPONENTS (REMOVAL)
Procedure Part Name Code
1 PRECAUTION
-
- -
2 FRONT SEAT ASSEMBLY
-
Inspection
INSPECTION PROCEDURE 1. INSPECT FRONT SEAT CUSHION HEATER ASSEMBLY LH
(a) Measure the resistance according to the value(s) in the table below.
*a Component without harness connected
