Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

PRECAUTION

-

-

-

2

FRONT SEAT ASSEMBLY

-

-

-

-

3

SEPARATE TYPE FRONT SEATBACK COVER

71073S

-

-

-

Procedure

Part Name Code

4

FRONT SEAT FRONT CUSHION SHIELD

71868N

-

-

-

5

FRONT SEAT CUSHION SHIELD

71812D

-

-

6

FRONT SEAT INNER CUSHION SHIELD

71862

-

-

-

Procedure

Part Name Code

7

SEPARATE TYPE FRONT SEATBACK ASSEMBLY

-

-

-

-

Procedure

Part Name Code

8

SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

-

-

-

-

Procedure

Part Name Code

9

SEPARATE TYPE FRONT SEAT CUSHION COVER

71071S

-

-

-

10

FRONT SEAT CUSHION HEATER ASSEMBLY

87510N

-

-

-

*1

SEPARATE TYPE FRONT SEAT CUSHION PAD

*2

TAG PIN

Non-reusable part

-

-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front seat cushion heater assembly removal/installation are shown below.

CAUTION:

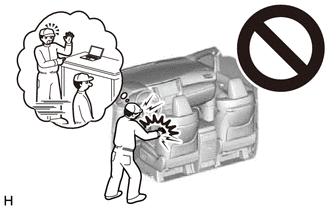

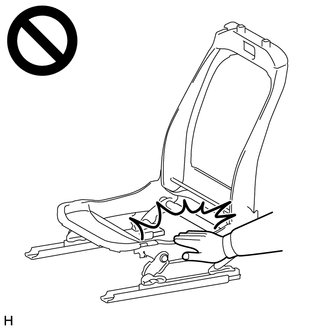

Wear protective gloves. Sharp areas on the parts may injure your hands.

HINT:

  • When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
    • Learning completes when vehicle is driven

      Effect / Inoperative Function When Necessary Procedures are not Performed

      Necessary Procedures

      Link

      *A: for Gasoline Model

      Front Camera System

      Drivre the vehicle straight ahead at 15 km/h (10mph) or more for 1 second or more.

      Stop and start system *A

      Drive the vehicle until stop and start control is permitted (appoximately 5 to 60 minutes)

    • Learning completes when vehicle is operated normally

      Effect / Inoperative Function When Necessary Procedures are not Performed

      Necessary Procedures

      Link

      Power door lock control system

      • Back door opener

      Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

      Power back door system

      Fully close the back door by hand.

      HINT:

      Initialization is not necessary if the above procedures are performed while the back door is closed.

      Air conditioning system

      After the ignition switch is turned to ON, the servo motor standard position is recognized.

      -

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. PRECAUTION

CAUTION:

Be sure to read Precaution thoroughly before servicing.

NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click here

2. REMOVE FRONT SEAT ASSEMBLY

Click here

3. DISCONNECT SEPARATE TYPE FRONT SEATBACK COVER

Click here

4. REMOVE FRONT SEAT FRONT CUSHION SHIELD

Click here

5. REMOVE FRONT SEAT CUSHION SHIELD

Click here

6. REMOVE FRONT SEAT INNER CUSHION SHIELD

Click here

7. REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY

Click here

8. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

Click here

9. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER

Click here

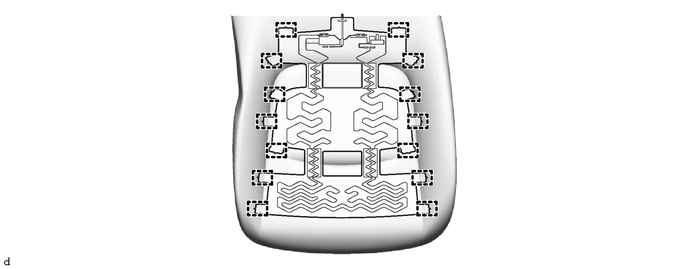

10. REMOVE FRONT SEAT CUSHION HEATER ASSEMBLY
