Toyota Corolla Cross (2022-2025) Service Manual / Vehicle Interior / Seat / Front Seat Cushion Heater (for Power Seat) / Inspection

INSPECTION

PROCEDURE

1. INSPECT FRONT SEAT CUSHION HEATER ASSEMBLY LH

(a) Measure the resistance according to the value(s) in the table below.

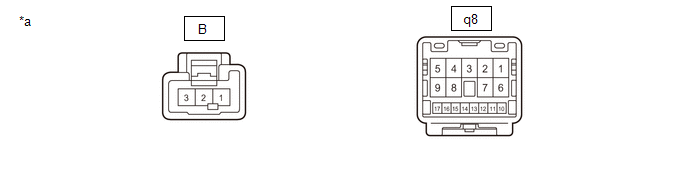

*a

Component without harness connected

(Front Seat Cushion Heater Assembly LH)

-

-

Standard Resistance:

Tester Connection

Condition

Specified Condition

B-1 - q8-5

Seat heater temperature 20°C (68°F)

2.9 to 3.4 Ω

B-2 - q8-7

Seat heater temperature 20°C (68°F)

1.6 to 1.9 Ω

If the result is not as specified, replace the front seat cushion heater assembly LH.
