Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

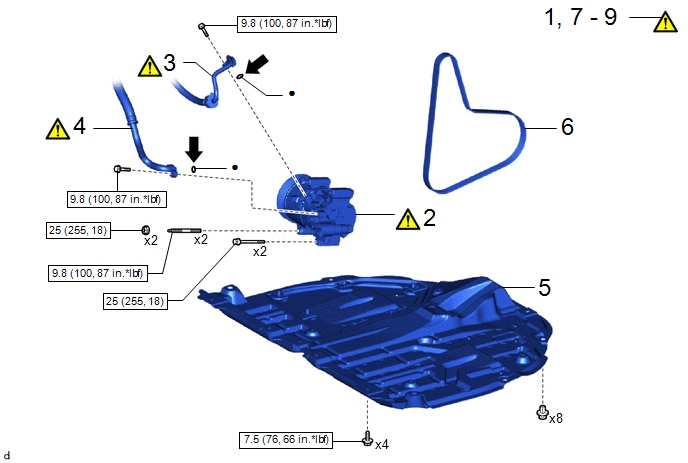

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

ADJUST COMPRESSOR OIL

-

-

-

2

COMPRESSOR ASSEMBLY WITH PULLEY

88310

-

-

3

DISCHARGE HOSE SUB-ASSEMBLY

88703

-

-

4

SUCTION HOSE SUB-ASSEMBLY

88704

-

-

5

NO. 1 ENGINE UNDER COVER ASSEMBLY

51410

-

-

-

6

FAN AND GENERATOR V BELT

16361A

-

-

-

7

CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT

-

-

-

8

WARM UP ENGINE

-

-

-

9

INSPECT FOR REFRIGERANT LEAK

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

Compressor oil ND-OIL 12 or equivalent

-

-

PROCEDURE

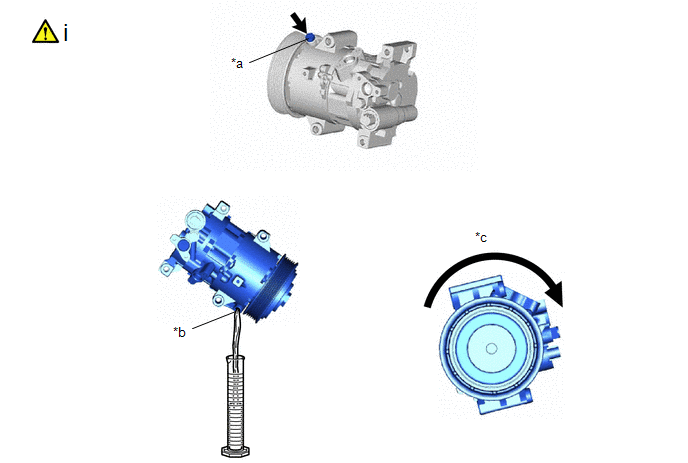

1. ADJUST COMPRESSOR OIL

*a

Drain Bolt (Seal Washer)

*b

Oil Port

*c

Turn Clockwise

-

-

(1) When replacing the compressor assembly with pulley with a new one, gradually discharge the inert gas (helium) from the service valve, and drain the following amount of oil before installation.

NOTICE:

  • If a new compressor assembly with pulley is installed without removing the same amount of compressor oil as is remaining in the pipes, the amount of compressor oil will be excessive. This prevents heat exchange in the refrigerant cycle and will cause the air conditioning system to malfunction.
  • A certain amount of compressor oil remains in the compressor assembly with pulley during circulation and the compressor may be damaged if the amount of compressor oil is more/less than this amount. Therefore, make sure to adjust the amount of compressor oil correctly.
  • If the amount of compressor oil remaining in the removed compressor assembly with pulley is excessively low, check for compressor oil leaks.
  • Do not race the engine before replacing the compressor assembly with pulley.
  • Make sure to use ND-OIL 12 or equivalent compressor oil.

1. Remove the drain bolt (seal washer) from the removed compressor assembly with pulley.

2. Drain the compressor oil from the oil port of the removed compressor assembly with pulley as shown in the illustration.

NOTICE:

Make sure to drain the compressor oil from the oil port.

3. Remove the drain bolt (seal washer) from a new compressor assembly with pulley.

NOTICE:

The drain bolt (seal washer) can be reused.

4. Drain the following amount of compressor oil from the oil port of the new compressor assembly with pulley as shown in the illustration.

Standard:

(The amount of oil in a new compressor assembly with pulley: 70 (+15) cc (2.37 (+0.51) fl.oz)) - (The amount of oil in the removed compressor assembly with pulley) = The amount of oil to be removed from the new compressor assembly with pulley.

NOTICE:

  • Make sure to drain the compressor oil from the oil port.
  • Make sure to add the compressor oil from the oil port, not from the discharge or intake port.
  • If a tool is used to add compressor oil to the new compressor assembly with pulley, make sure that it is free of foreign matter.
  • If the amount of compressor oil remaining in the removed compressor assembly with pulley cannot be estimated because the compressor was damaged and oil was discharged due to a frontal collision, etc., install a new compressor assembly with pulley without removing any oil. If the cooler condenser assembly is also replaced, do not add the specified amount of compressor oil for cooler condenser assembly replacement (40 cc (1.35 fl.oz)).

5. Install the drain bolt (seal washer) to the new compressor assembly with pulley.

Torque:

30 N·m {306 kgf·cm, 22 ft·lbf}

NOTICE:

Make sure that there is no damage or foreign matter on the seal washer edge.

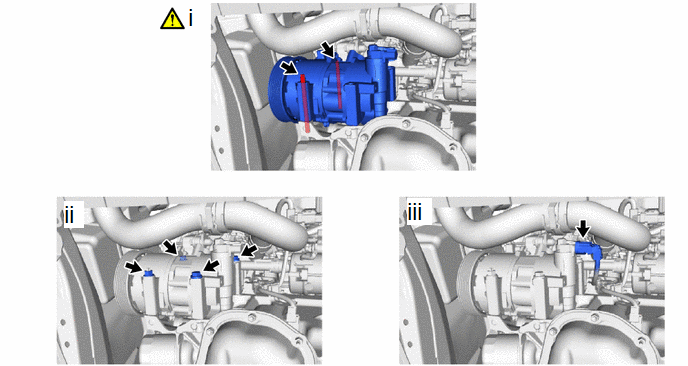

2. INSTALL COMPRESSOR ASSEMBLY WITH PULLEY

(1) Using an E8 "TORX" socket wrench, temporarily install the compressor assembly with pulley with the 2 stud bolts.

Torque:

9.8 N·m {100 kgf·cm, 87 in·lbf}

(2) Install the compressor assembly with pulley with the 2 bolts and 2 nuts.

Torque:

25 N·m {255 kgf·cm, 18 ft·lbf}

(3) Connect the connector.

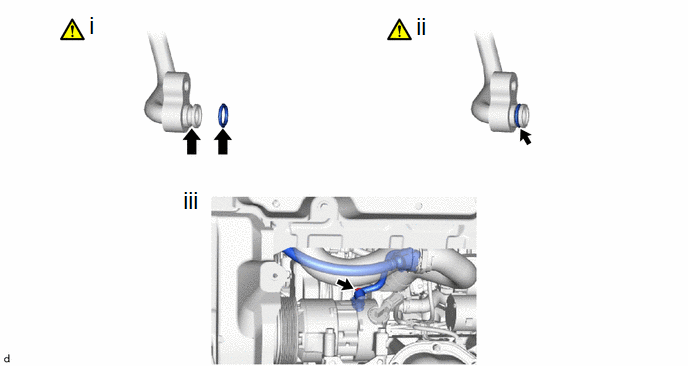

3. CONNECT DISCHARGE HOSE SUB-ASSEMBLY

(1) Remove the vinyl tape from the discharge hose sub-assembly and sufficiently apply compressor oil to a new O-ring and the fitting surface of the compressor assembly with pulley.

Compressor Oil:

ND-OIL 12 or equivalent

(2) Install the O-ring to the discharge hose sub-assembly.

NOTICE:

Keep the O-ring and O-ring fitting surface free of foreign matter.

(3) Connect the discharge hose sub-assembly to the compressor assembly with pulley with the bolt.

Torque:

9.8 N·m {100 kgf·cm, 87 in·lbf}

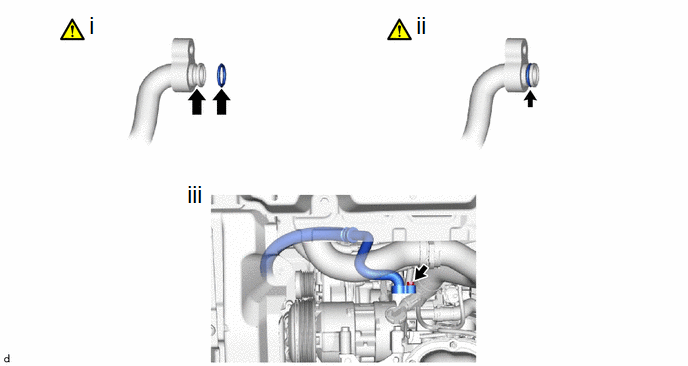

4. CONNECT SUCTION HOSE SUB-ASSEMBLY

(1) Remove the vinyl tape from the suction hose sub-assembly and sufficiently apply compressor oil to a new O-ring and the fitting surface of the compressor assembly with pulley.

Compressor Oil:

ND-OIL 12 or equivalent

(2) Install the O-ring to the suction hose sub-assembly.

NOTICE:

Keep the O-ring and O-ring fitting surface free of foreign matter.

(3) Connect the suction hose sub-assembly to the compressor assembly with pulley with the bolt.

Torque:

9.8 N·m {100 kgf·cm, 87 in·lbf}

5. INSTALL NO. 1 ENGINE UNDER COVER ASSEMBLY

6. INSTALL FAN AND GENERATOR V BELT

Click here

7. CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT

Click here

8. WARM UP ENGINE

Click here

9. INSPECT FOR REFRIGERANT LEAK

Click here
